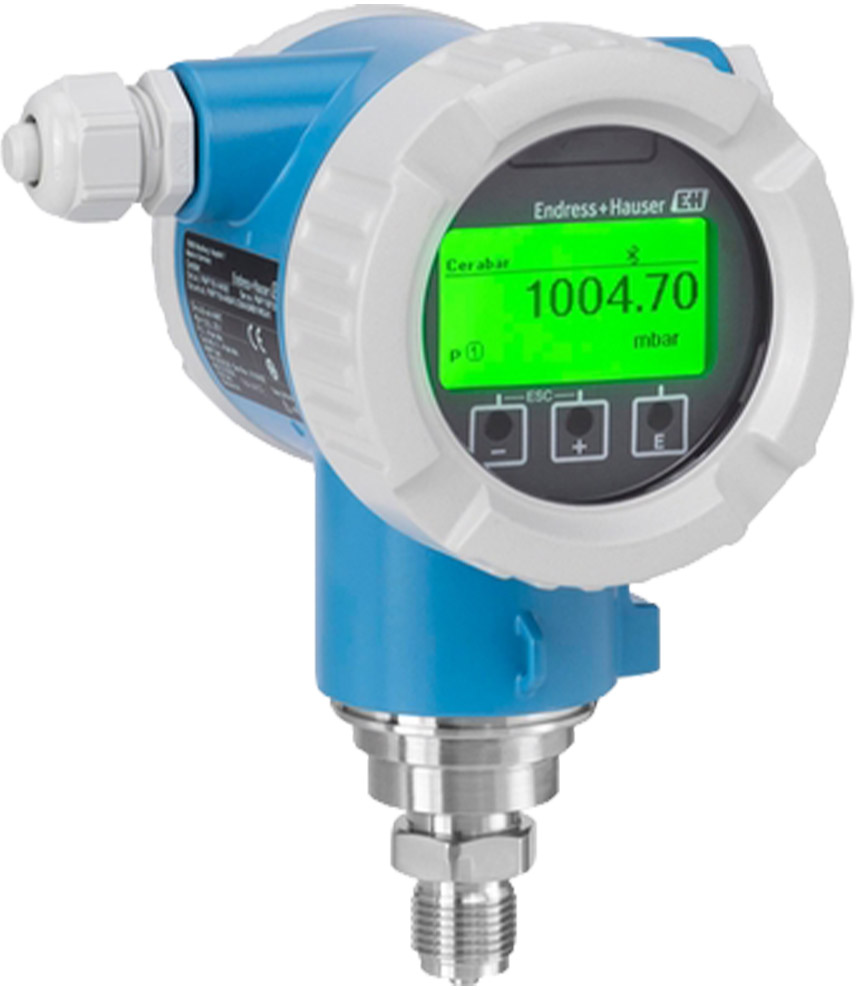

E+H Cerabar PMP71B Pressure Transmitter
Digital transmitter for processing pressure and level measurement in liquids or gases.
Starting at
$2,035.94
Manufactured
- By Endress+Hauser
- Made in the USA
Includes
Availability
-
Manufacturer has some models in stock. View available part numbers.
Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Call 1-800-884-4967 or email sales@instrumart.com. Open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Overview
Features
- Pressure measuring ranges up to 700bar (10,500psi)
- Process temperatures up to 400°C (752°F) with diaphragm seal
- Standard Accuracy: up to 0.05%
- Platinum Accuracy (optional): up to 0.025%
- 4 to 20mA with HART communication protocol
- Bluetooth optional for remote connectivity and commissioning
- Heartbeat optional for verification/detecting process anomalies
- Backlight changes from green to red in the event of an alarm
- Available with diaphragm seals
- Compact diaphragm
- Temperature isolator diaphragm
- Diaphragm with capillary
Description
The E+H Cerabar PMP71B pressure transmitter introduces a robust design with metal process isolating diaphragm that combines easy local or remote operation and condition-based maintenance and offers smart safety in processes.
The software is designed to simplify the handling with intuitive and clear wizard navigation that guides the user through the commissioning and verification of the device. The Bluetooth connectivity provides a safe and remote operation. The large display with backlight guarantees excellent readability. Heartbeat Technology offers an on-demand verification and monitoring function to detect unwanted anomalies, including dynamic pressure shocks or changes in the supply voltage.
Documents
Spec Sheets
Manuals
Other
- E+H Cerabar PMP71B Pressure Transmitter Brochure PDF (604 KB)
- E+H Mechanical Accessories for Pressure Measuring Devices (2.7 MB)
Links
In Stock
Manufacturer Stock
This stock is typically available to ship in 2 - 4 working days
| Part Number | Pressure Type | Sensor Range | Process Connection | Membrane Material and Application | Price | Available | |
|---|---|---|---|---|---|---|---|
|
PMP71B-CDBAFBH6AA3SJA1VWJA1JAQ1 |
Gauge
|
600psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,302.49 | 47 in stock | |
|
PMP71B-AABADJH6BD3PJAAADJG2Q1 |
Gauge
|
150psi
|
NPS 2" Cl.150, 316/316L
|
316L, TempC; diaphragm seal
|
$2,961.86 | 42 in stock | |
|
PMP71B-AABAEJH6AA3HFA1VXJA1 |
Gauge
|
15psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$1,938.12 | 15 in stock | |
|
PMP71B-AABAEJH6AA3UJA1VWJA1AAF1I7JA |
Gauge
|
1500psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,378.54 | 10 in stock | |
|
PMP71B-AABAEJH6AA3SJA1VWJA1AAF1I7JA |
Gauge
|
600psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,378.54 | 9 in stock | |
|
PMP71B-AABADJH6AA3UFA1VNJA1I7JAQ1 |
Gauge
|
1500psi
|
FNPT1/2, 316L
|
316L; standard
|
$2,189.35 | 8 in stock | |
|
PMP71B-CCBAEJH8AA3HFA1VNJA1 |
Absolute
|
15psi
|
FNPT1/2, 316L
|
316L; standard
|
$1,977.58 | 8 in stock | |
|
PMP71B-CDBAEBH6AA3SFA2VHJA1AA |
Gauge
|
600psi
|
MNPT3/4, 316L, flush mount
|
316L; standard
|
$1,994.58 | 7 in stock | |
|
PMP71B-AABAAJH6BD3HJAAADJJ2Q1 |
Gauge
|
15psi
|
NPS 2" Cl.150, 316/316L
|
Tantalum; diaphragm seal
|
$3,548.25 | 5 in stock | |
|
PMP71B-CCBAEJH6AA3MFA1VNJA1 |
Gauge
|
60psi
|
FNPT1/2, 316L
|
316L; standard
|
$1,977.58 | 5 in stock | |
|
PMP71B-CDBAEBH6AA3SFA2VHJA1 |
Gauge
|
600psi
|
MNPT3/4, 316L, flush mount
|
316L; standard
|
$1,994.58 | 5 in stock | |
|
PMP71B-CDBAEBH8AA3FFA1VXJA1 |
Absolute
|
6psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$1,940.62 | 5 in stock | |
|
PMP71B-AABAEBH6AA3PFA1VNJA1EH |
Gauge
|
150psi
|
FNPT1/2, 316L
|
316L; standard
|
$2,004.85 | 4 in stock | |
|
PMP71B-AABAEJH6AA3PFA1VXJA1F1NLQ3 |
Gauge
|
150psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$2,492.01 | 4 in stock | |
|
PMP71B-BBBAEJH6AA3PJA1VWJA1JBLA |
Gauge
|
150psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,226.44 | 4 in stock | |
|
PMP71B-BBBAEJH6AA3SJA1VWJA1JBLA |
Gauge
|
600psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,226.44 | 4 in stock | |
|
PMP71B-BBBAEJH6AA3UJA1VWJA1JBLA |
Gauge
|
1500psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,226.44 | 4 in stock | |
|
PMP71B-CDBAEJH8AA3KJA1VXJA1 |
Absolute
|
30psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$2,118.76 | 4 in stock | |
|
PMP71B-AABAEJH6AA3MJA1VWJA1NLQ1 |
Gauge
|
60psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,390.32 | 3 in stock | |
|
PMP71B-AABAEJH6AA3PJA1VWJA1AAF1I7JA |
Gauge
|
150psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,378.54 | 3 in stock | |
|
PMP71B-AABAFJH6BD3KJAAAAJG7EH |
Gauge
|
30psi
|
NPS 1" Cl.150, 316/316L
|
316L, TempC; diaphragm seal
|
$3,025.62 | 3 in stock | |
|
PMP71B-BBBAEJH8AA3SJA1VWJA1JBLA |
Absolute
|
600psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,226.44 | 3 in stock | |
|
PMP71B-AABAAJH6AA3FJA1VWJA1NLQ1 |
Gauge
|
6psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,187.94 | 2 in stock | |
|
PMP71B-AABAEJH6AA3MFA1VWJA1NLQ1 |
Gauge
|
60psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,318.98 | 2 in stock | |
|
PMP71B-AABAEKH6AA3PFAAADJA1 |
Gauge
|
150psi
|
NPS 2" Cl.150, 316/316L
|
316L; standard
|
$2,958.65 | 2 in stock | |
|
PMP71B-AABAFBH6AA3MEA1VXJA1PL |
Gauge
|
60psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$2,082.56 | 2 in stock | |
|
PMP71B-AABAFJH6BD3FJAAADJJ2Q1 |
Gauge
|
6psi
|
NPS 2" Cl.150, 316/316L
|
Tantalum; diaphragm seal
|
$3,808.47 | 2 in stock | |
|
PMP71B-AABAFJH6BD3HJAAAFJG7EH |
Gauge
|
15psi
|
NPS 3" Cl.150, 316/316L
|
316L, TempC; diaphragm seal
|
$3,407.90 | 2 in stock | |
|
PMP71B-AABAFJH6BD3PJAAAAJG7EH |
Gauge
|
150psi
|
NPS 1" Cl.150, 316/316L
|
316L, TempC; diaphragm seal
|
$3,025.62 | 2 in stock | |
|
PMP71B-BBBAEJH6AA3WJA1VWJA1JBLA |
Gauge
|
6000psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,265.79 | 2 in stock | |
|
PMP71B-CCBAAJH6AA3HJA1VXCB1 |
Gauge
|
15psi
|
MNPT1/2 FNPT1/4, AlloyC276
|
AlloyC276; standard
|
$2,380.60 | 2 in stock | |
|
PMP71B-CCBAEJH6AA3MFA1VWJA1 |
Gauge
|
60psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$1,977.58 | 2 in stock | |
|
PMP71B-CCBAEJH6AA3PFA1VXJA1MA |
Gauge
|
150psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$2,335.85 | 2 in stock | |
|
PMP71B-CCBAEJH8AA3HFA1VWJA1 |
Absolute
|
15psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$1,977.58 | 2 in stock | |
|
PMP71B-CCBAFJH6AA3FJA1VWJA1 |
Gauge
|
6psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,106.76 | 2 in stock | |
|
PMP71B-CDBAAJH6AA3MFA1VWJA1NLQ1 |
Gauge
|
60psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,225.90 | 2 in stock | |
|
PMP71B-CDBAEJH6AA3KFA1VXJA1NQ |
Gauge
|
30psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$2,354.12 | 2 in stock | |
|
PMP71B-AABAAJH6AA3SJA1VWJA1NLQ1 |
Gauge
|
600psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,187.94 | 1 in stock | |
|
PMP71B-AABAAJH6BD3FJAAADJJ2Q1 |
Gauge
|
6psi
|
NPS 2" Cl.150, 316/316L
|
Tantalum; diaphragm seal
|
$3,548.25 | 1 in stock | |
|
PMP71B-AABAAKH6AA3XFA1VWJA1 |
Gauge
|
10500psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,705.70 | 1 in stock | |
|
PMP71B-AABACJH6AA3PJA1VXJA1FA |
Gauge
|
150psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$2,116.26 | 1 in stock | |
|
PMP71B-AABADBH6AA3PJA2VHJA1EHMCQ1 |
Gauge
|
150psi
|
MNPT3/4, 316L, flush mount
|
316L; standard
|
$2,693.86 | 1 in stock | |
|
PMP71B-AABAEBH6AA3PFA1VXJA1 |
Gauge
|
150psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$1,831.32 | 1 in stock | |
|
PMP71B-AABAEJH6AA3PFA1VWJA1NLQ1 |
Gauge
|
150psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,318.98 | 1 in stock | |
|
PMP71B-AABAEJH6AA3SJA1VWJA1F1KBNLQ1 |
Gauge
|
600psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,751.83 | 1 in stock | |
|
PMP71B-AABAEJH6AA3SJA1VWJA1NLQ1 |
Gauge
|
600psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,390.32 | 1 in stock | |
|
PMP71B-AABAFBH6AA3PJA1VXJA1 |
Gauge
|
150psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$1,960.50 | 1 in stock | |
|
PMP71B-AABAFJH6AA3KJA1VXJA1EHNL |
Gauge
|
30psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$2,536.66 | 1 in stock | |
|
PMP71B-AABAFJH6AA3PJA1VXJA1EHNL |
Gauge
|
150psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$2,536.66 | 1 in stock | |
|
PMP71B-AABAFJH6BD3HJAAAFJG7EHF1 |
Gauge
|
15psi
|
NPS 3" Cl.150, 316/316L
|
316L, TempC; diaphragm seal
|
$3,580.93 | 1 in stock | |
|
PMP71B-AABAFJH6BD3MJAAAAJG7EH |
Gauge
|
60psi
|
NPS 1" Cl.150, 316/316L
|
316L, TempC; diaphragm seal
|
$3,025.62 | 1 in stock | |
|
PMP71B-AABAFJH6BD3UJAAAXJF7EH |
Gauge
|
1500psi
|
NPS 1" Cl.400/600, 316/316L
|
316L; diaphragm seal
|
$3,298.83 | 1 in stock | |
|
PMP71B-C1BAEJH6AA3PJA1VWJA1F1PL |
Gauge
|
150psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,485.19 | 1 in stock | |
|
PMP71B-C1BAEJH6BD3SJAAAMJG2 |
Gauge
|
600psi
|
NPS 1" Cl.300, 316/316L
|
316L, TempC; diaphragm seal
|
$3,072.20 | 1 in stock | |
|
PMP71B-C1BAEKH6AA3FJA1VWJA1EHNLQ3 |
Gauge
|
6psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$3,288.93 | 1 in stock | |
|
PMP71B-C1BAFJH6BD3MJAAAAJG7EHF1JALA |
Gauge
|
60psi
|
NPS 1" Cl.150, 316/316L
|
316L, TempC; diaphragm seal
|
$3,578.13 | 1 in stock | |
|
PMP71B-CABAEJH6AA3PFA1VXJA1 |
Gauge
|
150psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$1,938.12 | 1 in stock | |
|
PMP71B-CABAFBH6AA3KEA1VXJA1AANL |
Gauge
|
30psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$2,184.99 | 1 in stock | |
|
PMP71B-CBBAFJH6AA3PFA1VWJA1NP |
Gauge
|
150psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,342.12 | 1 in stock | |
|
PMP71B-CBBAFJH6BD3SJAAADJH2 |
Gauge
|
600psi
|
NPS 2" Cl.150, 316/316L
|
AlloyC276; diaphragm seal, flange
|
$3,679.13 | 1 in stock | |
|
PMP71B-CCBAAJH6AA3KJA1VXJA1 |
Gauge
|
30psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$1,846.54 | 1 in stock | |
|
PMP71B-CCBAFBH6AA3FJAAAFJA1 |
Gauge
|
6psi
|
NPS 3" Cl.150, 316/316L
|
316L; standard
|
$2,674.56 | 1 in stock | |
|
PMP71B-CCBAFBH6AA3PJA1VXJA1EH |
Gauge
|
150psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$2,173.49 | 1 in stock | |
|
PMP71B-CCBAFJH6AA3UFA1VXJA1AA |
Gauge
|
1500psi
|
MNPT1/2 FNPT1/4, 316L
|
316L; standard
|
$2,035.42 | 1 in stock | |
|
PMP71B-CDBAAJH6AA3PFA1VWJA1NLQ1 |
Gauge
|
150psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,225.90 | 1 in stock | |
|
PMP71B-CDBAAJH6AA3PJA1VWJA1NLQ1 |
Gauge
|
150psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,297.24 | 1 in stock | |
|
PMP71B-CDBAAJH6AA3SJA1VWJA1F1KBNLQ1 |
Gauge
|
600psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,658.75 | 1 in stock | |
|
PMP71B-CDBAAJH6AA3SJA1VWJA1NLQ1 |
Gauge
|
600psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,297.24 | 1 in stock | |
|
PMP71B-CDBADBH6AA3PFA1VWCB1QF |
Gauge
|
150psi
|
MNPT1/2, hole 11.4mm, AlloyC276
|
AlloyC276; standard
|
$3,638.96 | 1 in stock | |
|
PMP71B-CDBAEJH6AA3PJA1VXCB1 |
Gauge
|
150psi
|
MNPT1/2 FNPT1/4, AlloyC276
|
AlloyC276; standard
|
$2,652.82 | 1 in stock | |
|
PMP71B-CDBAEJH6AA3SJA1VWJA1Q1 |
Gauge
|
600psi
|
MNPT1/2, hole 11.4mm, 316L
|
316L; standard
|
$2,203.79 | 1 in stock | |
|
PMP71B-CDBAEJH6BD3SJAAADJG7F1HA |
Gauge
|
600psi
|
NPS 2" Cl.150, 316/316L
|
316L, TempC; diaphragm seal
|
$3,331.73 | 1 in stock | |
|
PMP71B-CDBAFBH6BD3FJAAAAJG2CAEH |
Gauge
|
6psi
|
NPS 1" Cl.150, 316/316L
|
316L, TempC; diaphragm seal
|
$3,251.86 | 1 in stock | |
Configuration for PMP71B-CDBAFBH6AA3SJA1VWJA1JAQ1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- Inspection certificate 3.1, EN10204 (material cert. wetted metallic parts) (+$147.66)
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABADJH6BD3PJAAADJG2Q1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Segment display w/o buttons + Bluetooth (+$172.53)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 2" Cl.150, 316/316L (+$404.75)
- Membrane Material and Application
- 316L, TempC; diaphragm seal
- Fill Fluid
- Silicone oil, FDA
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEJH6AA3HFA1VXJA1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 15psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEJH6AA3UJA1VWJA1AAF1I7JA
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 1500psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- English
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- Factory calibration certificate, 5-point (+$173.03)
- Service
- Product documentation on paper (+$48.39)
- Test, Certificate, Declaration
- Inspection certificate 3.1, EN10204 (material cert. wetted metallic parts) (+$147.66)
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEJH6AA3SJA1VWJA1AAF1I7JA
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- English
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- Factory calibration certificate, 5-point (+$173.03)
- Service
- Product documentation on paper (+$48.39)
- Test, Certificate, Declaration
- Inspection certificate 3.1, EN10204 (material cert. wetted metallic parts) (+$147.66)
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABADJH6AA3UFA1VNJA1I7JAQ1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Segment display w/o buttons + Bluetooth (+$172.53)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 1500psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- FNPT1/2, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- Product documentation on paper (+$48.39)
- Test, Certificate, Declaration
- Inspection certificate 3.1, EN10204 (material cert. wetted metallic parts) (+$147.66)
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CCBAEJH8AA3HFA1VNJA1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Absolute
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 15psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- FNPT1/2, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAEBH6AA3SFA2VHJA1AA
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME, NPT, flush mount
- Process Connection
- MNPT3/4, 316L, flush mount (+$53.96)
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- English
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAAJH6BD3HJAAADJJ2Q1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Without
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 15psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 2" Cl.150, 316/316L (+$404.75)
- Membrane Material and Application
- Tantalum; diaphragm seal (+$758.92)
- Fill Fluid
- Silicone oil, FDA
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CCBAEJH6AA3MFA1VNJA1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 60psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- FNPT1/2, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAEBH6AA3SFA2VHJA1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME, NPT, flush mount
- Process Connection
- MNPT3/4, 316L, flush mount (+$53.96)
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAEBH8AA3FFA1VXJA1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Absolute
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 6psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEBH6AA3PFA1VNJA1EH
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- FNPT1/2, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEJH6AA3PFA1VXJA1F1NLQ3
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- Factory calibration certificate, 5-point (+$173.03)
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket B&B manifold, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-BBBAEJH6AA3PJA1VWJA1JBLA
- Base Price:
- $1,597.50
- Approval Type
- ATEX/IEC
- Approval
- ATEX/IEC II 1/2G, 2G Ex ia IIC T6 Ga/Gb (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- NACE MR0175 / ISO 15156 (wetted metallic parts), declaration (+$55.00)
- Additional Approval
- SIL (+$122.52)
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-BBBAEJH6AA3SJA1VWJA1JBLA
- Base Price:
- $1,597.50
- Approval Type
- ATEX/IEC
- Approval
- ATEX/IEC II 1/2G, 2G Ex ia IIC T6 Ga/Gb (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- NACE MR0175 / ISO 15156 (wetted metallic parts), declaration (+$55.00)
- Additional Approval
- SIL (+$122.52)
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-BBBAEJH6AA3UJA1VWJA1JBLA
- Base Price:
- $1,597.50
- Approval Type
- ATEX/IEC
- Approval
- ATEX/IEC II 1/2G, 2G Ex ia IIC T6 Ga/Gb (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 1500psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- NACE MR0175 / ISO 15156 (wetted metallic parts), declaration (+$55.00)
- Additional Approval
- SIL (+$122.52)
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAEJH8AA3KJA1VXJA1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Absolute
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 30psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEJH6AA3MJA1VWJA1NLQ1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 60psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEJH6AA3PJA1VWJA1AAF1I7JA
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- English
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- Factory calibration certificate, 5-point (+$173.03)
- Service
- Product documentation on paper (+$48.39)
- Test, Certificate, Declaration
- Inspection certificate 3.1, EN10204 (material cert. wetted metallic parts) (+$147.66)
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAFJH6BD3KJAAAAJG7EH
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 30psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 1" Cl.150, 316/316L (+$292.32)
- Membrane Material and Application
- 316L, TempC; diaphragm seal
- Fill Fluid
- Inert oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-BBBAEJH8AA3SJA1VWJA1JBLA
- Base Price:
- $1,597.50
- Approval Type
- ATEX/IEC
- Approval
- ATEX/IEC II 1/2G, 2G Ex ia IIC T6 Ga/Gb (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Absolute
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- NACE MR0175 / ISO 15156 (wetted metallic parts), declaration (+$55.00)
- Additional Approval
- SIL (+$122.52)
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAAJH6AA3FJA1VWJA1NLQ1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Without
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 6psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEJH6AA3MFA1VWJA1NLQ1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 60psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEKH6AA3PFAAADJA1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; 316L (+$754.02)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 2" Cl.150, 316/316L (+$404.75)
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAFBH6AA3MEA1VXJA1PL
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 60psi
- Calibration and Unit
- Sensor range; inH2O/ftH2O
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$193.40)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAFJH6BD3FJAAADJJ2Q1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 6psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 2" Cl.150, 316/316L (+$404.75)
- Membrane Material and Application
- Tantalum; diaphragm seal (+$758.92)
- Fill Fluid
- Silicone oil, FDA
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAFJH6BD3HJAAAFJG7EH
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 15psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 3" Cl.150, 316/316L (+$674.60)
- Membrane Material and Application
- 316L, TempC; diaphragm seal
- Fill Fluid
- Inert oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAFJH6BD3PJAAAAJG7EH
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 1" Cl.150, 316/316L (+$292.32)
- Membrane Material and Application
- 316L, TempC; diaphragm seal
- Fill Fluid
- Inert oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-BBBAEJH6AA3WJA1VWJA1JBLA
- Base Price:
- $1,597.50
- Approval Type
- ATEX/IEC
- Approval
- ATEX/IEC II 1/2G, 2G Ex ia IIC T6 Ga/Gb (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 6000psi (+$39.35)
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- NACE MR0175 / ISO 15156 (wetted metallic parts), declaration (+$55.00)
- Additional Approval
- SIL (+$122.52)
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CCBAAJH6AA3HJA1VXCB1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Without
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 15psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, AlloyC276 (+$425.01)
- Membrane Material and Application
- AlloyC276; standard (+$109.05)
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CCBAEJH6AA3MFA1VWJA1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 60psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CCBAEJH6AA3PFA1VXJA1MA
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- Sensor remote, cable PE, 2m/80inch + mounting bracket, wall/pipe, 316L (+$358.27)
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CCBAEJH8AA3HFA1VWJA1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Absolute
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 15psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CCBAFJH6AA3FJA1VWJA1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 6psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAAJH6AA3MFA1VWJA1NLQ1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Without
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 60psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAEJH6AA3KFA1VXJA1NQ
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 30psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L, MNPT1/2, FNPT1/2, graphite packing (+$306.70)
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAAJH6AA3SJA1VWJA1NLQ1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Without
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAAJH6BD3FJAAADJJ2Q1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Without
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 6psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 2" Cl.150, 316/316L (+$404.75)
- Membrane Material and Application
- Tantalum; diaphragm seal (+$758.92)
- Fill Fluid
- Silicone oil, FDA
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAAKH6AA3XFA1VWJA1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Without
- Housing and Material
- Dual compartment; 316L (+$754.02)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 10500psi (+$354.18)
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABACJH6AA3PJA1VXJA1FA
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Segment display w/o buttons (+$114.68)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Platinum, 0.025% (+$194.50)
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABADBH6AA3PJA2VHJA1EHMCQ1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Segment display w/o buttons + Bluetooth (+$172.53)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME, NPT, flush mount
- Process Connection
- MNPT3/4, 316L, flush mount (+$53.96)
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- Sensor remote, cable PE, 10m/400inch + mounting bracket, wall/pipe, 316L (+$508.53)
- Accessory Mounted
- None
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEBH6AA3PFA1VXJA1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEJH6AA3PFA1VWJA1NLQ1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEJH6AA3SJA1VWJA1F1KBNLQ1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- Factory calibration certificate, 5-point (+$173.03)
- Service
- None
- Test, Certificate, Declaration
- Pressure test, internal procedure, test report (+$188.48)
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAEJH6AA3SJA1VWJA1NLQ1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAFBH6AA3PJA1VXJA1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAFJH6AA3KJA1VXJA1EHNL
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 30psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAFJH6AA3PJA1VXJA1EHNL
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAFJH6BD3HJAAAFJG7EHF1
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 15psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 3" Cl.150, 316/316L (+$674.60)
- Membrane Material and Application
- 316L, TempC; diaphragm seal
- Fill Fluid
- Inert oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- Factory calibration certificate, 5-point (+$173.03)
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAFJH6BD3MJAAAAJG7EH
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 60psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 1" Cl.150, 316/316L (+$292.32)
- Membrane Material and Application
- 316L, TempC; diaphragm seal
- Fill Fluid
- Inert oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-AABAFJH6BD3UJAAAXJF7EH
- Base Price:
- $1,597.50
- Approval Type
- Non-hazardous area
- Approval
- Non-hazardous area
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 1500psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 1" Cl.400/600, 316/316L (+$565.53)
- Membrane Material and Application
- 316L; diaphragm seal
- Fill Fluid
- Inert oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-C1BAEJH6AA3PJA1VWJA1F1PL
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Ex d, DIP Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- Factory calibration certificate, 5-point (+$173.03)
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$193.40)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-C1BAEJH6BD3SJAAAMJG2
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Ex d, DIP Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 1" Cl.300, 316/316L (+$460.97)
- Membrane Material and Application
- 316L, TempC; diaphragm seal
- Fill Fluid
- Silicone oil, FDA
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-C1BAEKH6AA3FJA1VWJA1EHNLQ3
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Ex d, DIP Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; 316L (+$754.02)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 6psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket B&B manifold, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-C1BAFJH6BD3MJAAAAJG7EHF1JALA
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Ex d, DIP Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 60psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 1" Cl.150, 316/316L (+$292.32)
- Membrane Material and Application
- 316L, TempC; diaphragm seal
- Fill Fluid
- Inert oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- Factory calibration certificate, 5-point (+$173.03)
- Service
- None
- Test, Certificate, Declaration
- Inspection certificate 3.1, EN10204 (material cert. wetted metallic parts) (+$147.66)
- Additional Approval
- SIL (+$122.52)
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CABAEJH6AA3PFA1VXJA1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US General Purpose
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CABAFBH6AA3KEA1VXJA1AANL
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US General Purpose
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 30psi
- Calibration and Unit
- Sensor range; inH2O/ftH2O
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- English
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CBBAFJH6AA3PFA1VWJA1NP
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, Cl.I zone 0, AEx/Ex ia IIC T6 (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve,316L,MNPT1/2,FNPT1/2, PTFE packing (+$306.70)
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CBBAFJH6BD3SJAAADJH2
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, Cl.I zone 0, AEx/Ex ia IIC T6 (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 2" Cl.150, 316/316L (+$404.75)
- Membrane Material and Application
- AlloyC276; diaphragm seal, flange (+$675.15)
- Fill Fluid
- Silicone oil, FDA
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CCBAAJH6AA3KJA1VXJA1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Without
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 30psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CCBAFBH6AA3FJAAAFJA1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 6psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 3" Cl.150, 316/316L (+$674.60)
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CCBAFBH6AA3PJA1VXJA1EH
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CCBAFJH6AA3UFA1VXJA1AA
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US IS Cl.I Div.1 Gr.A-D (+$39.46)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 1500psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- English
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAAJH6AA3PFA1VWJA1NLQ1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Without
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAAJH6AA3PJA1VWJA1NLQ1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Without
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAAJH6AA3SJA1VWJA1F1KBNLQ1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Without
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- Factory calibration certificate, 5-point (+$173.03)
- Service
- None
- Test, Certificate, Declaration
- Pressure test, internal procedure, test report (+$188.48)
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAAJH6AA3SJA1VWJA1NLQ1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Without
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- Block&Bleed valve, 316L,FNPT1/2,FNPT1/2 PTFE packing (+$295.83)
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBADBH6AA3PFA1VWCB1QF
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Segment display w/o buttons + Bluetooth (+$172.53)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Sensor range; psi
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, AlloyC276 (+$425.01)
- Membrane Material and Application
- AlloyC276; standard (+$109.05)
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- Block&Bleed valve,AlloyC, PTFE-packing, MNPT1/2, FNPT1/2 (+$1,194.13)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAEJH6AA3PJA1VXCB1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 150psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2 FNPT1/4, AlloyC276 (+$425.01)
- Membrane Material and Application
- AlloyC276; standard (+$109.05)
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAEJH6AA3SJA1VWJA1Q1
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Standard
- Diaphragm Seal Type
- Without
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Thread ASME B1.20.3, NPT
- Process Connection
- MNPT1/2, hole 11.4mm, 316L
- Membrane Material and Application
- 316L; standard
- Fill Fluid
- Silicone oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- Mounting bracket, wall/pipe, 316L (+$85.03)
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAEJH6BD3SJAAADJG7F1HA
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control (+$202.38)
- Housing and Material
- Dual compartment; Alu, coated (+$138.24)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 600psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 2" Cl.150, 316/316L (+$404.75)
- Membrane Material and Application
- 316L, TempC; diaphragm seal
- Fill Fluid
- Inert oil
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- None
- Application Package
- None
- Reference Accuracy
- Standard, 0.05%
- Calibration
- Factory calibration certificate, 5-point (+$173.03)
- Service
- Cleaned from oil+grease (wetted parts) (+$142.72)
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Configuration for PMP71B-CDBAFBH6BD3FJAAAAJG2CAEH
- Base Price:
- $1,597.50
- Approval Type
- CSA C/US
- Approval
- CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G (+$109.30)
- Output
- 2-wire 4-20mA HART
- Display and Operation
- Graphic display touch control + Bluetooth (+$260.22)
- Housing and Material
- Single compartment; Alu, coated (+$31.44)
- Electrical Connection
- Thread NPT1/2, IP66/68 NEMA Type 4X/6P
- Pressure Type
- Gauge
- Application
- Diaphragm seal (+$492.47)
- Diaphragm Seal Type
- Compact
- Capillary Length
- None
- Sensor Range
- 6psi
- Calibration and Unit
- Customized linear; see additional spec. (+$71.34)
- Process Connection Sealing Surface
- Flange ASME B16.5, RF
- Process Connection
- NPS 1" Cl.150, 316/316L (+$292.32)
- Membrane Material and Application
- 316L, TempC; diaphragm seal
- Fill Fluid
- Silicone oil, FDA
- Operation Language Display
- Without (English comes standard)
- Membrane Coating
- PTFE, 0.25mm (+$223.74)
- Application Package
- Heartbeat Verification + Monitoring (+$173.53)
- Reference Accuracy
- Standard, 0.05%
- Calibration
- None
- Service
- None
- Test, Certificate, Declaration
- None
- Additional Approval
- None
- Sensor Design
- None
- Accessory Mounted
- None
- Accessory Enclosed
- None
- Regional Device Adaption
- None
- Firmware Version
- Standard
- Marking
- None
- Tagging
- None
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
| Part Number | Price | Available | |
|---|---|---|---|
| PMP71B-AABACBH6BR3HFAAAFJG2PBQ1 6.00ft | Call for information | 2 | Call to order |
| PMP71B-CDBAABH6AA3FJA1VXJA1NMQ3Z1 | Call for information | 2 | Call to order |
| PMP71B-CDBAABH6AA3PJA1VXJA1NMQ3Z1 | Call for information | 2 | Call to order |
| PMP71B-CBBAFJH6BD3SJVDCKJH2 | Call for information | 1 | Call to order |
| PMP71B-AABAFJH6AA3SJA1VWJB1AANPP7 | Call for information | 1 | Call to order |
| PMP71B-AABAFJH6AA3PJA1VWJB1NPP7 | Call for information | 1 | Call to order |
| PMP71B-AABAFJH6AA3KFA1VWJA1NPP7 | Call for information | 3 | Call to order |
| PMP71B-C1BAFBH6BR3MJVDCUJF2EHF2 10,00ft | Call for information | 1 | Call to order |
| PMP71B-AABAFBH6BR3MFAAACJF2Q1 5,00ft | Call for information | 1 | Call to order |
| PMP71B-CCBACBH6BD3PFAAADJG2JAKB | Call for information | 5 | Call to order |
| PMP71B-AABACJH6BM3KJAAAAJG2Q1 2.50m | Call for information | 4 | Call to order |
| PMP71B-AABACJH6BM3KJAAAAJJ2Q1 2.50m | Call for information | 4 | Call to order |
| PMP71B-C1BAFJH6AA3PJA1VWJA1FAPPQ3 | Call for information | 3 | Call to order |
| PMP71B-C1BAFJH6BM3UJVHV4JG5EHF1Q1 10.00m | Call for information | 2 | Call to order |
| PMP71B-C1BAFJH6BM3SJVHV4JG5EHF1Q1 10.00m | Call for information | 2 | Call to order |
| PMP71B-C1BAFJH6BM3MJVHV4JG5EHF1Q1 10.00m | Call for information | 4 | Call to order |
| PMP71B-C1BAFJH6BM3WJVHV4JG5EHF1Q1 10.00m | Call for information | 4 | Call to order |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
Need Help? Call a Calibration engineer at 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
