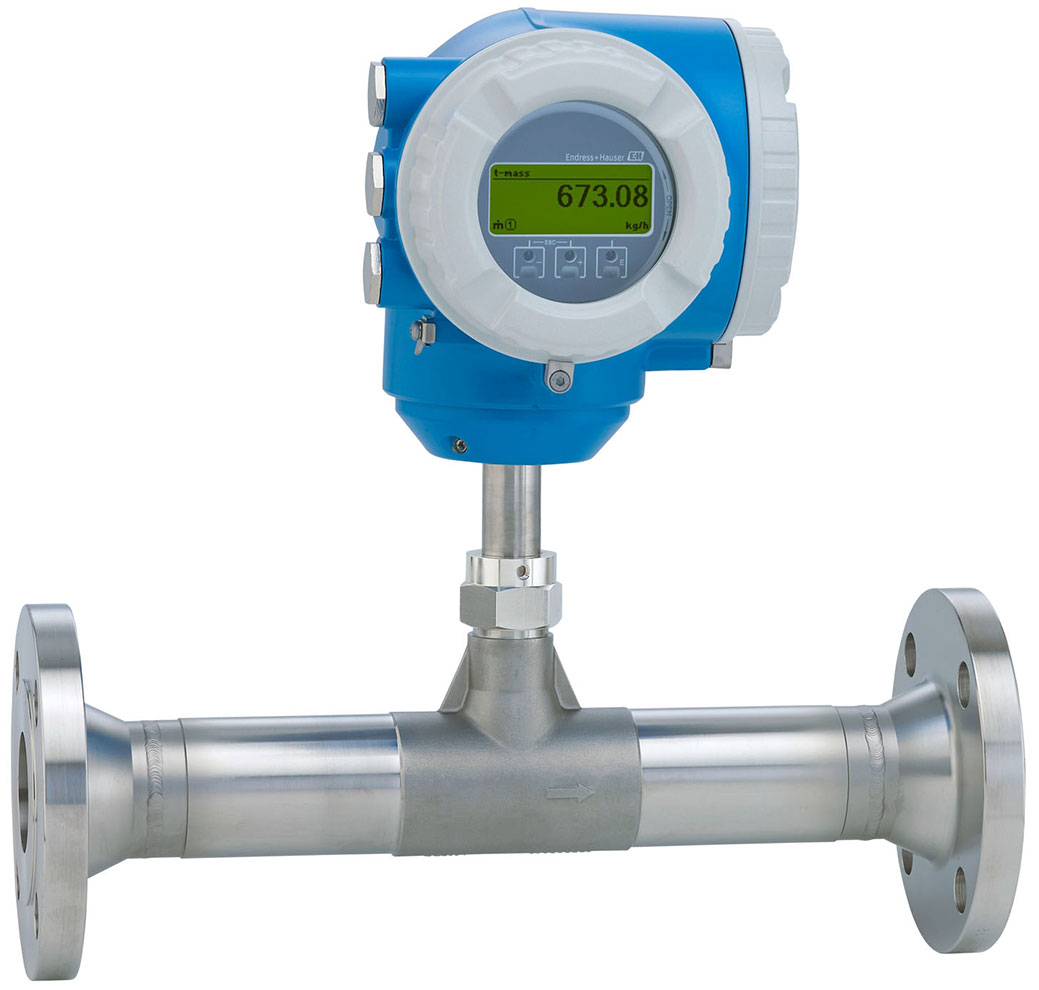

E+H Proline T-Mass F 300 Thermal Mass Flow Meter

Name: E+H Proline T-Mass F 300 Thermal Mass Flow Meter
Price: 5438.86 USD
Availability: InStock

Inline flow meter with long-term stability, drift-free sensor and a compact, easily accessible transmitter.

Starting at $5,438.86

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

DN 15 to 100 (1/2 to 4in) nominal diameter range
1.1 to 8250 lb/h (0.5 to 3750 kg/h) measuring range
Maximum measured error for gas:
10 to 100% full scale flow: ±1.0% of reading
1 to 10% full scale flow: ±0.1% of full scale
PN 40, Cl. 300, 20K maximum process pressure
-40 to 356°F (-40 to 180°C) medium temperature range
±0.25% of reading for velocities above 3.3 ft/s repeatability
HART or Modbus RS485 digital communication
IP66/67, type 4X enclosure protection
ATEX, cCSAus, IECEx, NEPSI, JPN
Backlit display with touch control and WLAN access

The E+H Proline t-mass F 300 thermal mass flow meter is an inline flow meter with a patented sensor design that provides unprecedented measurement stability in thermal inline mass flow measurement. It compensates in real time for changes of process conditions including temperature, pressure, flow direction and gas type. Its compact transmitter offers high flexibility of operation and system integration, including access from one side, remote display and improved connectivity options. Heartbeat Technology ensures measurement reliability and compliant verification.

The F 300 flow meter features flexible, convenient programming based on 21 standard gases or freely definable gas mixtures. It allows measurement of utility and process gases as well as gas mixtures in small line sizes. The F 300's sensor features a high level of process control with premium measurement accuracy and repeatability, and it provides reliable detection of process disturbances and reverse flow. Bidirectional measurement ensures high measuring performance. The sensor is also removable for easy maintenance.

The F 300's transmitter offers full access to process and diagnostic information via numerous, freely combinable I/Os and fieldbuses and compact dual-compartment housing with up to 3 I/Os. The freely configurable I/O functionality results in variety and reduced complexity. The F 300 features a backlit display with touch control and WLAN access.

Spec Sheets

E+H Proline t-mass F 300 Thermal Mass Flow Meter Datasheet PDF (5.2 MB)

Manuals

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approvals	Output and Input 1	Output and Input 2	Output and Input 3	Process Connection	Application Package	Price	Available
6F3B50-CSIBAEAFADSAAASGA2 Show Full Configuration	2in, DN50	CSA C/US; Cl.I Div.2, NI	4-20mA HART	Pulse/frequency/switch output	Without	Cl.150 RF Sch.40, flange ASME B16.5	Without	$6,178.96	5 in stock
6F3B1H-CDDMABDGADSCAASGA2AAEB76 Show Full Configuration	4in, DN100	CSA C/US; Cl.I,II,III Div.1, XP, Gr.A-G	Modbus RS485	4-20mA	Configurable I/O default off	Cl.150 RF Sch.40, flange ASME B16.5	Heartbeat verification and monitoring	$11,459.08	4 in stock
6F3B80-CSIBADAFADSAAASGA2EB Show Full Configuration	3in, DN80	CSA C/US; Cl.I Div.2, NI	4-20mA HART	Configurable I/O default off	Without	Cl.150 RF Sch.40, flange ASME B16.5	Heartbeat verification and monitoring	$7,483.81	4 in stock
6F3B50-CSIBADAGADSAAASGA2DAEB Show Full Configuration	2in, DN50	CSA C/US; Cl.I Div.2, NI	4-20mA HART	Configurable I/O default off	Without	Cl.150 RF Sch.40, flange ASME B16.5	Heartbeat verification and monitoring	$7,224.11	3 in stock
6F3B40-CDDBAAAFADSAAASGA2 Show Full Configuration	1-1/2in, DN40	CSA C/US; Cl.I,II,III Div.1, XP, Gr.A-G	4-20mA HART	Without	Without	Cl.150 RF Sch.40, flange ASME B16.5	Without	$7,443.44	2 in stock
6F3B50-CDDBAAAFADSAAASGA2 Show Full Configuration	2in, DN50	CSA C/US; Cl.I,II,III Div.1, XP, Gr.A-G	4-20mA HART	Without	Without	Cl.150 RF Sch.40, flange ASME B16.5	Without	$7,515.16	2 in stock
6F3B50-CSIBADDFADSAAASGA2 Show Full Configuration	2in, DN50	CSA C/US; Cl.I Div.2, NI	4-20mA HART	Configurable I/O default off	Configurable I/O default off	Cl.150 RF Sch.40, flange ASME B16.5	Without	$6,350.16	2 in stock
6F3B25-CSIBAAAGADSAAASGA2DAEB Show Full Configuration	1in, DN25	CSA C/US; Cl.I Div.2, NI	4-20mA HART	Without	Without	Cl.150 RF Sch.40, flange ASME B16.5	Heartbeat verification and monitoring	$6,892.65	1 in stock
6F3B25-CSIBADAGADSAAASGA2DAEB Show Full Configuration	1in, DN25	CSA C/US; Cl.I Div.2, NI	4-20mA HART	Configurable I/O default off	Without	Cl.150 RF Sch.40, flange ASME B16.5	Heartbeat verification and monitoring	$7,020.90	1 in stock
6F3B50-CDEBADAFADSAAASGA2 Show Full Configuration	2in, DN50	CSA C/US; Cl.I,II,III Div.1, XP, Gr.A-G	4-20mA HART	Configurable I/O default off	Without	Cl.150 RF Sch.40, flange ASME B16.5	Without	$7,643.41	1 in stock
6F3B50-CSIBADAFADSAAASGA2 Show Full Configuration	2in, DN50	CSA C/US; Cl.I Div.2, NI	4-20mA HART	Configurable I/O default off	Without	Cl.150 RF Sch.40, flange ASME B16.5	Without	$6,221.91	1 in stock
6F3B65-AAIBAAAAADSAAASGA2 Show Full Configuration	2-1/2in, DN65	Non-hazardous area	4-20mA HART	Without	Without	Cl.150 RF Sch.40, flange ASME B16.5	Without	$5,929.43	1 in stock
6F3B80-CDDBAAAGADSAAASGA2EB Show Full Configuration	3in, DN80	CSA C/US; Cl.I,II,III Div.1, XP, Gr.A-G	4-20mA HART	Without	Without	Cl.150 RF Sch.40, flange ASME B16.5	Heartbeat verification and monitoring	$8,991.95	1 in stock

Base Price:: $5,438.86
Size: 2in, DN50 (+$203.21)
Approval Type: CSA
Approvals: CSA C/US; Cl.I Div.2, NI
Power Supply: 100-230 VAC / 24 VDC
Output and Input 1: 4-20mA HART
Output and Input 2: Pulse/frequency/switch output (+$85.30)
Output and Input 3: Without
Display and Operation: 4-line, illuminated, touch control (+$451.59)
Electrical Connection: Thread NPT1/2
Sensor Version: Unidirectional; 316/316L stainless steel sensor
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $5,438.86
Size: 4in, DN100 (+$1,147.55)
Approval Type: CSA
Approvals: CSA C/US; Cl.I,II,III Div.1, XP, Gr.A-G (+$1,421.50)
Power Supply: 24 VDC
Output and Input 1: Modbus RS485 (+$429.73)
Output and Input 2: 4-20mA (+$85.30)
Output and Input 3: Configurable I/O default off (+$128.25)
Display and Operation: 4-line, illuminated, touch control, WLAN (+$666.48)
Electrical Connection: Thread NPT1/2
Sensor Version: Reverse flow detection; 316/316L stainless steel sensor (+$1,453.28)
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: English
Sensor Option: Without
Customized Parameterization: Without
Application Package: Heartbeat verification and monitoring (+$688.13)
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: 01.00.zz, Modbus RS485
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $5,438.86
Size: 3in, DN80 (+$776.98)
Approval Type: CSA
Approvals: CSA C/US; Cl.I Div.2, NI
Power Supply: 100-230 VAC / 24 VDC
Output and Input 1: 4-20mA HART
Output and Input 2: Configurable I/O default off (+$128.25)
Output and Input 3: Without
Display and Operation: 4-line, illuminated, touch control (+$451.59)
Electrical Connection: Thread NPT1/2
Sensor Version: Unidirectional; 316/316L stainless steel sensor
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Heartbeat verification and monitoring (+$688.13)
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $5,438.86
Size: 2in, DN50 (+$203.21)
Approval Type: CSA
Approvals: CSA C/US; Cl.I Div.2, NI
Power Supply: 100-230 VAC / 24 VDC
Output and Input 1: 4-20mA HART
Output and Input 2: Configurable I/O default off (+$128.25)
Output and Input 3: Without
Display and Operation: 4-line, illuminated, touch control, WLAN (+$666.48)
Electrical Connection: Thread NPT1/2
Sensor Version: Unidirectional; 316/316L stainless steel sensor
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Output 1 (+$99.18)
Application Package: Heartbeat verification and monitoring (+$688.13)
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $5,438.86
Size: 1-1/2in, DN40 (+$131.49)
Approval Type: CSA
Approvals: CSA C/US; Cl.I,II,III Div.1, XP, Gr.A-G (+$1,421.50)
Power Supply: 24 VDC
Output and Input 1: 4-20mA HART
Output and Input 2: Without
Output and Input 3: Without
Display and Operation: 4-line, illuminated, touch control (+$451.59)
Electrical Connection: Thread NPT1/2
Sensor Version: Unidirectional; 316/316L stainless steel sensor
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $5,438.86
Size: 2in, DN50 (+$203.21)
Approval Type: CSA
Approvals: CSA C/US; Cl.I,II,III Div.1, XP, Gr.A-G (+$1,421.50)
Power Supply: 24 VDC
Output and Input 1: 4-20mA HART
Output and Input 2: Without
Output and Input 3: Without
Display and Operation: 4-line, illuminated, touch control (+$451.59)
Electrical Connection: Thread NPT1/2
Sensor Version: Unidirectional; 316/316L stainless steel sensor
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $5,438.86
Size: 2in, DN50 (+$203.21)
Approval Type: CSA
Approvals: CSA C/US; Cl.I Div.2, NI
Power Supply: 100-230 VAC / 24 VDC
Output and Input 1: 4-20mA HART
Output and Input 2: Configurable I/O default off (+$128.25)
Output and Input 3: Configurable I/O default off (+$128.25)
Display and Operation: 4-line, illuminated, touch control (+$451.59)
Electrical Connection: Thread NPT1/2
Sensor Version: Unidirectional; 316/316L stainless steel sensor
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $5,438.86
Size: 1in, DN25
Approval Type: CSA
Approvals: CSA C/US; Cl.I Div.2, NI
Power Supply: 100-230 VAC / 24 VDC
Output and Input 1: 4-20mA HART
Output and Input 2: Without
Output and Input 3: Without
Display and Operation: 4-line, illuminated, touch control, WLAN (+$666.48)
Electrical Connection: Thread NPT1/2
Sensor Version: Unidirectional; 316/316L stainless steel sensor
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Output 1 (+$99.18)
Application Package: Heartbeat verification and monitoring (+$688.13)
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $5,438.86
Size: 1in, DN25
Approval Type: CSA
Approvals: CSA C/US; Cl.I Div.2, NI
Power Supply: 100-230 VAC / 24 VDC
Output and Input 1: 4-20mA HART
Output and Input 2: Configurable I/O default off (+$128.25)
Output and Input 3: Without
Display and Operation: 4-line, illuminated, touch control, WLAN (+$666.48)
Electrical Connection: Thread NPT1/2
Sensor Version: Unidirectional; 316/316L stainless steel sensor
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Output 1 (+$99.18)
Application Package: Heartbeat verification and monitoring (+$688.13)
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $5,438.86
Size: 2in, DN50 (+$203.21)
Approval Type: CSA
Approvals: CSA C/US; Cl.I,II,III Div.1, XP, Gr.A-G (+$1,421.50)
Power Supply: 100-230 VAC
Output and Input 1: 4-20mA HART
Output and Input 2: Configurable I/O default off (+$128.25)
Output and Input 3: Without
Display and Operation: 4-line, illuminated, touch control (+$451.59)
Electrical Connection: Thread NPT1/2
Sensor Version: Unidirectional; 316/316L stainless steel sensor
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $5,438.86
Size: 2in, DN50 (+$203.21)
Approval Type: CSA
Approvals: CSA C/US; Cl.I Div.2, NI
Power Supply: 100-230 VAC / 24 VDC
Output and Input 1: 4-20mA HART
Output and Input 2: Configurable I/O default off (+$128.25)
Output and Input 3: Without
Display and Operation: 4-line, illuminated, touch control (+$451.59)
Electrical Connection: Thread NPT1/2
Sensor Version: Unidirectional; 316/316L stainless steel sensor
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $5,438.86
Size: 2-1/2in, DN65 (+$490.57)
Approval Type: Non-hazardous
Approvals: Non-hazardous area
Power Supply: 100-230 VAC / 24 VDC
Output and Input 1: 4-20mA HART
Output and Input 2: Without
Output and Input 3: Without
Display and Operation: Without
Electrical Connection: Thread NPT1/2
Sensor Version: Unidirectional; 316/316L stainless steel sensor
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Base Price:: $5,438.86
Size: 3in, DN80 (+$776.98)
Approval Type: CSA
Approvals: CSA C/US; Cl.I,II,III Div.1, XP, Gr.A-G (+$1,421.50)
Power Supply: 24 VDC
Output and Input 1: 4-20mA HART
Output and Input 2: Without
Output and Input 3: Without
Display and Operation: 4-line, illuminated, touch control, WLAN (+$666.48)
Electrical Connection: Thread NPT1/2
Sensor Version: Unidirectional; 316/316L stainless steel sensor
Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
Calibration Flow: Factory calibration, 5-point NIST traceable
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Heartbeat verification and monitoring (+$688.13)
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with marking selection

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
6F3B65-AAIBADDFADSAAASKA2CSHAHBJALK	Call for information	1	Call to order
6F3B50-CDDBADDFADSAAASGA2CSEBEV	Call for information	1	Call to order
6F3B80-CSIBADAFADSAAASGA2EBEV	Call for information	6	Call to order
6F3B50-CDECACAFADSAABSGA2CSEBEV	Call for information	2	Call to order
6F3B50-CDECACAFADSAAASGA2CSEBEV	Call for information	2	Call to order
6F3B1H-CSIBADDFADSAAASGA2CSEBEV	Call for information	5	Call to order
6F3B50-CSIBADDFADSAAASGA2CSEBEV	Call for information	4	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
