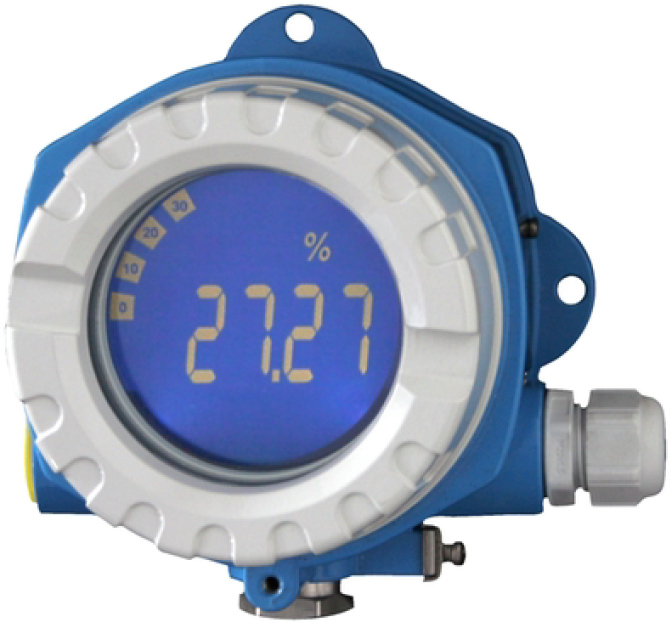

E+H RIA14 Loop-Powered Field Indicator

Indication of a 4 to 20 mA signal on-site, bargraph in increments of 10%.

Starting at $792.73

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Single compartment housing
  • 5-digit LC display
  • Illuminated display, rotatable in 90° steps
  • -19999 to 99999 measuring range
  • Digital limit switch
  • Freely programmable units
  • 3-key operation, buttons under outer cover

E+H RIA14 Loop-Powered Field Indicator shows the measured signal on the large, backlit display. An additional bar graph gives a quick process overview and a plain text field displays further information like the engineering unit or TAG. Limit value infringements are also signalized and an open collector can be switched. No separate power supply is required, the indicator is powered directly from the 4 to 20 mA loop. The housing is available in aluminum and in stainless steel as well as with an optional Ex d approval.

Applications for the RIA14 include:

  • Oil & gas
  • Petrochemical industry
  • System and apparatus engineering
  • Outdoor applications
  • Laboratory facilities
  • Process data acquisition and monitoring
  • Optional: stainless steel housing

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number Approval Housing Cable Entry Calibration Service Additional Approval Accessory Enclosed Price Available
RIA14-F33B
Show Full Configuration
FM XP,NI,DIP I,II,III/1+2/ABCDEFG
Field, Alu die cast
NPT1/2 female thread
Without
Without
Without
Without
 $965.20 9 in stock
RIA14-F33BI4
Show Full Configuration
FM XP,NI,DIP I,II,III/1+2/ABCDEFG
Field, Alu die cast
NPT1/2 female thread
Without
Without
Without
Mounting bracket tube 2in,stainless steel
 $1,031.45 4 in stock
RIA14-AA3B
Show Full Configuration
Non-hazardous area
Field, Alu die cast
NPT1/2 female thread
Without
Without
Without
Without
 $792.73 3 in stock
RIA14-AA3BI4
Show Full Configuration
Non-hazardous area
Field, Alu die cast
NPT1/2 female thread
Without
Without
Without
Mounting bracket tube 2in,stainless steel
 $858.98 3 in stock
RIA14-ID3B
Show Full Configuration
IECEx Ex d IIC T6
Field, Alu die cast
NPT1/2 female thread
Without
Without
Without
Without
 $965.20 2 in stock
RIA14-CA3BI4
Show Full Configuration
CSA General Purpose
Field, Alu die cast
NPT1/2 female thread
Without
Without
Without
Mounting bracket tube 2in,stainless steel
 $858.98 1 in stock

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
RIA14-F33BI3I4 Call for information 3 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
