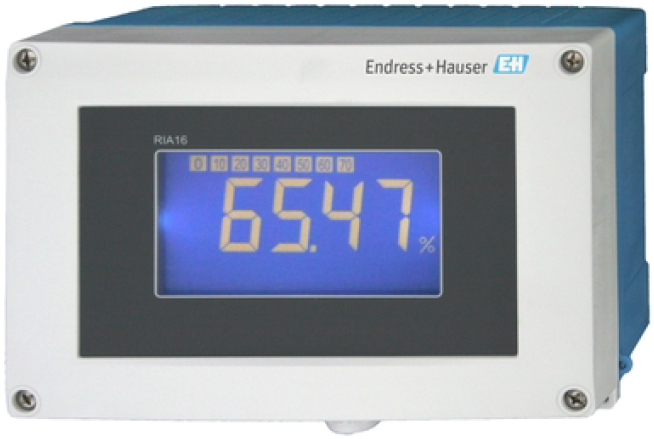

E+H RIA16 Loop-Powered Indicator
Loop-powered field indicator for looping into the 4 to 20 mA current circuit.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Display of 4 to 20 mA measured values
- 5-digit measured value display
- No external power supply required
- 3-key operation, buttons under outer cover
- Approvals: ATEX, FM, CSA, GL
- Configuration with FieldCare PC software
Description
The E+H RIA16 Loop-Powered Indicator shows the measured signal on the large, backlit display. A bar graph indicates the value graphically for a quick process overview. An editable plain text field displays further information like engineering unit or TAG. Limit value infringement is also signalized and an open collector can be switched. The indicator is powered directly from the 4 to 20 mA loop and doesn't need a separate power supply. For applications in hazardous areas the device is available with Ex approvals.
Applications for the RIA16 include:
- Oil & gas
- Petrochemical industry
- System and apparatus engineering
- Outdoor applications
- Laboratory facilities
- Process data acquisition and monitoring
- Optional: aluminum housing for Ex application
Documents
In Stock
Manufacturer Stock
This stock is typically available to ship in 2 - 4 working days
Part Number | Price | Available | |
---|---|---|---|
RIA16-CA1B |
$460.60 | 10 in stock | |
RIA16-AA1BI2 |
$579.33 | 1 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
