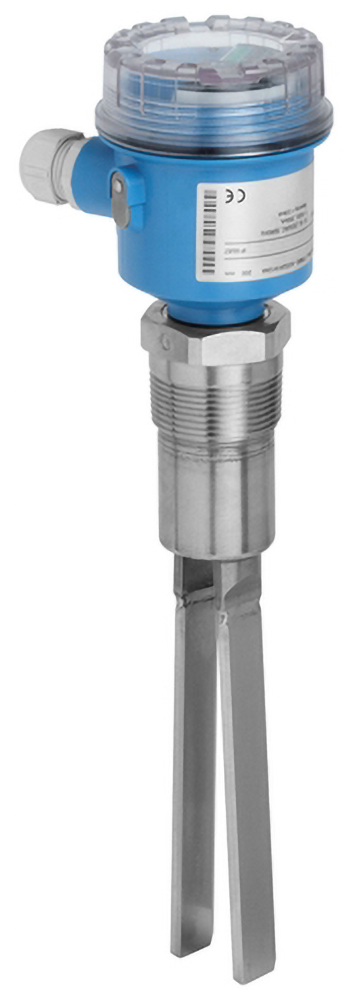

E+H Soliphant FTM50 Level Switch

Name: E+H Soliphant FTM50 Level Switch
Price: 1088.64 USD
Availability: InStock

For use in silos containing fine-grained or powdery solids even with a low bulk density.

Starting at $1,088.64

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

Threads, flanges and hygienic process connection
-60 to 540°F (-50 to 280°C) temperature
-1 to +25bar (-14.5 to +360psi) pressure
5.7in, 8in (145mm, 200mm) sensor length
316L (3,2µm, 0,8µm, PTFE coated, ETFE coated) sensor material
International explosion protection certificates
SIL2 in accordance with IEC 61508
ATEX, FM, CSA, CSA C/US, IEC Ex, JPN, INMETRO, NEPSI, EAC

E+H Soliphant FTM50 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.

Spec Sheets

E+H Soliphant FTM50 Level Switch Data Sheet PDF (1.9 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Approval Type	Approval	Process Connection	Fork and Bulk Density	Price	Available
FTM50-AGJ2A1A32AA Show Full Configuration	Non-hazardous	Non-hazardous area	Thread ANSI NPT1-1/2, d=1.67in sensor	155mm/6in; min 10g/l standard fork	$1,126.06	2 in stock
FTM50-CTD2A4A57AA Show Full Configuration	CSA C/US	CSA General Purpose, CSA C/US	Tri-Clamp ISO2852 DN40-51 (2in)	155mm/6in; min 10g/l standard fork	$1,445.67	2 in stock
FTM50-DAF2K4A73AA Show Full Configuration	FM	FM +CSA C/US DIP FM DIP Cl.II,III Div1 Gr.E-G CSA C/US DIP Cl.II,III Div1+2	NPS 2in Cl.150 RF flange ASME B16.5	100mm/4in; min 50g/l short fork	$1,800.76	2 in stock
FTM50-CGJ2A1A37AA Show Full Configuration	CSA C/US	CSA General Purpose, CSA C/US	Thread ANSI NPT1-1/2, d=1.67in sensor	155mm/6in; min 10g/l standard fork	$1,126.06	1 in stock
FTM50-CGK2K2A37AA Show Full Configuration	CSA C/US	CSA General Purpose, CSA C/US	Thread ANSI NPT1-1/4, d=1.38in sensor	100mm/4in; min 50g/l short fork	$1,149.45	1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-4 weeks". Click here to select options
