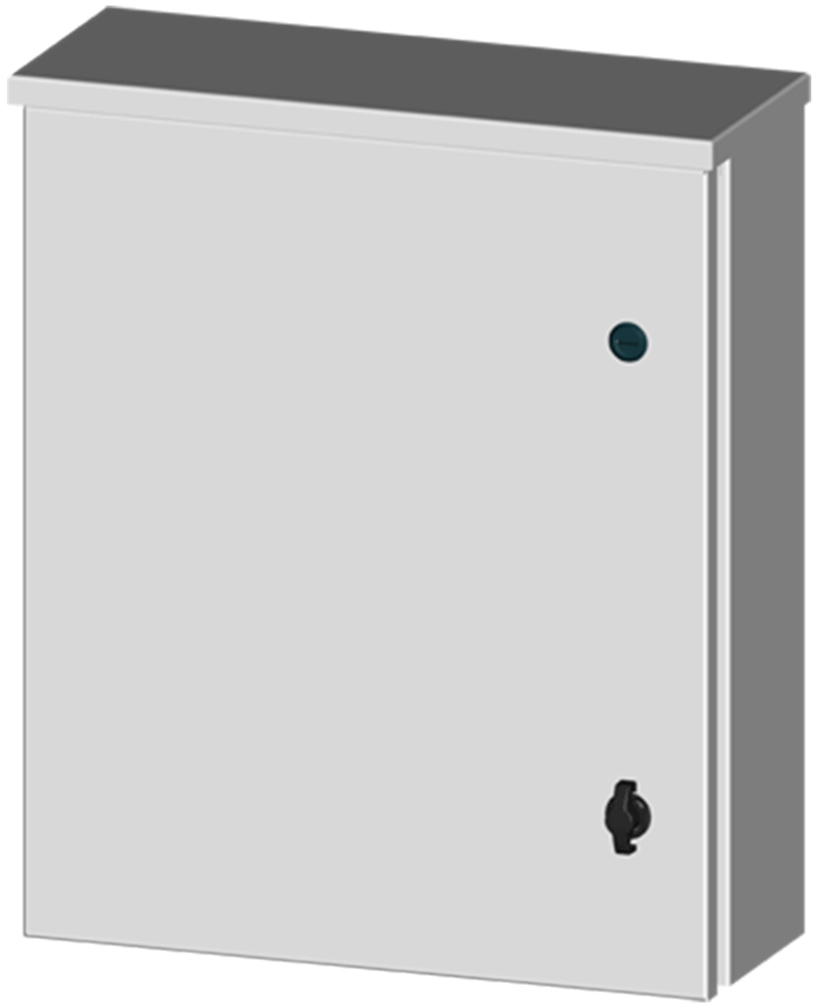

Dwyer CSE-3R Series Enclosures
Spot-welded, wall mounted enclosures designed to house electrical controls, instruments, and components in an outdoor environment.
Overview
Features
- Galvannealed steel enclosure
- NEMA 3R (IP32) rating
- Dimensions:
- Height: 16in, 20in, 24in, 30in 36in options
- Width: 12in, 16in, 20in, 24in, 30in options
- Depth: 6in or 8in
- CSA, cULus approvals
Description
The Dwyer CSE-3R Galvannealed Steel Enclosures are spot-welded, wall mounted enclosures designed to house electrical controls, instruments, and components in an outdoor environment. The enclosure features concealed hinges that allow 180° of rotation, a quarter turn latch that can be opened/closed with a screwdriver, and ground studs on the door and body. Mounting holes on the back of the enclosure allow for versatile mounting and standoffs provide easy installation of optional sub-panels. A rain cap and an oil resistant door gasket will protect instruments from rain, sleet, and snow. Each unit includes a 3/8-16 grounding kit and has the option of including a sub-panel, mounting strap, and/or a drip shield. This series is the perfect accessory for a variety of instrumentation in need of outdoor protection.
