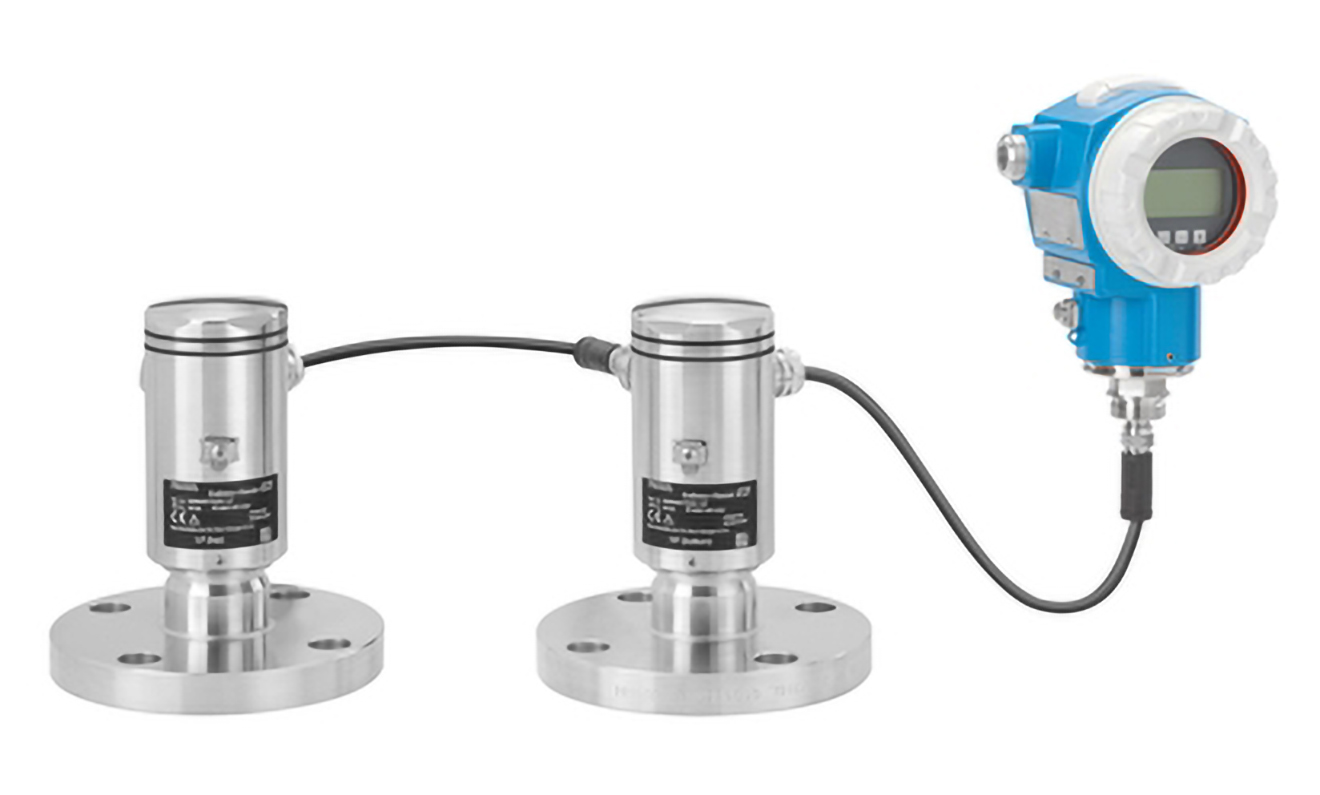

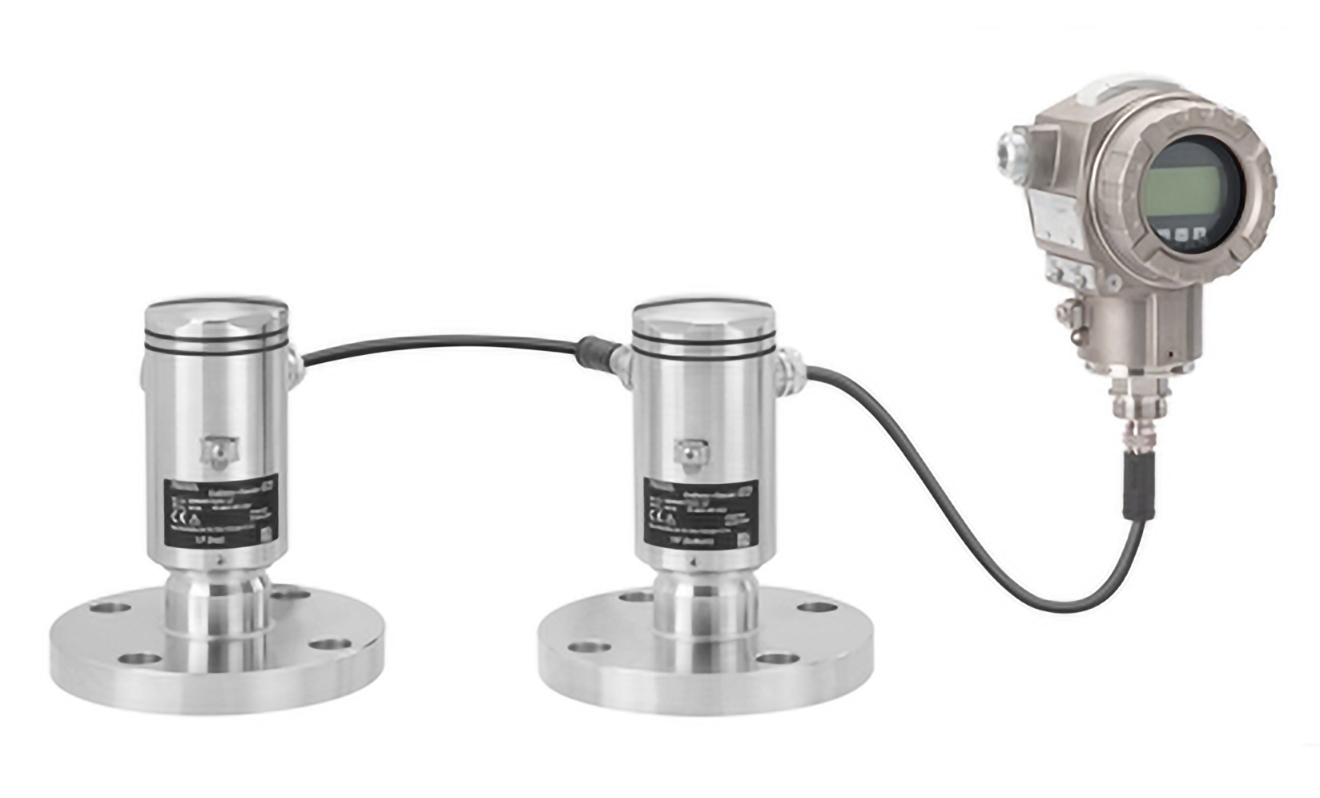

E+H Deltabar FMD72 Pressure System
Differential pressure system, used to measure the pressure, level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Threads, flanges and hygienic process connections
- -40 to 257°F (-40 to 125°C), optional 480°F (250°C) process temperature
- 400mbar to 40bar (6 to 600psi) measuring range
- Single sensor up to ±0.05%, system up to ±0.07% accuracy
- 4 to 20 mA HART supply / communication
- ATEX, FM, CSA, CSA C/US IEC Ex, NEPSI, INMETRO
- NACE MR0175, EN10204-3.1
- FDA
Description
The E+H Deltabar FMD72 is a differential pressure system, used to measure the pressure, level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators. The high pressure sensor (HP) measures the hydrostatic pressure. The low pressure sensor (LP) measures the head pressure. The level is calculated in the transmitter using these two digital values. The electronic dp system eliminates issues of traditional differential pressure measurements.
Documents
In Stock
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
Part Number | Price | Available | |
---|---|---|---|
FMD72-AA25AAD1H1HGEBCDCR1JR1JA1 | Call for information | 7 | Call to order |
FMD72-FD24AAD1K1KGEBCDCAGJAGJA1 | Call for information | 2 | Call to order |
FMD72-CA25AAA2P2PGJCCCCACJACJA1F1JA | Call for information | 3 | Call to order |
FMD72-FA24AAD1S1SDEBCDCARJARJA1 | Call for information | 1 | Call to order |
FMD72-FD25AAD1M1MGJCCGCAGJAGJA1 | Call for information | 1 | Call to order |
FMD72-FD25AAD1P1PGJCCDCACJACJA1 | Call for information | 1 | Call to order |
FMD72-FD25AAD1M1MGJCCDCACJACJA1 | Call for information | 3 | Call to order |
FMD72-FD25AAD1F1FGJDCFCAFJAFJA1 | Call for information | 1 | Call to order |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
