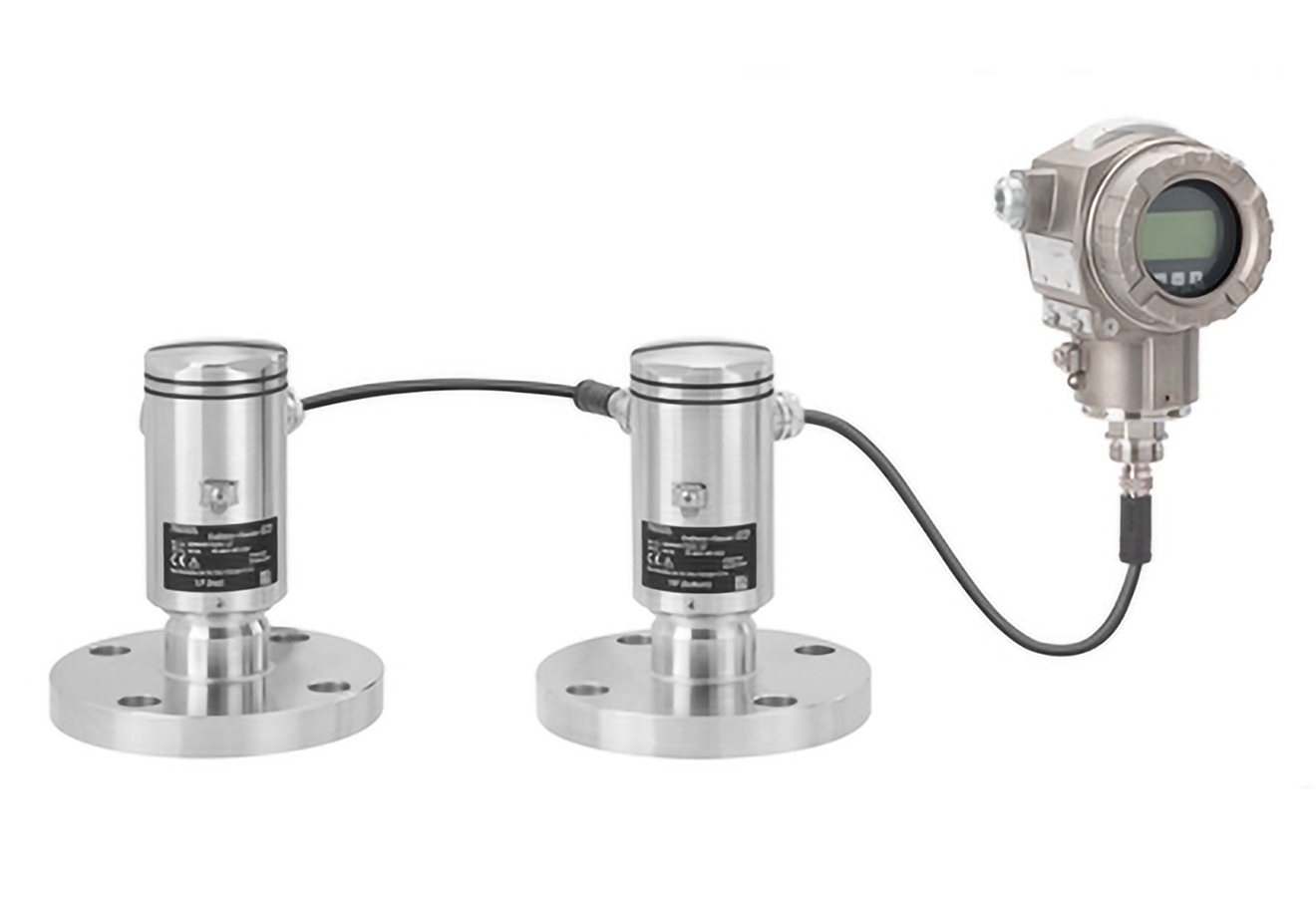

E+H Deltabar FMD71 Pressure System
Differential pressure system, used to measure the pressure or level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Threads, flanges and hygienic process connections
- -40 to 302°F (-40 up to 150°C) process temperature
- 100mbar to +40bar (6 to 600psi) measuring range
- Single sensor up to ±0.05%, system up to ±0.07% accuracy
- 4 to 20 mA HART, 12 to 45V DC, Exia: 12 to 30V DC supply/communication
- ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, INMETRO
- NACE MR0175, EN10204-3.1
- FDA, 3A
Description
The E+H Deltabar FMD71 is a differential pressure system, used to measure the pressure or level, volume or mass of liquids in pressurized tanks or distillation columns/evaporators. The high pressure sensor (HP) measures the hydrostatic pressure. The low pressure sensor (LP) measures the head pressure. The level is calculated in the transmitter using these two digital values. The electronic dp system eliminates issues of traditional differential pressure measurements.
Documents
In Stock
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
| Part Number | Price | Available | |
|---|---|---|---|
| FMD71-AA25BBD1H1FGEDCDCRJFRJFA | Call for information | 2 | Call to order |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
