E+H Cerabar PMP75 Pressure Transmitter

Digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases.

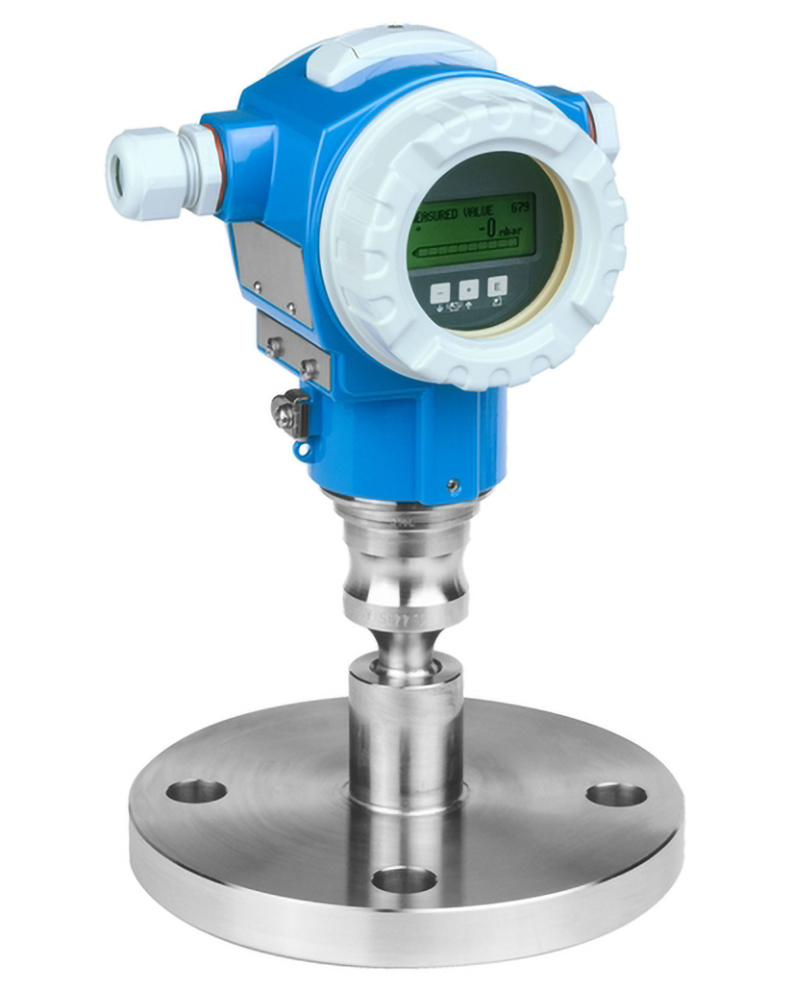

E+H Cerabar PMP75 Pressure Transmitter

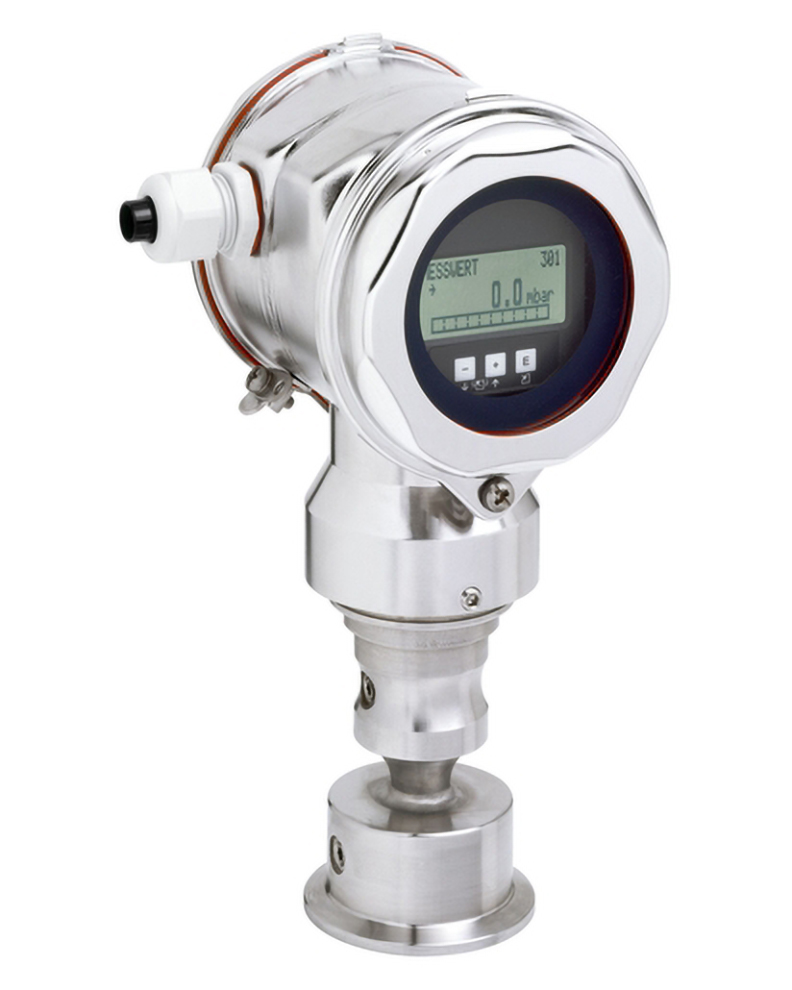

E+H Cerabar PMP75 Pressure Transmitter SS

Starting at $3,169.24

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Two chamber aluminum or stainless steel (316L) housing.
Threads, flanges or hygienic process connections
-94 to 752°F (-70 to 400°C) process temperature
-1/0 up to 400bar (-15/0 up to +6,000psi) pressure
1050bar (15,200psi) process pressure absolute/max overpressure limit
400 mbar to 400 bar (6 psi to 6000 psi) pressure measuring range
±0.075% accuracy
7000m (22.966ft) H2O max measuring distance
Supply / Communication
- 4 to 20mA HART:
- 10.5 to 45V DC
- Ex ia: 10.5 to 30V DC
- PROFIBUS PA /
- FOUNDATION Fieldbus:
- 9 to 32V DC
ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC
Overfill prevention WHG, SIL
EN 10204-3.1, NACE MR0175, MR0103
3A, EHEDG
GL/ ABS

The E+H Cerabar PMP75 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. Suitable for high pressure as well as extreme process temperature applications from -70 up to 400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. Designed according to IEC 61508 for use in SIL2/3 safety applications.

Spec Sheets

E+H Cerabar PMP75 Pressure Transmitter Data Sheet PDF (3.2 MB)

Manuals

Other

E+H Mechanical Accessories for Pressure Measuring Devices (2.7 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Price	Available
PMP75-XBC1P6EAGAAA Show Configuration	$3,811.58	1 in stock

Base Price:: $2,600.86
Approval: CSA C/US General Purpose
Output and Operating: 4-20mA HART; inside + LCD (+$458.76)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover
Sensor Range and Sensor Overload Limit: 10bar/1MPa/150psi gauge; 40bar/4MPa/600psi
Calibration and Unit: Sensor range; psi
Membrane Material: 316L, TempC
Process Connection: NPS 3in Cl.150 RF, 316/316L, flush mount, flange ASME B16.5 (+$751.96)
Transmitter Mounting and Fill Fluid: Direct; silicone oil
Capillary Length: No capillary
Additional Option 1: Not selected
Additional Option 2: Not selected
Application Package: Without
Service: Without
Test and Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Flexible Capillary Armoring: Without
Firmware Version: Without
Marking: Without
Tagging Options: Without

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
PMP75-RBC1ME12DGAU	Call for information	1	Call to order
PMP75-ACU1H6ETDABALB	Call for information	1	Call to order
PMP75-ACU1P6ETDDBALB	Call for information	1	Call to order
PMP75-ABC1HE1AGAAAPM	Call for information	1	Call to order
PMP75-ABT1SE1TCFAPHBKB	Call for information	1	Call to order
PMP75-ABT1SE1TCDAPJGKBLB	Call for information	3	Call to order
PMP75-RQC2KH1AEAAA	Call for information	1	Call to order
PMP75-TAC1P61ACFEA	Call for information	5	Call to order
PMP75-TAC1P61AFFEA	Call for information	1	Call to order
PMP75-ABC1PE1UDABA	Call for information	8	Call to order
PMP75-SBC1PH1J3ACGJE	Call for information	1	Call to order
PMP75-ABT1S61TFDAA	Call for information	3	Call to order
PMP75-ANC1H41J3AAA	Call for information	2	Call to order
PMP75-ABC1PC1TCAAP	Call for information	8	Call to order
PMP75-ABT1P6ETFDAA	Call for information	5	Call to order
PMP75-ABC2M61TCNAU	Call for information	1	Call to order
PMP75-SQC1P62AF2AU 10.00ft	Call for information	5	Call to order
PMP75-ACC1PC1TDAAPI7KB	Call for information	2	Call to order
PMP75-DAC2H61J5CAAPA 6.00ft	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
