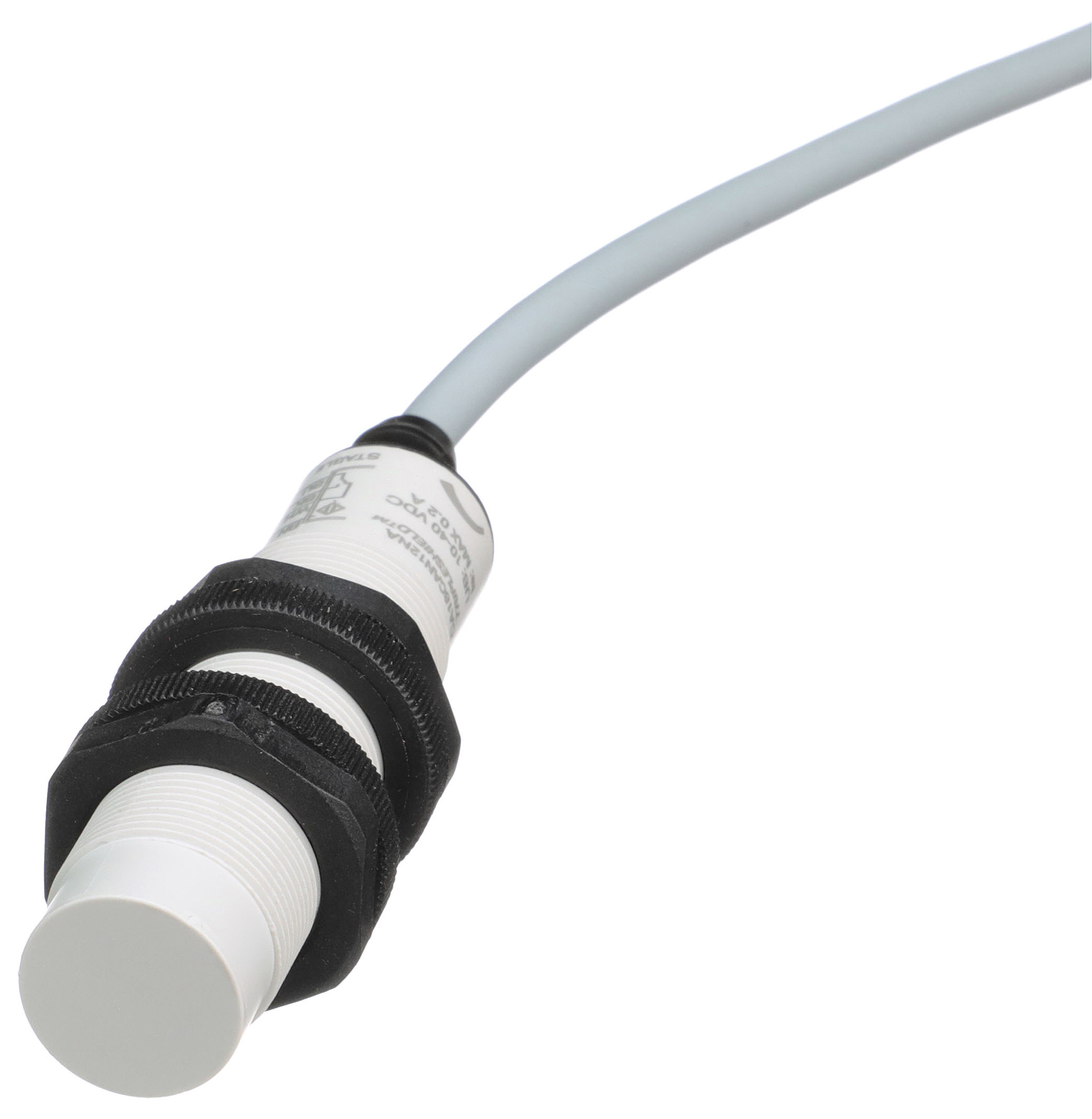

Carlo Gavazzi CA18CAN/CAF Proximity Switch
Capacitive-type, M18 housing diameter, flush or non-flush sensor, 4th-generation TRIPLESHIELD technology featuring increased immunity to EMI, humidity and dust.
-
Some models in stock. View available part numbers.
Overview
Features
- Adjustable sensing distance:
- 2-10mm flush or 3-15mm non-flush
- Short-circuit, transients and reverse polarity protection
- Dust and humidity compensation
- Dust or temperature alarm output
- 10-40 VDC rated operational voltage
- DC 200 mA, NPN or PNP output
- NO and NC standard output
- LED indications for power supply, target and stability
- IP67, IP68, IP69K, NEMA 1, 2, 4, 4X, 5, 6, 6P and 12
Description
The Carlo Gavazzi CA18CAN/CAF proximity switch features an improved 4th-generation TRIPLESHIELD technology with increased immunity to electromagnetic interference (EMI), especially to frequency drives, and increased immunity to humidity and dust. The implementation of stability indication eases the setup procedure, as both Stable ON and Stable OFF positions are indicated by the green and yellow LEDs. The sensing distance is increased by 25%, allowing room for additional stable detection.
The dust alarm function provides an early warning that the sensing surroundings must be cleaned. The temperature alarm function raises an alarm if the sensing surface goes above 140°F (60°C). The sensor housing features IP69K protection as well as approval by ECOLAB for cleaning and disinfection agents.
Documents
In Stock
Part Number | Price | Available | |
---|---|---|---|
CA18CAN12NA |
$169.00 | 2 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 16-18 weeks". Click here to select options
