Starting at $5,013.85

Overview

Features

  • Integrated diameter reduction by 1 or 2 line sizes
  • Nominal diameter (mating pipe) up to DN 250 (10in)
  • Flexible positioning of pressure cell
  • Display module with data transfer function
  • Robust dual-compartment housing
  • Plant safety: worldwide approvals (SIL, Haz. area)

Description

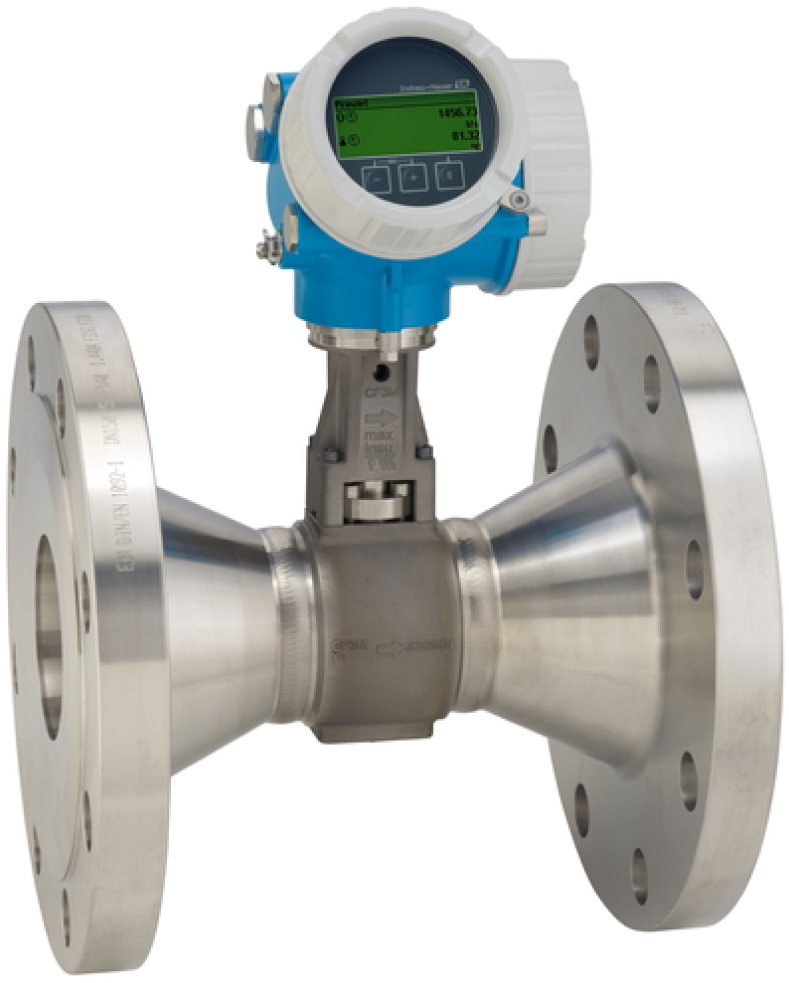

The E+H Proline Prowirl R 200 Vortex Flow Meter designed for low flows and is thus the particularly dependable solution for energy management. Additionally its calibration option PremiumCal guarantees excellent measuring accuracy for maximum plant availability. With genuine loop-powered technology, Prowirl R 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas. Heartbeat Technology ensures process safety at all times.

In Stock

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number Size Approval Output / Input Sensor Version DSC-Sensor / Meas. Tube Pressure Component Process Connection Application Package Price Available
7R2CSM-AAACCADAAAAAASKA1
DN150 6in >>DN80 3in
Non-hazardous area
4-20mA HART
Volume; 316L; 316L -40 to 260°C/-40 to 500°F
Without
Cl.150 RF Sch.40, flange ASME B16.5
Without
$8,268.14 2 in stock
7R2CRN-AACCJEDDAAEABSMA1AADJLKPM
DN150 6in >DN100 4in
Non-hazardous area
4-20mA HART + 4-20mA analog
Mass steam; 316L; 316L (integrated pressure-/temp.meas.), -328 to 750°F
Pressure cell 40bar/580psi abs
Cl.300 RF Sch.40, flange ASME B16.5
Without
$14,464.69 1 in stock
7R2CSK-C2ACCADAAAAAASKA1
DN100 4in >>DN50 2in
CSA C/US IS Cl.I,II,III Div.1 Gr.A-G
4-20mA HART
Volume; 316L; 316L -40 to 260°C/-40 to 500°F
Without
Cl.150 RF Sch.40, flange ASME B16.5
Without
$6,213.54 1 in stock

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
7R2CRR-AAACJCDAABAAASLA1DCDHEAJAJBPBPM Call for information 1 Call to order
7R2CRN-AABCJEDDAABAASKA1AADHDJEBPFPM Call for information 1 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 8-10 weeks ". Click here to select options
