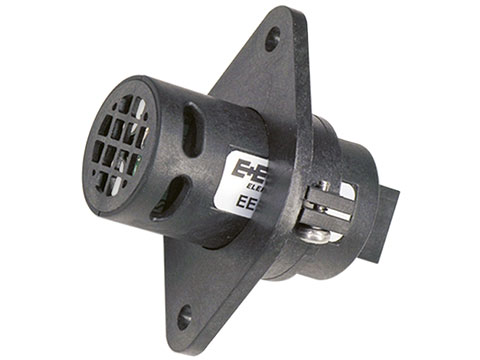

E+E EE040 Humidity / Temperature Transmitter

Compact humidity and temperature transmitter for OEM applications, high accuracy and long term stability.

E+E EE040 Humidty / Temperature Transmitter
E+E EE040 Humidty / Temperature Transmitter Side

Starting at $226.00

Effective August 5th, 2025, E+E has added a 11.25% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By E+E Elektronik

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 12-14 weeks

Product Manual Product Specs

Features

Measuring ranges:
- RH: 0 to 100%
- Temp: -40 to 185°F (-40 to 85°C)
Accuracy:
- RH: ±3% RH
- Temp: ±0.54°F (±0.3°C)
≥ 5kΩ output load
0 - 2.5V output signal
5 VDC supply

The EE040 is dedicated to the cost-effective measurement of the relative humidity (RH) and temperature (T) in OEM applications. It employs the high-quality EEH210 RH and T sensing element, which stands for reliable and long term stable measurement performance. The electronics board and the components are protected by a special varnish.

In addition, the proprietary E+E coating protects the RH sensor against dirt, dust, and corrosion, which leads to excellent long-term stability even in a polluted environment. The measured data is available on two analog voltage outputs. The EE040 design, the plug connection and the mounting flange included in the scope of supply facilitate the design-in, installation, and replacement.
