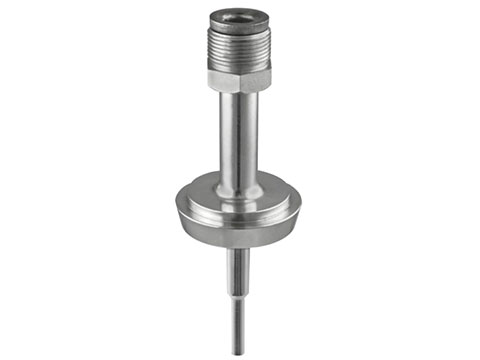

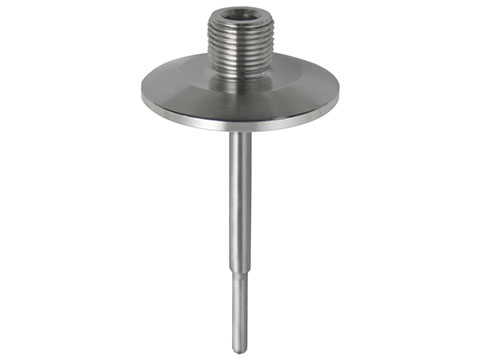

E+H iTHERM TT411 Protection Tube
Thermowell for use in hygienic or aseptic pipes and containers or tanks with very small immersion lengths.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- iTHERM QuickNeck – tool-free recalibration of the insert
- Pressure range up to 40 bar (580 psi)
- Over 50 hygienic process connections
- Global portfolio with metric and imperial versions
- Optional: 1.4435 material, delta ferrite content <1%
- Fast response time - reduced tips with thin walls
- 3-A®, EHEDG, ASME BPE, FDA, TSE
Description
The E+H iTHERM TT411 Protection Tube is best applicable for use in hygienic or aseptic pipes and containers or tanks even with very small immersion lengths. It meets increased protection requirements of the temperature sensor regarding physical and chemical effects. Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes.
Documents
In Stock
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
Part Number | Price | Available | |
---|---|---|---|
TT411-A1B1B13A415X200A3 254mm | Call for information | 2 | Call to order |
TT411-A2C1D32A214A413A5JAKBKFKW 50mm | Call for information | 5 | Call to order |
TT411-A2C1D52A214A513A5JAKBKFKW 70mm | Call for information | 9 | Call to order |
TT411-A2C1D52A214A413A5JAKBKFKW 50mm | Call for information | 1 | Call to order |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
