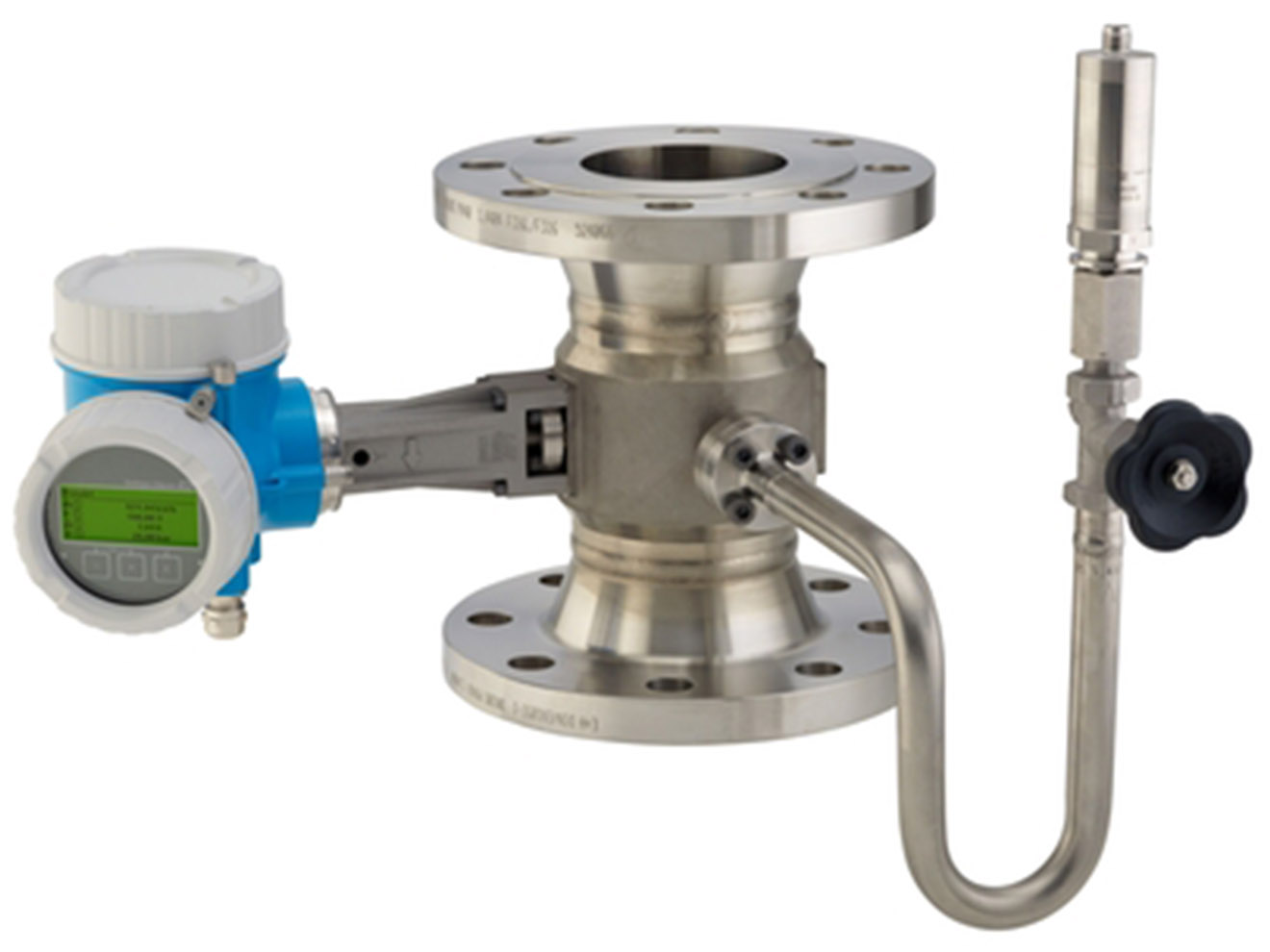

E+H Proline Prowirl F 200 Vortex Flow Meter

Multivariable flow meter with integrated temperature and pressure measurement, and optimized for steam applications.

Starting at $4,252.51

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Measures volume flow, mass flow, energy flow,
    heat flow difference, and temperature
  • DN 25 to 300 (1 to 12in) nominal diameter range
    for wet steam
  • Accuracy:
    Up to ±0.65% volume flow
    Up to ±0.85% mass flow
  • Consistent accuracy down to Re 10,000
  • PN 100, Class 600, 20K maximum process pressure
  • Medium temperature range:
    –40 to 500° F (–40 to 260° C) standard
    –328 to 752° F (–200 to 400° C) optional
  • Inlet run compensation
  • HART, PROFIBUS PA, FOUNDATION Fieldbus
  • IP66/67, type 4X enclosure
  • ATEX, IECEx, cCSAus, JPN, EAC
  • 4‐line backlit display with touch control

The E+H Proline Prowirl F 200 vortex flow meter offers the preferred measuring principle for wet, saturated or superheated steam, gases and liquids. The meter features a robust, drift-free capacitive sensor for long-term stability, and a separate connection compartment for convenient device wiring. With genuine loop-powered technology, the F 200 enables cost-effective and seamless integration into existing infrastructures. Integrated verification with Heartbeat technology ensures process safety at all times. The Prowirl F 200 also features flexible positioning of the pressure cell, an industrial siphon design for pressure measurement, and a display module with data transfer function.

This product can be used in the following applications:

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number Size Approval Output and Input Sensor Version, DSC-Sensor; Measuring Tube Material Pressure Component Process Connection Application Package Price Available
7F2C80-AAAECADCAAAAASKA1EU
Show Full Configuration
3in, DN80
Non-hazardous area
4-20mA HART
Mass; 316L; 316L (integrated temp), -328 to 750°F
None
Cl.150 RF Sch.40, flange ASME B16.5
Wet steam measurement
 $7,640.77 4 in stock
7F2C80-C4ACCADAACAACSKA1AACHDCEBLA
Show Full Configuration
3in, DN80
CSA C/US NI Cl.I Div.2 Gr. ABCD
4-20mA HART
Volume; 316L; 316L -40 to 500°F
None
Cl.600 RF Sch.80, flange ASME B16.5
Heartbeat Verification
 $10,293.51 4 in stock
7F2C80-C3BECADCAAAACSKA1
Show Full Configuration
3in, DN80
CSA C/US XP Cl.I,II,III Div.1 Gr-A-G
4-20mA HART and pulse/freq./switch output
Mass; 316L; 316L (integrated temp), -328 to 750°F
None
Cl.600 RF Sch.80, flange ASME B16.5
Not included
 $8,880.14 2 in stock
7F2C1F-AAACJDDCAAAABSKA1DJ
Show Full Configuration
6in, DN150
Non-hazardous area
4-20mA HART
Mass; 316L; 316L (integrated temp), -328 to 750°F
None
Cl.300 RF Sch.40, flange ASME B16.5
Not included
 $10,200.39 1 in stock
7F2C40-C3BCCADAADAAASKA1
Show Full Configuration
1.5in, DN40
CSA C/US XP Cl.I,II,III Div.1 Gr-A-G
4-20mA HART and pulse/freq./switch output
Volume; 316L; 316L -40 to 500°F
None
Cl.150 RF Sch.40, flange ASME B16.5
Not included
 $6,063.83 1 in stock
7F2C80-AAACCADDAAEAASKA1DJES
Show Full Configuration
3in, DN80
Non-hazardous area
4-20mA HART
Mass steam; 316L; 316L (integrated pressure and temp), -328 to 750°F
Pressure cell: 580 psi absolute (40 bar)
Cl.150 RF Sch.40, flange ASME B16.5
Wet steam detection
 $9,190.47 1 in stock

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
7F2C2F-AABCJEDDAAEABSKA1AADHDJEBPF Call for information 1 Call to order
7F2C40-AABCJCDDAAEABSKA1AADHDJEBPM Call for information 1 Call to order
7F2C80-CBACCADAAAAABSKA1DCJAJBJK Call for information 1 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
