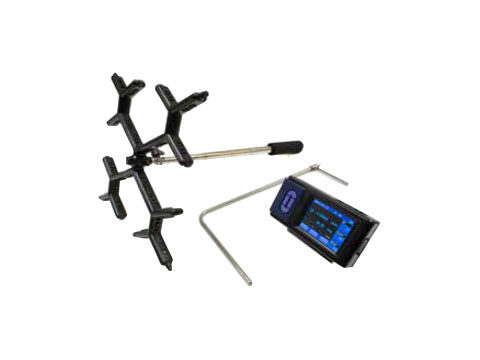

Kanomax 6700-VG Micromanometer
Handheld micromanometer with velocity grid for differential pressure, velocity, or flow.
Overview
Features
- Standard with Bluetooth wireless
- Supply and exhaust
- Datalogging up to 8000 points
- 3.5" color screen
- Memory and averaging
- Velocity grid, airfoil and pitot tube mode
- Velocity and pressure
- Auto-range and zero
- Air density corrected
- Airflow range:

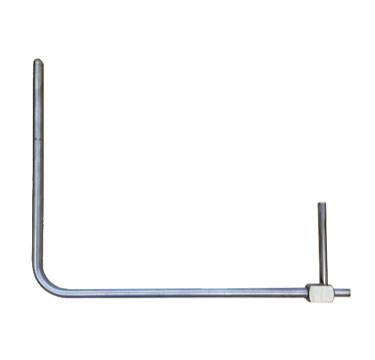

- Pitot tube: 30 to 7874 FPM (0.15 to 40 m/s)
- Velocity grid: 30 to 2952 FPM (0.15 to 15 m/s)
- +/- 3% of reading +/- 0.05 m/s accuracy
- Pressure range:
- -10 to 10in w.c. (-2500 to 2500 Pa)
- +/- 1.5% of reading +/- 0.25 Pa accuracy
- Absolute pressure range:
- 20 to 38in Hg (70 to 130 kPa)
- +/- 2% of reading accuracy
What's in the Box
- Micromanometer
- Velocity Grid (pn 6700-01)
- USB communication software/cable
- Non-slip durable plastic case
- Neck/shoulder strap
- Pressure tubing
- (4) AA batteries
- NIST TRACEABLE CALIBRATION Certificate
Description
The Kanomax 6700 handheld micromanometer can be used with pitot tubes, flow grids, differential pressure tubing or the velocity-grid (for average face velocity readings). Simultaneously measures and displays pressure, air velocity, and airflow. The 6700 can store up to 8000 measurements, and is optimal for HVAC, TAB and Cleanroom Certification applications.
