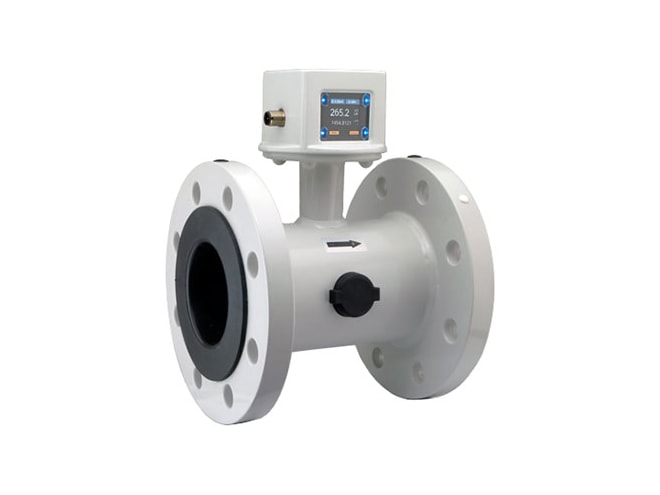

Kobold MIS Electromagnetic Flow Meter

Name: Kobold MIS Electromagnetic Flow Meter
Price: 2552.0 USD
Availability: InStock

Measures and monitors medium-sized flow of conductive liquids in pipes.

Starting at $2,552.00

View Company Reviews

Manufactured

By Kobold

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

2.65 to 700 GPM to 4.4 to 1,100 GPM
2in, 3in, 4in, 6in and 8in ANSI flange sizes
70 mm2/s max media viscosity
230 PSIG max pressure
± 0.2% of full scale repeatability
Bi-directional measurement
Two configurable outputs
IP67

The Kobold MIS electromagnetic flow meter was developed for measuring and monitoring medium-sized flow of conductive liquids in pipes. It offers 2 configurable outputs. It features monitoring, batching, and transmitter functions. The batching function has an external control input. There is both a grand and resettable totalizer. The colored, multi-parameter TFT display rotates in 90 degree increments for easy viewing, regardless of the installation position. The Kobold MIS also offers bi-directional measurement capabilities. Set-up is easy with the intuitive menu, accessed by the four optical touch keys on the display. Measurement with the Kobold MIS does not depend on the process liquid and its properties such as density, viscosity, and temperature. IO-Link comes standard. Common application areas include water and wastewater treatment, and many other industrial applications.

Spec Sheets

Kobold MIS Series Electromagnetic Flow Meter Datasheet PDF (435 KB)

Manuals

Kobold MIS Series Electromagnetic Flow Meter Manual PDF (2.9 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 3 working days.

Part Number	Flange Size	Price	Available
MIS-H206R1HH100 Show Full Configuration	2in	$2,552.00	3 in stock
MIS-H208R1HH100 Show Full Configuration	3in	$2,552.00	3 in stock
MIS-H210R1HH100 Show Full Configuration	4in	$2,615.00	3 in stock
MIS-H212R1HH100 Show Full Configuration	6in	$3,679.00	2 in stock
MIS-H213R1HH100 Show Full Configuration	8in	$4,229.00	2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4 weeks". Click here to select options
