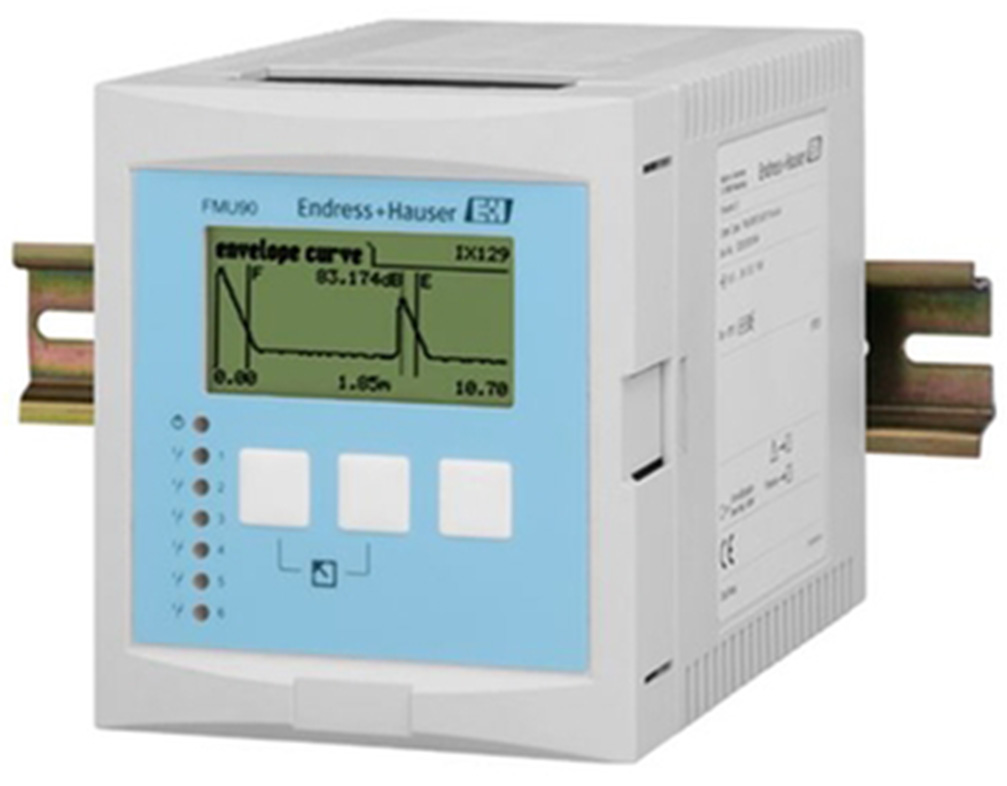

E+H Prosonic S FMU90 Ultrasonic Level Transmitter
Level measurement of fluids and bulk materials with one or two sensors for measuring of up to 148 ft (45 m) and level limit detection.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- ±0.2% of maximum span of sensor accuracy
- 0.04in (1mm) resolution
- 3 Hz maximum measuring frequency
- 4-20 mA output with HART
- Six-line, plain text display
- Average, difference, and sum calculations
- 15 languages selectable
- Field housing: IP66 / NEMA 4x
- DIN rail housing: IP20
- ATEX II 3D
Description
The E+H Prosonic S FMU90 transmitter features continuous, non-contact level measurement of fluids, pastes, sludge, and powdery to coarse bulk solids. The transmitter also measures flow in open channels and weirs with one or two sensors, including pre-programmed and selectable linearization for the most common flumes and weirs. It features up to six relays for tendency alarm, flow measurement with backwater or sludge detection, up to three totalizers and three counters, and counting or time pulse output for control of external units. Integrated or external temperature sensors enable time-of-flight correction.
The FMU90 transmitter offers a one- or two-channel version and the choice of field housing or top hat rail housing for control cabinet instrumentation. The display features envelope curves for quick and simple diagnosis, and the supplied "FieldCare" operating program enables easy operation, diagnosis, and measuring point documentation.
Documents
Accessories
In Stock
Manufacturer Stock
This stock is typically available to ship in 2 - 4 working days
Part Number | Price | Available | |
---|---|---|---|
FMU90-N31CA161AA1A |
$2,419.63 | 7 in stock | |
FMU90-L31CA162AA1A |
$2,731.16 | 6 in stock | |
FMU90-L31CA262AA1A |
$3,042.69 | 4 in stock | |
FMU90-N41CA132BA1A |
$3,291.20 | 4 in stock | |
FMU90-R21CA131AA1A |
$2,647.16 | 4 in stock | |
FMU90-J43CB111AA1A |
$2,963.82 | 1 in stock | |
FMU90-N12CA132AA1A |
$2,510.67 | 1 in stock | |
FMU90-N21CB132AA3A |
$2,958.69 | 1 in stock | |
FMU90-R11CA111AA1A |
$2,087.12 | 1 in stock | |
FMU90-R11CA112AA1A |
$2,398.65 | 1 in stock | |
FMU90-R11CB212AA1A |
$2,710.18 | 1 in stock | |
FMU90-R12CA111AA1A |
$1,950.63 | 1 in stock | |
FMU90-R12EA161AA1A |
$2,496.65 | 1 in stock |
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
Part Number | Price | Available | |
---|---|---|---|
FMU90-A11CA111AA1A | Call for information | 1 | Call to order |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
