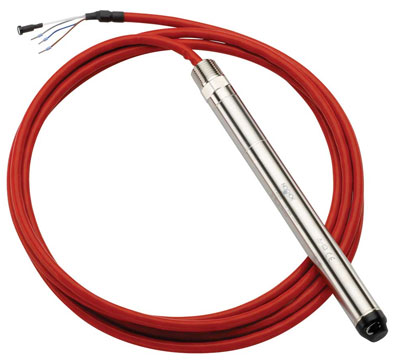

NOSHOK 611 Series Level Transmitters
Small diameter submersible pressure transducers with optional temperature output for hydrostatic level measurement including bore holes and wells up to 325ft depth .
- By NOSHOK
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- 0.87in (22.1mm) outer diameter
- Up to 100 psi (230.8 ftH2O) pressure ranges
- Optional temperature output
- Low power output signals, can be battery-powered
- 5:1 turndown using optional HART signal
- CE compliant to suppress RFI, EMI and ESD
- IP68 environmental rating
- Pending ATEX, CSA, & IECex certifications
- 3-year warranty
Description
The NOSHOK 611 series level transmitters measure depth by converting the amount of pressure on a diaphragm into an electrical signal. An optional HART output is available for communicating with a controller. Temperature measurement is also an option via a second output signal. These submersible transmitters are used for the following applications:
- Well head measurement
- Groundwater monitoring
- Level measurement in open bodies of water
- Sewage lift and pumping stations
- Setting ponds and rainwater basins
Documents
In Stock
Manufacturer Stock
Items from manufacturer stock generally ship in 5-7 business days. Expedited shipping is available.
Part Number | Price | Available | |
---|---|---|---|
611-10-1-43-N-75 |
$1,782.67 | 5 in stock | |
611-100inH2O-1-43-N-50 |
$1,696.06 | 5 in stock | |
611-15-1-43-N-75 |
$1,782.67 | 5 in stock | |
611-5-1-43-N-50 |
$1,696.06 | 5 in stock | |
611-50inH2O-1-43-N-50 |
$1,696.06 | 5 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
