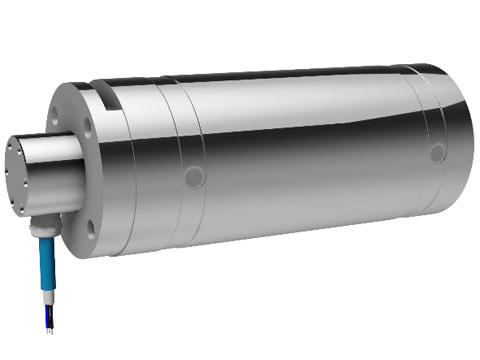

ScanSense LS-3410-SP Shear Pin Load Cell

2-wire, 4-20mA transmitter with over 1000 custom designed versions for OEM use in harsh environments and ranges up to 1200 tons.

ScanSense LS-3410-SP Shear Pin Load Cell Example 1
ScanSense LS-3410-SP Shear Pin Load Cell Example 2
ScanSense LS-3410-SP Shear Pin Load Cell Example 3

Call 1-800-884-4967 for pricing

Effective May 2nd, 2025 ScanSense has added a 10% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Part Number

LS-3410-SP

Manufactured

By ScanSense

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Call for availability

Product Specs

Features

Minimum response time of 13ms
±0.5% of full scale linearity
±1% FS total accuracy at ambient temperature
Typical 0.03% FS thermal compensated sensitivity
12 to 28 VDC supply voltage
Power supply regulation
Voltage spike and polarity protection
50 VDC (RMS) > 1GΩ insulation test
Stainless steel (IP68), submersible available
Ex ia IIC T4 , ATEX and IEC approved

The ScanSense LS-3410-SP shear pin load cell electronics are molded and encapsulated inside the sensor, proven to be the best solution for EMC, potential leakage and long lifetime performance. Huge flexibility in design and a long record of field proven solutions has made these sensors popular among customers in the gas and oil industry. Typical applications are:
