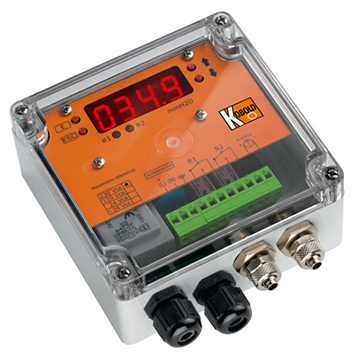

Kobold PMP Differential Pressure Sensor
Designed for measuring & controlling low pressures from 0 to 500 mmH2O (50 mbar) in air or non-corrosive gases.
Overview
Features
- 0 to 500 mmH2O (50 mbar) pressure range
- Over-range up to 750 mbar
- ±1% full scale accuracy
- 4 to 20mA output & 2 programmable relays
- 4-digit LED indication
Description
The Kobold PMP differential pressure sensor is designed for measurement and control of air or non-corrosive gases within a pressure range of 0 to 500 mmH2O (50mbar). A 4 to 20mA output is included for remote transmission, as well as two programmable relays. Relay, hysteresis, time delay of the relays and analog output are all programmable.
A micro processor controls the Kobold PMP differential pressure sensor, which is housed in an IP65 polycarbonate enclosure. Differential pressure readings are shown on the PMP's 4-digit LED display and readings are within ±1% of full scale. Two 6 x 8mm tubing pressure connections come standard with this Kobold sensor, while two 1/4 inch NPT female ports are available as an option.
