AOI Series 3500 Oxygen Transmitter

Loop-powered, trace oxygen analyzer with eight possible measurement ranges from 0-10 to 0-20,000 ppm.

AOI Series 3500 Oxygen Analyzer

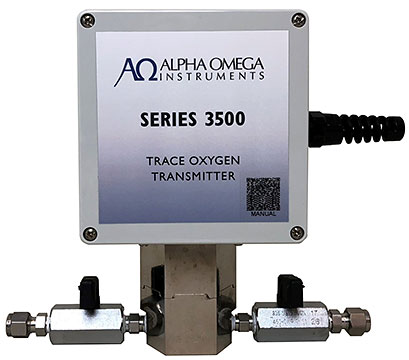

AOI Series 3500 Oxygen Transmitter with Options

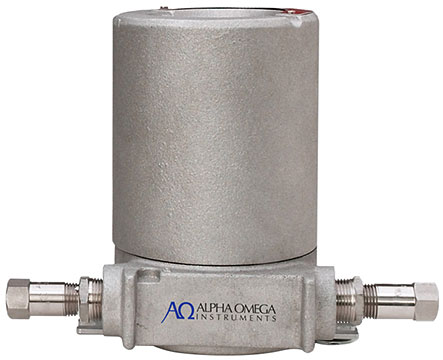

AOI Series 3500 Oxygen Transmitter Explosion Proof

Starting at $3,507.00

View Company Reviews

Manufactured

By Alpha Omega Instruments (AOI)

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 10-12 weeks

Product Manual Product Specs

Features

Measurement options
0-10; 0-50; 0-100; 0-500; 0-1,000; 0-5,000;
0-10,000; or 0-20,000 ppm
±1% of full scale accuracy
90% of full scale in less than 10 seconds response time
40 to 104°F (5 to 40°C) operating temperature range
14-32 VDC input power
4-20 mADC analog output
2-year electronics and 1-year sensor warranty
NEMA 4X (IP66) watertight enclosure

The AOI Series 3500 oxygen transmitter is a loop-powered analyzer designed to provide trace oxygen measurements in a variety of background gases. The transmitter's enclosure is made from durable polycarbonate. The 4-20 mADC output can be used with a data logger, recorder, programmable logic controller, or digital control system.

The Series 3500 features an ambient-temperature electrochemical sensor. The enhanced mechanical design of the sensor ensures longer life, and virtually eliminates leakage of caustic electrolyte. The sealed sensor is not position-sensitive and does not require manual adjustment based on changes in the molecular weights of sample gases such as helium and hydrogen. The output from the sensor is both linear and temperature-compensated to provide optimum performance.

An optional CO2-tolerant trace oxygen sensor is capable of providing accurate oxygen readings in gases containing up to 100% CO2 without shortening the life of the sensor.
