E+H Waterpilot FMX21 Level Transmitter

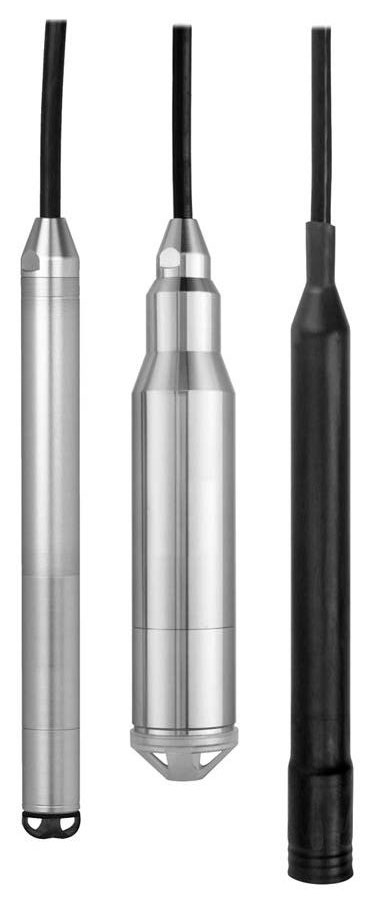

Three different versions of pressure sensor for drinking water, wastewater and sewage, and salt water.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Simultaneous measurement of level and temperature
- Ceramic sensor (99.9% Al2O3)
- 4 to 20mA with superimposed HART 6.0 output
- 14 to 158°F (–10 to 70°C) temperature
- 0 to 20bar / 200mH2O (0 to 300psi / 600ftH2O) measuring range
- ±0.2% accuracy
Description
The E+H Waterpilot FMX21 level transmitter features a capacitive, oil-free ceramic measuring cell, and is typically used in process and environmental applications for hydrostatic level measurement. With HART output, the measuring ranges can be freely adjusted, and a density-compensated level measurement can be activated. The FMX21 is certified for drinking water and offers integrated temperature measurement. Versions for applications in wastewaters and sludges or usage in salt water are also available.
Documents
Applications
This product can be used in the following applications:
In Stock
Manufacturer Stock
This stock is typically available to ship in 2 - 4 working days
| Part Number | Price | Available | |
|---|---|---|---|
|
FMX21-AA211QGF25H [600 FT] |
$2,593.29 | 6 in stock | |
|
FMX21-FE211CGE21A |
$1,300.92 | 6 in stock | |
|
FMX21-AA121HGF20A |
$1,007.16 | 4 in stock | |
|
FMX21-AA121QGF25A [50 FT] |
$1,072.91 | 4 in stock | |
|
FMX21-AA211QGF25H [500 FT] |
$2,353.29 | 4 in stock | |
|
FMX21-CD211GGE20A |
$1,207.54 | 4 in stock | |
|
FMX21-FE221CGE21APO |
$1,355.17 | 4 in stock | |
|
FMX21-AA221CGE10A |
$1,207.54 | 3 in stock | |
|
FMX21-CD211HGE21A |
$1,261.76 | 3 in stock | |
|
FMX21-FE121KGE21APOPS |
$1,233.15 | 3 in stock | |
|
FMX21-FE211PGF25APOPS [3 FT] |
$1,332.26 | 3 in stock | |
|
FMX21-FE221HGE25APO [25 FT] |
$1,306.70 | 3 in stock | |
|
FMX21-AA111KGE20A |
$1,007.16 | 2 in stock | |
|
FMX21-AA121GGE21ANBPOPSPX |
$1,593.22 | 2 in stock | |
|
FMX21-AA211HGE20A |
$1,207.54 | 2 in stock | |
|
FMX21-AA211PGE25APO [25 FT] |
$1,267.54 | 2 in stock | |
|
FMX21-AA251KGD11APOPS |
$1,572.14 | 2 in stock | |
|
FMX21-FE221GGE25APO [20 FT] |
$1,294.70 | 2 in stock | |
|
FMX21-FE221GGE25APO [25 FT] |
$1,306.70 | 2 in stock | |
|
FMX21-FE221HGE25AF1POPS [100 FT] |
$1,736.77 | 2 in stock | |
|
FMX21-AA111HGF20H |
$1,007.16 | 1 in stock | |
|
FMX21-AA111KGE25A [40 FT] |
$1,048.91 | 1 in stock | |
|
FMX21-AA111PGF11HLR |
$1,100.54 | 1 in stock | |
|
FMX21-AA111QGF25HPOPS [400 FT] |
$2,045.52 | 1 in stock | |
|
FMX21-AA121GGJ25A [25 FT] |
$1,083.71 | 1 in stock | |
|
FMX21-AA121KGE20APOPRPS |
$1,230.15 | 1 in stock | |
|
FMX21-AA211MDF25HF1 [150 FT] |
$1,868.79 | 1 in stock | |
|
FMX21-AA211MGF25HF1PO [15 FT] |
$1,415.25 | 1 in stock | |
|
FMX21-AA211PGE25APOPS [120 FT] |
$1,573.90 | 1 in stock | |
|
FMX21-AA211QGF25H [700 FT] |
$2,833.29 | 1 in stock | |
|
FMX21-AA221FGE20A |
$1,207.54 | 1 in stock | |
|
FMX21-AA221QGA15ANB [200 M] |
$2,720.84 | 1 in stock | |
|
FMX21-CD111KGF25A [80 FT] |
$1,144.91 | 1 in stock | |
|
FMX21-CD211HGE21H |
$1,261.76 | 1 in stock | |
|
FMX21-CD211PGE25HLRPOPS [250 FT] |
$1,925.06 | 1 in stock | |
|
FMX21-FE121GGJ25A [50 FT] |
$1,182.87 | 1 in stock | |
|
FMX21-FE221HGE25AF1PO [100 FT] |
$1,658.41 | 1 in stock | |
|
FMX21-FE221PGF41APO |
$1,871.90 | 1 in stock | |
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
| Part Number | Price | Available | |
|---|---|---|---|
| FMX21-AA251HGD55APS 8.00m | Call for information | 1 | Call to order |
| FMX21-AA121CGD15A 15,00m | Call for information | 2 | Call to order |
| FMX21-AA211QGE99HLR | Call for information | 1 | Call to order |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
