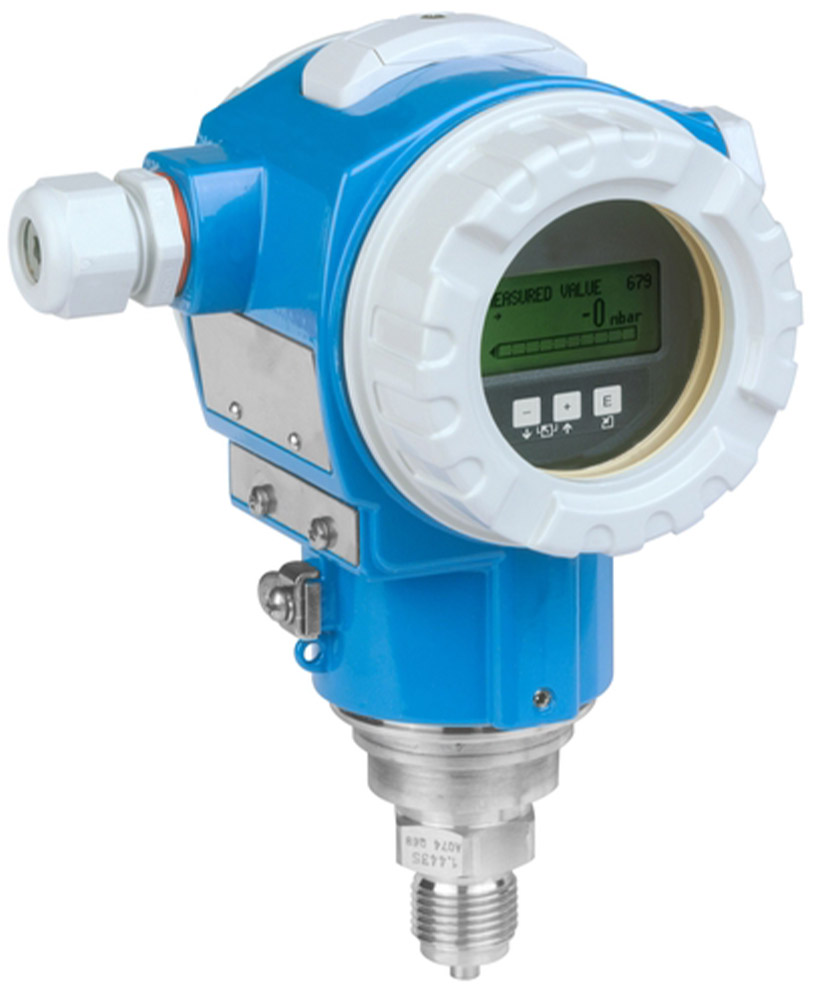

E+H Cerabar PMP71 Pressure Transmitter

Designed for high pressure applications up to 10,500 psi, gas, steam or liquid measurements.

Starting at $1,785.93

View Company Reviews
Manufactured
Includes
Availability
Product Specs

Features

  • Gas, steam or liquid measurements
  • Threads and flange connections
  • Gas tight feedthrough
  • Easy menu-guided commissioning
  • -40 to 257°F (-40 to 125°C) process temp
  • -15/0 up to 10,500psi (-1/0 up to 700bar) measuring range
  • HistoROM data management
  • Overload-resistant
  • Seamless and independent system integration

The E+H Cerabar PMP71 Pressure Transmitter features a metallic membrane and is typically used in process applications for pressure, level, volume or mass measurement in liquids or gases. PMP71 is designed for high pressure applications up to 700bar. Quick Setup with freely adjustable measuring range without pressure specification. Designed according to IEC 61508 for use in SIL2/3 safety systems and available with MID Parts Certificate suitable for custody transfer applications.

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number Approval Sensor Range and Sensor Overload Limit Process Connection Price Available
PMP71-VBC1W62RDAMA
Show Full Configuration
CSA C/US XP Cl.I Div.1 Gr.B-D, Ex d, zone 1,2
400bar/40MPa/6000psi gauge and 600bar/60MPa/9000psi
Thread ANSI MNPT1/2 hole, 316L
 $2,420.49 75 in stock
PMP71-VBC1S62RDAMA
Show Full Configuration
CSA C/US XP Cl.I Div.1 Gr.B-D, Ex d, zone 1,2
40bar/4MPa/600psi gauge and 160bar/16MPa/2400psi
Thread ANSI MNPT1/2 hole, 316L
 $2,420.49 49 in stock
PMP71-TBC1S61RDAMA
Show Full Configuration
FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2
40bar/4MPa/600psi gauge and 160bar/16MPa/2400psi
Thread ANSI MNPT1/2 hole, 316L
 $2,311.19 26 in stock
PMP71-ACC1PH1RAAAM
Show Full Configuration
Non-hazardous area
10bar/1MPa/150psi gauge and 40bar/4MPa/600psi
Thread ANSI MNPT1/2 FNPT1/4, 316L
 $2,303.57 12 in stock
PMP71-ANC1K612AAAA
Show Full Configuration
Non-hazardous area
2bar/200kPa/30psi gauge and 20bar/2MPa/300psi
Thread ANSI MNPT1, 316L, flush mount
 $2,812.11 5 in stock
PMP71-ABB1P61RAAAU
Show Full Configuration
Non-hazardous area
10bar/1MPa/150psi gauge and 40bar/4MPa/600psi
Thread ANSI MNPT1/2 FNPT1/4, 316L
 $2,013.68 4 in stock
PMP71-VBC1SE2RDAAA
Show Full Configuration
CSA C/US XP Cl.I Div.1 Gr.B-D, Ex d, zone 1,2
40bar/4MPa/600psi gauge and 160bar/16MPa/2400psi
Thread ANSI MNPT1/2 hole, 316L
 $2,218.59 4 in stock
PMP71-CAC1WE1RDAAU
Show Full Configuration
FM IS + XP Cl.I Div.1 Gr.A-D, zone 1,2
400bar/40MPa/6000psi gauge and 600bar/60MPa/9000psi
Thread ANSI MNPT1/2 hole, 316L
 $2,279.29 3 in stock
PMP71-CBC1H61RDAAA
Show Full Configuration
FM IS + XP Cl.I Div.1 Gr.A-D, zone 1,2
1bar/100kPa/15psi gauge and 10bar/1MPa/150psi
Thread ANSI MNPT1/2 hole, 316L
 $2,074.38 3 in stock
PMP71-ABC1S61RHAAA
Show Full Configuration
Non-hazardous area
40bar/4MPa/600psi gauge and 160bar/16MPa/2400psi
Thread ANSI FNPT1/2, 316L
 $1,928.65 2 in stock
PMP71-ABC1SE1RDAAA
Show Full Configuration
Non-hazardous area
40bar/4MPa/600psi gauge and 160bar/16MPa/2400psi
Thread ANSI MNPT1/2 hole, 316L
 $1,999.99 2 in stock
PMP71-AC31P11RDAAA
Show Full Configuration
Non-hazardous area
10bar/1MPa/150psi gauge and 40bar/4MPa/600psi
Thread ANSI MNPT1/2 hole, 316L
 $2,696.75 2 in stock
PMP71-XBC1H61RHAMA
Show Full Configuration
CSA C/US General Purpose
1bar/100kPa/15psi gauge and 10bar/1MPa/150psi
Thread ANSI FNPT1/2, 316L
 $2,201.89 2 in stock
PMP71-ABC1U61RHAAA
Show Full Configuration
Non-hazardous area
100bar/10MPa/1500psi gauge and 400bar/40MPa/6000psi
Thread ANSI FNPT1/2, 316L
 $1,928.65 1 in stock
PMP71-SBC1PB12AFAA
Show Full Configuration
FM IS Cl.I,II,III Div.1 Gr.A-G, NI Cl.I Div.2, AExia, zone 0,1,2,20,21,22
10bar/1MPa/150psi gauge and 40bar/4MPa/600psi
Thread ANSI MNPT1, 316L, flush mount
 $2,743.84 1 in stock
PMP71-TBC1S62RDAAA
Show Full Configuration
FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2
40bar/4MPa/600psi gauge and 160bar/16MPa/2400psi
Thread ANSI MNPT1/2 hole, 316L
 $2,147.25 1 in stock
PMP71-TBC2S11GAAAA
Show Full Configuration
FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2
40bar/4MPa/600psi abs and 160bar/16MPa/2400psi
Thread ISO228 G1/2 EN837, 316L
 $2,037.95 1 in stock

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
PMP71-RAC1MH1RAAAAJAKEKGKSN2PK Call for information 1 Call to order
PMP71-ABC1H41RAAAAN2 Call for information 2 Call to order
PMP71-TBC1FF1RDAAAPA Call for information 1 Call to order
PMP71-ANC1K61RAAAAP2 Call for information 5 Call to order
PMP71-TAC1SE1RAAAAN2 Call for information 1 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
