E+H Cerabar PMP51 Pressure Transmitter

Welded metal sensor for measurement in gases, steam or liquids.

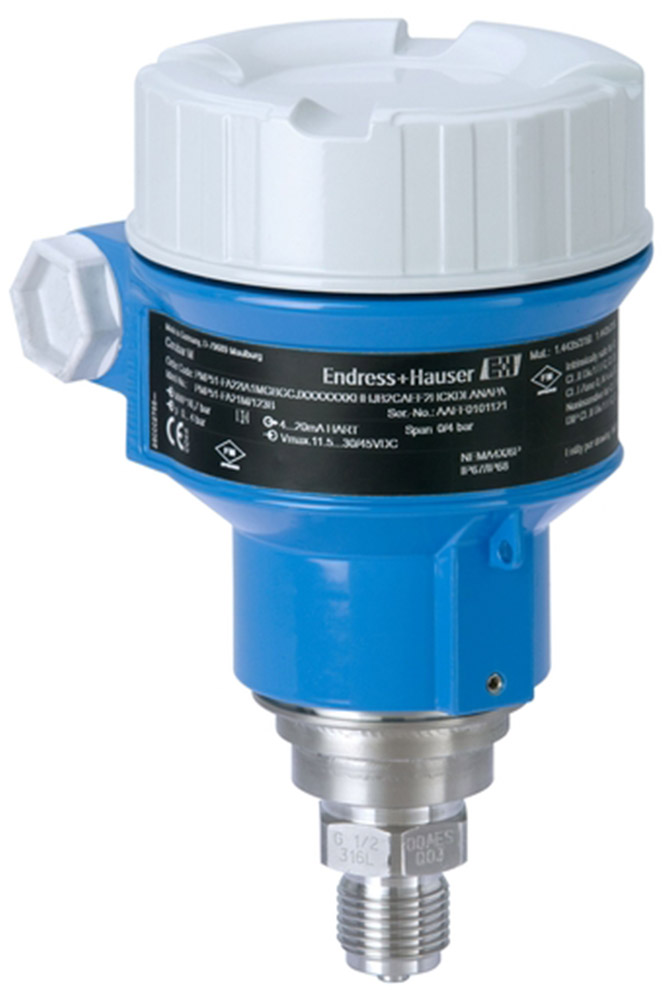

E+H Cerabar PMP51 Pressure Transmitter - Aluminum Housing

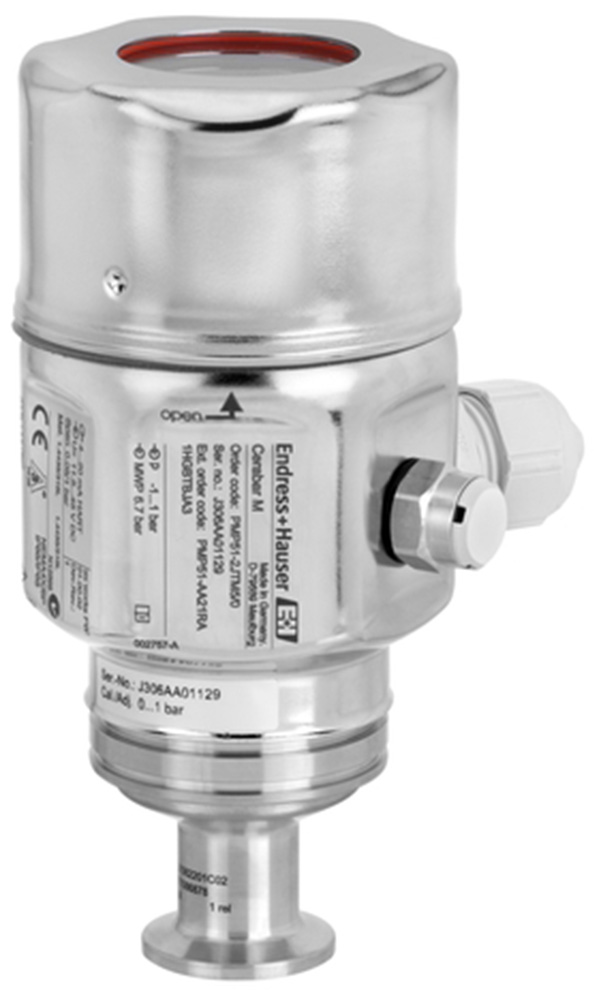

E+H Cerabar PMP51 Pressure Transmitter - 316L Hygienic Housing

Starting at $1,944.92

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

Welded metal sensor
Aluminum or stainless steel (316L) housing
-15/0 up to 6,000psi (-1/0 up to 400bar) measuring range
-40 to 266°F (-40 to 130°C) process temp
±0.15% accuracy
Flush mounted process connections
Threads, flanges or hygienic process connections
Up to SIL2, certified to IEC 61508/IEC 61511
Easy replacement of display or electronics
Seamless and independent system integration

The E+H Cerabar PMP51 Pressure Transmitter features a metal membrane and is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. PMP51 is designed for high pressure applications up to 400bar. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.

Spec Sheets

E+H Cerabar PMP51 Pressure Transmitter Datasheet PDF (3.6 MB)

Other

E+H Mechanical Accessories for Pressure Measuring Devices (2.7 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Approval	Sensor Range	Process Connection	Price	Available
PMP51-AA21SI1SGFRKJA1PA Show Full Configuration	Non-hazardous area	40bar/4MPa/600psi gauge, 400mH2O/1334ftH2O/16000inH2O	Thread ANSI MNPT1/2 hole 11.4mm, 316L	$1,885.45	10 in stock
PMP51-AA11JA1PGBTBJA3 Show Full Configuration	Non-hazardous area	10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O	Clamp ISO2852 DN18-22, 316L DIN32676 DN15-20, EHEDG, 3A, ASME-BPE	$2,092.20	4 in stock
PMP51-AA21RD1SGFG0JA3 Show Full Configuration	Non-hazardous area	40bar/4MPa/600psi gauge, 400mH2O/1334ftH2O/16000inH2O	Thread ISO228 G1/2 sealing O-ring fm= flush mount, 316L, adapter 52002643	$1,835.27	2 in stock
PMP51-AA21SI1FGFTJJA3 Show Full Configuration	Non-hazardous area	400mbar/40kPa/6psi gauge, 4mH2O/13ftH2O/160inH2O	Tri-Clamp ISO2852 DN38 (1-1/2"), 316L, DIN32676 DN40, EHEDG, 3A, ASME-BPE	$2,228.52	2 in stock
PMP51-AA21JD1PGBRKJA1MB Show Full Configuration	Non-hazardous area	10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O	Thread ANSI MNPT1/2 hole 11.4mm, 316L	$2,123.52	1 in stock
PMP51-AA21SI1FGKTDJA3 Show Full Configuration	Non-hazardous area	400mbar/40kPa/6psi gauge, 4mH2O/13ftH2O/160inH2O	Tri-Clamp ISO2852 DN40-51 (2"), 316L, DIN32676 DN50, EHEDG, 3A, ASME-BPE	$2,357.00	1 in stock
PMP51-FA21JB1KGJRKJA1F1JA Show Full Configuration	FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia	2bar/200kPa/30psi gauge, 20mH2O/67ftH2O/800inH2O	Thread ANSI MNPT1/2 hole 11.4mm, 316L	$2,109.40	1 in stock
PMP51-FA21JB1PGJAFJA1F1JA Show Full Configuration	FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia	10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O	NPS 2in Cl.150 RF, 316/316L flange ASME B16.5	$2,806.53	1 in stock
PMP51-FA21JD1PGBTJJA3 Show Full Configuration	FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia	10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O	Tri-Clamp ISO2852 DN38 (1-1/2"), 316L, DIN32676 DN40, EHEDG, 3A, ASME-BPE	$2,140.75	1 in stock

Base Price:: $1,247.18
Approval: Non-hazardous area
Output: 4 to 20 mA HART (+$274.76)
Display: LCD, push button on display/electronics (+$147.28)
Housing: F15 stainless steel hygiene, plastic window (+$31.34)
Electrical Connection: Plug M12, IP66/67 NEMA4X/6P (+$97.15)
Sensor Range: 40bar/4MPa/600psi gauge, 400mH2O/1334ftH2O/16000inH2O
Reference Accuracy: Standard
Calibration and Unit: Sensor range and psi
Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Language: Standard (English)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Accessory Enclosed: Mounting bracket, wall/pipe, 316L (+$87.74)
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,247.18
Approval: Non-hazardous area
Output: 4 to 20 mA (+$141.58)
Display: LCD, push button on display/electronics (+$147.28)
Housing: F31 Alu, glass window
Electrical Connection: Gland M20, IP66/68 NEMA4X/6P
Sensor Range: 10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O
Reference Accuracy: Standard
Calibration and Unit: Sensor range and mbar/bar
Process Connection: Clamp ISO2852 DN18-22, 316L DIN32676 DN15-20, EHEDG, 3A, ASME-BPE (+$556.16)
Membrane Material: 316L
Fill Fluid: Synthetic oil, FDA
Language: Standard (English)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,247.18
Approval: Non-hazardous area
Output: 4 to 20 mA HART (+$274.76)
Display: LCD, push button on display/electronics (+$147.28)
Housing: F15 stainless steel hygiene, glass window (+$31.34)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 40bar/4MPa/600psi gauge, 400mH2O/1334ftH2O/16000inH2O
Reference Accuracy: Standard
Calibration and Unit: Sensor range and psi
Process Connection: Thread ISO228 G1/2 sealing O-ring fm= flush mount, 316L, adapter 52002643 (+$134.71)
Membrane Material: 316L
Fill Fluid: Synthetic oil, FDA
Language: Standard (English)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,247.18
Approval: Non-hazardous area
Output: 4 to 20 mA HART (+$274.76)
Display: LCD, push button on display/electronics (+$147.28)
Housing: F15 stainless steel hygiene, plastic window (+$31.34)
Electrical Connection: Plug M12, IP66/67 NEMA4X/6P (+$97.15)
Sensor Range: 400mbar/40kPa/6psi gauge, 4mH2O/13ftH2O/160inH2O
Reference Accuracy: Standard
Calibration and Unit: Sensor range and psi
Process Connection: Tri-Clamp ISO2852 DN38 (1-1/2"), 316L, DIN32676 DN40, EHEDG, 3A, ASME-BPE (+$430.81)
Membrane Material: 316L
Fill Fluid: Synthetic oil, FDA
Language: Standard (English)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,247.18
Approval: Non-hazardous area
Output: 4 to 20 mA HART (+$274.76)
Display: LCD, push button on display/electronics (+$147.28)
Housing: F31 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O
Reference Accuracy: Standard
Calibration and Unit: Sensor range and mbar/bar
Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Language: Standard (English)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Cable PE, 5m/200inch + mounting bracket housing, wall/pipe,316L (+$454.30)
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,247.18
Approval: Non-hazardous area
Output: 4 to 20 mA HART (+$274.76)
Display: LCD, push button on display/electronics (+$147.28)
Housing: F15 stainless steel hygiene, plastic window (+$31.34)
Electrical Connection: Plug M12, IP66/67 NEMA4X/6P (+$97.15)
Sensor Range: 400mbar/40kPa/6psi gauge, 4mH2O/13ftH2O/160inH2O
Reference Accuracy: Standard
Calibration and Unit: Customised level and see additional spec. (+$73.62)
Process Connection: Tri-Clamp ISO2852 DN40-51 (2"), 316L, DIN32676 DN50, EHEDG, 3A, ASME-BPE (+$485.67)
Membrane Material: 316L
Fill Fluid: Synthetic oil, FDA
Language: Standard (English)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,247.18
Approval: FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia (+$40.72)
Output: 4 to 20 mA HART (+$274.76)
Display: LCD, push button on display/electronics (+$147.28)
Housing: F31 Alu, glass window
Electrical Connection: Thread M20, IP66/68 NEMA4X/6P
Sensor Range: 2bar/200kPa/30psi gauge, 20mH2O/67ftH2O/800inH2O
Reference Accuracy: Standard
Calibration and Unit: Customised pressure and see additional spec. (+$73.62)
Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
Membrane Material: 316L
Fill Fluid: Silicone oil
Language: Standard (English)
Calibration: Works calib. certificate 5-point (+$178.56)
Service: Without
Test Certificate: 3.1 Material cert, wetted metallic parts, EN10204-3.1 inspection cert (+$147.28)
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,247.18
Approval: FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia (+$40.72)
Output: 4 to 20 mA HART (+$274.76)
Display: LCD, push button on display/electronics (+$147.28)
Housing: F31 Alu, glass window
Electrical Connection: Thread M20, IP66/68 NEMA4X/6P
Sensor Range: 10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O
Reference Accuracy: Standard
Calibration and Unit: Customised pressure and see additional spec. (+$73.62)
Process Connection: NPS 2in Cl.150 RF, 316/316L flange ASME B16.5 (+$697.13)
Membrane Material: 316L
Fill Fluid: Silicone oil
Language: Standard (English)
Calibration: Works calib. certificate 5-point (+$178.56)
Service: Without
Test Certificate: 3.1 Material cert, wetted metallic parts, EN10204-3.1 inspection cert (+$147.28)
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,247.18
Approval: FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia (+$40.72)
Output: 4 to 20 mA HART (+$274.76)
Display: LCD, push button on display/electronics (+$147.28)
Housing: F31 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O
Reference Accuracy: Standard
Calibration and Unit: Sensor range and mbar/bar
Process Connection: Tri-Clamp ISO2852 DN38 (1-1/2"), 316L, DIN32676 DN40, EHEDG, 3A, ASME-BPE (+$430.81)
Membrane Material: 316L
Fill Fluid: Synthetic oil, FDA
Language: Standard (English)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
PMP51-AA21JD1PDFRKJA1N2PK	Call for information	3	Call to order
PMP51-AA21JD1HGAACJA1	Call for information	2	Call to order
PMP51-FD21JD1SGFTDJA3LB	Call for information	2	Call to order
PMP51-AA21SI1FGJTDJA3F1JAKBLW	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
