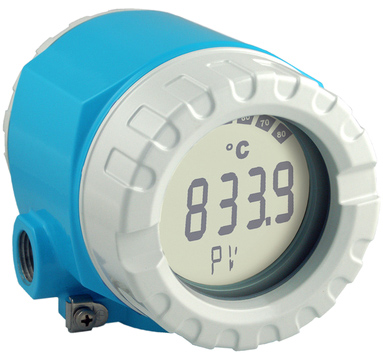

E+H iTEMP TMT162 Temperature Field Transmitter
Electronic monitoring, conversion and display of input signals, universal inputs.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Resistance temperature detector
- Universal input usable with:
- Resistance thermometer (RTD)
- Thermocouple (TC)
- Resistance thermometer (Ω)
- Voltage transmitters (mV)
- Diagnostics information according to NAMUR NE107
- International approvals such as FM, CSA, ATEX
- SIL certification as per IEC 61508:2010
- Galvanic isolation 2 kV (sensor input / current output)
- FOUNDATION Fieldbus™ ITK 6.1.2
- PROFIBUS PA Profile 3.02
- Predecessor: TMD833, iTEMP FF TMT165
Description
The E+H iTEMP TMT162 Temperature Field Transmitters monitor, convert and display input signals. The TMT162 feature high accuracy, reliability and long term stability in critical processes. The remote configurable transmitter monitors and transfers converted signals from RTD sensors and thermocouples as well as from resistance and voltage signals using selectively HART, FOUNDATION Fieldbus, PROFIBUS PA communication.
The display shows large measured values, bar graph and status indication. The diagnostics information is in compliance with NAMUR NE107. Optional international approvals include FM, CSA (IS, NI, XP and DIP) and ATEX (Ex ia, Ex nA nL, Ex d and dust ignition-proof). The universal input is usable for resistance thermometer (RTD), thermocouple (TC), resistance thermometer (Ω), voltage transmitters (mV)
In Stock
Manufacturer Stock
This stock is typically available to ship in 2 - 4 working days
Part Number | Price | Available | |
---|---|---|---|
TMT162-A21241BKB |
$2,286.78 | 18 in stock | |
TMT162-P2231RCAA |
$2,146.46 | 11 in stock | |
TMT162-D21141BKA |
$2,020.76 | 7 in stock | |
TMT162-F2121KBKE |
$2,561.07 | 4 in stock | |
TMT162-A663AAAAE |
$2,501.77 | 2 in stock | |
TMT162-C21231BKA75 |
$2,170.39 | 1 in stock | |
TMT162-M21331BKA |
$2,367.82 | 1 in stock | |
TMT162-O61131DKE |
$2,447.74 | 1 in stock |
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
Part Number | Price | Available | |
---|---|---|---|
TMT162X-HL | Call for information | 1 | Call to order |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
