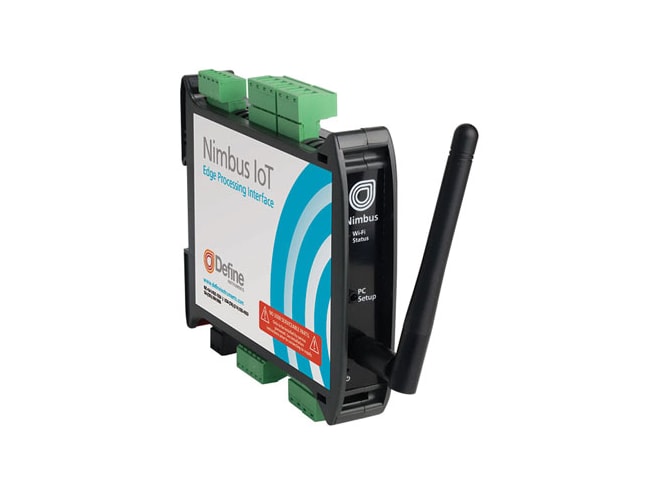

Define Instruments Nimbus IoT Cloud Interface

2 4–20ma inputs (non-isolated), 4 digital inputs, direct wireless interface, optional RS485 ModBus RTU master/slave interface.

Features

  • DCS Define Cloud Services (DCS) connection
  • MQTT with Transport Layer Security (TLS 1.2)
  • RP-SMA Antenna Connection on Wifi Units
    SMA Antenna Connection on Cellular Units
  • Data record store and forward record buffer
  • RTC record data time stamp at origin
  • 2 Process (4–20mA) inputs
  • 4 Digital inputs
  • 3 Relay outputs
  • 1 logic output (Open collector)

The Define Instruments Nimbus IoT Cloud Interface collects signals from industrial equipment for processing and publishing to the Cloud. Designed for monitoring small machines and automation systems it enables data visibility for determining machine health or process efficiency. Industrial grade digital inputs, relay contacts and analog process (4–20mA) input channels easily link process sensor inputs and standalone legacy automation such as PLCs, variable frequency drives and other discrete control systems to Industrial IoT cloud services.

Additionally, the Nimbus has a built-in Cloud interface so you can send data from your machine to the Cloud It is useful for scheduling maintenance, replenishing consumables and other "upkeep" tasks.

Antennas should be mounted outside of metal enclosures. Extension cables available as accessories

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Define Instruments Cloud Data Plans (Annual Subscription)
Define Instruments Cloud Data Plans (Annual Subscription)

Wifi or LTE Cat M1 service plans available, 4.2Mb, 25Mb, 46Mb and 250Mb monthly plans available.

Starting at $0.00
Define Instruments Bridge Key Communications Kit
Define Instruments Bridge Key Communications Kit

PC connection to all USB-programmable Define Instruments, required for Zen, Javelin, Twin Link, Sentry, Merlin, Pathfinder & TM Series.

In Stock
$59.00

Accessories

Please consider these optional accessories.

Define Instruments Antenna Extension Cable
Define Instruments Antenna Extension Cable

30cm (approximately 1ft) cable separates antenna from point-to-point transmitter for mounting unit in an enclosure, negates FCC approval.

In Stock
$20.00
Define Instruments Monopole Antenna
Define Instruments Monopole Antenna

Replacement antenna for Define Instruments wireless models available in 3, 6, 8 or 9dBi.

Some Models in Stock
Starting at $12.00
Define Instruments WG-PSU Power Adapter
Define Instruments WG-PSU Power Adapter

Compatible with all Define Instruments wireless models.

Some Models in Stock
Starting at $21.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Identifying Overheated Rollers in Conveyor Belt Systems

The Background: Our customer is a large industrial facility with multiple conveyor belt systems used to move material throughout the plant. They seek a consolidated means of monitoring the rollers for overheating.

The Problem: Overheated rollers are a leading cause of fires in factories. Due to the continuous motion of conveyor systems, if a bearing wears out it can quickly overheat and ignite the rubber conveyor belt. Even relatively small conveyors can have hundreds of rollers making it difficult to monitor them all.

The Solution: We recommended the Define Instruments Nimbus smart relay. The Nimbus can interface with temperature sensors and wirelessly relay data to a display or alarm. This is a simple, effective means of monitoring the temperature of the conveyor rollers without having to run additional wiring.

Part Number Power Supply Wireless Communication RS232/485 Communications Price Available
NIM2-LV-CM1
Show Full Configuration
10-32 VDC power supply
Cellular modem (eMTC) LTE Cat M1
No RS232/485 communications
 Call for pricing 6 in stock
NIM2-HV-WIF
Show Full Configuration
85-265 VAC/DC power supply
Wifi (801.11)
No RS232/485 communications
 Call for pricing 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
