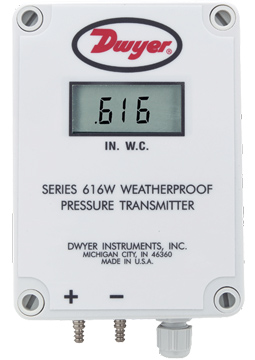

Dwyer 616WL Differential Pressure Transmitter
Low Ranges Down to 0.25 in w.c. (60 Pa), NEMA 4X Housing, 3 digit LCD digital display.
Overview
Features
- Low Ranges Down to 0.25 in w.c. (60 Pa)
- ±0.50% F.S. accuracy
- Air and non-combustible, compatible gases
- NEMA 4X (IP66) enclosure rating
- 3 digit LCD digital display
- Polycarbonate case
Description
The Dwyer 616WL Differential Pressure Transmitter senses very low pressures of air and non-combustible, compatible gases and sends a standard 4-20 mA output signal. All models, including those featuring the 3 digit LCD digital read-out, are factory calibrated to specific ranges as listed in the chart below.
Positive, negative and differential pressures can be measured within a full span accuracy of ±0.50%. This weatherproof unit is enclosed in a polycarbonate case, designed to meet (IP66/NEMA 4X). Internal digital push button zero and span allow for quick and simple field calibration.
Applications for the 616WL include:
- Low pressure applications
- Outdoor HVAC
- Dust collection
- Roof-top equipment
