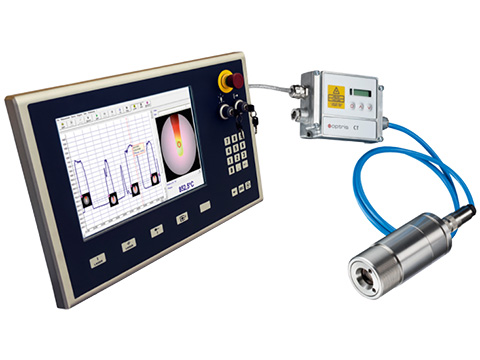

Optris CTvideo 3M Infrared Temperature Sensor

Fixed infrared pyrometer with video for the accurate low temperature measurement of metals from 122 to 3272°F with 2.3µm spectral range.

Starting at $1,665.00

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • 122 to 3272°F temperature range
  • Optical resolution
    • 60:1 (3ML)
    • 100:1 (3MH)
    • 300:1 (3MH1-3MH3)
  • 2.3μm spectral range
  • 1ms response time
  • 0.1 to 1.1 emissivity
  • 160mA max current draw
  • 8 to 36VDC power supply
  • IP65 NEMA-4 rated
Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

  • Mounting nut
  • ACCTLFB mounting bracket
  • Cable
  • Electronic box with LCD display
  • Programming keys
  • CompactConnect software
  • 5m USB cable
  • Manual

The Optris CTvideo 3M infrared temperature sensor uses both video and laser crosshair sighting to align sensors for accurate low-temperature measurements of metal or ceramic surfaces as small as 0.02 inches. Its short measuring wavelength of 2.3μm reduces errors when measuring surfaces with low or unknown emissivity. The CTvideo 3M has temperature ranges from 122 to 3272°F and can be used in temperatures up to 158°F without additional cooling.

The CTvideo 3M features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis. Field selectable analog output options include 0/4-20mA, 0-5, and 0-10 V, type K or J thermocouples, alarm, and optional USB 2.0 and Ethernet outputs.

The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.

Software

Optris Compact Connect Software
Optris Compact Connect Software

Temperature analysis software for simple and fast parameterization of compact and high performance fixed IR thermometers.

$0.00

Accessories

Please consider these optional accessories.

Optris CXLaser / CXVideo Mounting Bracket
Optris CXLaser / CXVideo Mounting Bracket

Stainless steel, available as adjustable in 1 or 2 axis, for CT/CSlaser & CT/CSvideo.

Mfg. has some models in stock
Starting at $47.00
Optris ACCTLAP Air Purge Collar
Optris ACCTLAP Air Purge Collar

G 1/8in thread fitting & 6x8mm hose connection for CT/CSlaser & CT/CSvideo.

Mfg. has stock
$120.00
Optris ACCTLW Water Cooled Housing
Optris ACCTLW Water Cooled Housing

Stainless steel, for temperatures up to 175°C.

Mfg. has stock
$273.00
Optris ACCTRAIL Rail Mount Adapter
Optris ACCTRAIL Rail Mount Adapter

Mounts CT electronics on a DIN rail.

Mfg. has stock
$26.00
Optris ACCTCOV Closed Cover
Optris ACCTCOV Closed Cover

For CxL, CxV, CT XL & CTratio electronic box.

Mfg. has stock
$26.00
Optris ACCTVHTCERT Calibration Certificate
Optris ACCTVHTCERT Calibration Certificate

Certificate of Calibration with 3 reference temperatures for CTvideo 1M, 2M & 3M.

$195.00
Optris Advanced Cooling Jacket
Optris Advanced Cooling Jacket

Protection for harsh industrial environments, operates at ambient temperatures up to 599°F, available with additional mounting support.

Mfg. has some models in stock
Starting at $1,400.00
Optris Cooling Jacket Mounting Bracket
Optris Cooling Jacket Mounting Bracket

Available as adjustable in either one or two axes .

Starting at $185.00
Optris Cooling Jacket Protective Grid
Optris Cooling Jacket Protective Grid

Available in 2 & 3.15mm size, recommended component for the Optris cooling jacket, not for PI series with 48° lens.

Mfg. has some models in stock
Starting at $136.00
Optris Focusing Unit & Front End
Optris Focusing Unit & Front End

Required component for Optris advanced cooling jacket.

Mfg. has some models in stock
Starting at $195.00
Optris ACPIUSBSGB USB-Server Gigabit
Optris ACPIUSBSGB USB-Server Gigabit

USB-Ethernet converter for PI series infrared cameras, includes 24VDC power supply.

Mfg. has stock
$580.00
Optris M48 Pipe Flange
Optris M48 Pipe Flange

Fitting to sighting tubes with M48x1.5 thread; for high ambient temperatures.

Starting at $105.00
Optris ACHAPA Pipe Adapter
Optris ACHAPA Pipe Adapter

With M48x1.5 internal thread.

$47.00
Optris ACHAST300 Sighting Tube
Optris ACHAST300 Sighting Tube

M48x1.5, 300mm length.

$95.00
Optris ACHAMA Mounting Adapter
Optris ACHAMA Mounting Adapter

Mounting and pipe flange including screws.

$235.00

Manufacturer Stock

This stock is typically available to ship in 2 - 3 working days.

Part Number Price Available
OPTCTV3MH1SFVCB10C
Show Configuration
$1,745.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 5 weeks". Click here to select options
