Optris CTvideo 1M / 2M Infrared Temperature Sensor

Fixed infrared pyrometer with video for measuring the temperature of metal up to 3992°F (2200°C).

Optris CTvideo 1M / 2M Infrared Temperature Sensor — Optris CTvideo 1M / 2M Infrared Thermometer

Optris CTvideo 1M / 2M Infrared Thermometer

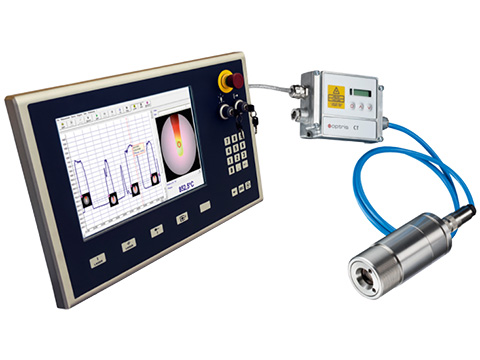

Optris CTvideo 1M / 2M Infrared Thermometer with Screenshot
Optris CTvideo 1M / 2M Infrared Thermometer Product Video

Starting at $1,665.00

View Company Reviews

Manufactured

By Optris

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 6 weeks

Product Manual Product Specs

Features

482 to 3992°F (250 to 2200°C)
Spectral range
- 1µm (1M)
- 1.6µm (2M)
Optical resolution
- 150:1 (1ML, 2ML)
- 300:1 (1MH, 1MH1, 2MH, 2MH1)
Adjustable focus
0.1K temperature resolution
0.1 to 1.1 emissivity
1ms response time
160mA max current draw
8 to 36VDC power supply
IP65 NEMA-4 rated

Looking for a fever screening solution? Here's a list of approved items.

Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

Mounting nut
ACCTLFB mounting bracket
Cable
Electronic box with LCD display
Programming keys
CompactConnect software
5m USB cable
Manual

The Optris CTvideo 1M / 2M infrared temperature sensor uses both video and laser crosshair sighting to align sensors for accurate temperature measurements of metal or ceramic surfaces as small as 0.02 inches. Its short measuring wavelength of 1 or 1.6μm reduces errors when measuring surfaces with low or unknown emissivity. The CTvideo 1M / 2M has temperature ranges from 482 to 3992°F (250 to 2200°C) and can be used in temperatures up to 158°F (70°C) without additional cooling.

The CTvideo 1M / 2M features a USB interface, peak hold, valley hold, average, and an extended hold function with threshold and hysteresis. Field selectable analog output options include 0/4-20mA, 0-5 and 0-10 V, type K or J thermocouples, and alarm. It also features laser switch-off at 122°F (50°C).

The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.

Spec Sheets

Optris CTvideo 1M / 2M Infrared Thermometer Datasheet PDF (909 KB)

Manuals

Optris CTvideo 1M / 2M Infrared Thermometer Manual PDF (1.6 MB)

Links

Software

Optris Compact Connect Software

Optris Compact Connect Software

Temperature analysis software for simple and fast parameterization of compact and high performance fixed IR thermometers.

Accessories

Please consider these optional accessories.

Optris CXLaser / CXVideo Mounting Bracket

Optris CXLaser / CXVideo Mounting Bracket

Stainless steel, available as adjustable in 1 or 2 axis, for CT/CSlaser & CT/CSvideo.

Starting at $47.00

Optris ACCTLAP Air Purge Collar

Optris ACCTLAP Air Purge Collar

G 1/8in thread fitting & 6x8mm hose connection for CT/CSlaser & CT/CSvideo.

Optris ACCTLW Water Cooled Housing

Optris ACCTLW Water Cooled Housing

Stainless steel, for temperatures up to 175°C.

Optris ACCTRAIL Rail Mount Adapter

Optris ACCTRAIL Rail Mount Adapter

Mounts CT electronics on a DIN rail.

Optris ACCTCOV Closed Cover

Optris ACCTCOV Closed Cover

For CxL, CxV, CT XL & CTratio electronic box.

Optris ACCTVHTCERT Calibration Certificate

Optris ACCTVHTCERT Calibration Certificate

Certificate of Calibration with 3 reference temperatures for CTvideo 1M, 2M & 3M.

Optris Advanced Cooling Jacket

Optris Advanced Cooling Jacket

Protection for harsh industrial environments, operates at ambient temperatures up to 599°F, available with additional mounting support.

Starting at $1,400.00

Optris Cooling Jacket Mounting Bracket

Optris Cooling Jacket Mounting Bracket

Available as adjustable in either one or two axes .

Starting at $185.00

Optris Cooling Jacket Protective Grid

Optris Cooling Jacket Protective Grid

Available in 2 & 3.15mm size, recommended component for the Optris cooling jacket, not for PI series with 48° lens.

Starting at $136.00

Optris Focusing Unit & Front End

Optris Focusing Unit & Front End

Required component for Optris advanced cooling jacket.

Starting at $195.00

Optris ACPIUSBSGB USB-Server Gigabit

Optris ACPIUSBSGB USB-Server Gigabit

USB-Ethernet converter for PI series infrared cameras, includes 24VDC power supply.

Optris M48 Pipe Flange

Optris M48 Pipe Flange

Fitting to sighting tubes with M48x1.5 thread; for high ambient temperatures.

Starting at $105.00

Optris ACHAPA Pipe Adapter

Optris ACHAPA Pipe Adapter

With M48x1.5 internal thread.

Optris ACHAST300 Sighting Tube

Optris ACHAST300 Sighting Tube

M48x1.5, 300mm length.

Optris ACHAMA Mounting Adapter

Optris ACHAMA Mounting Adapter

Mounting and pipe flange including screws.
