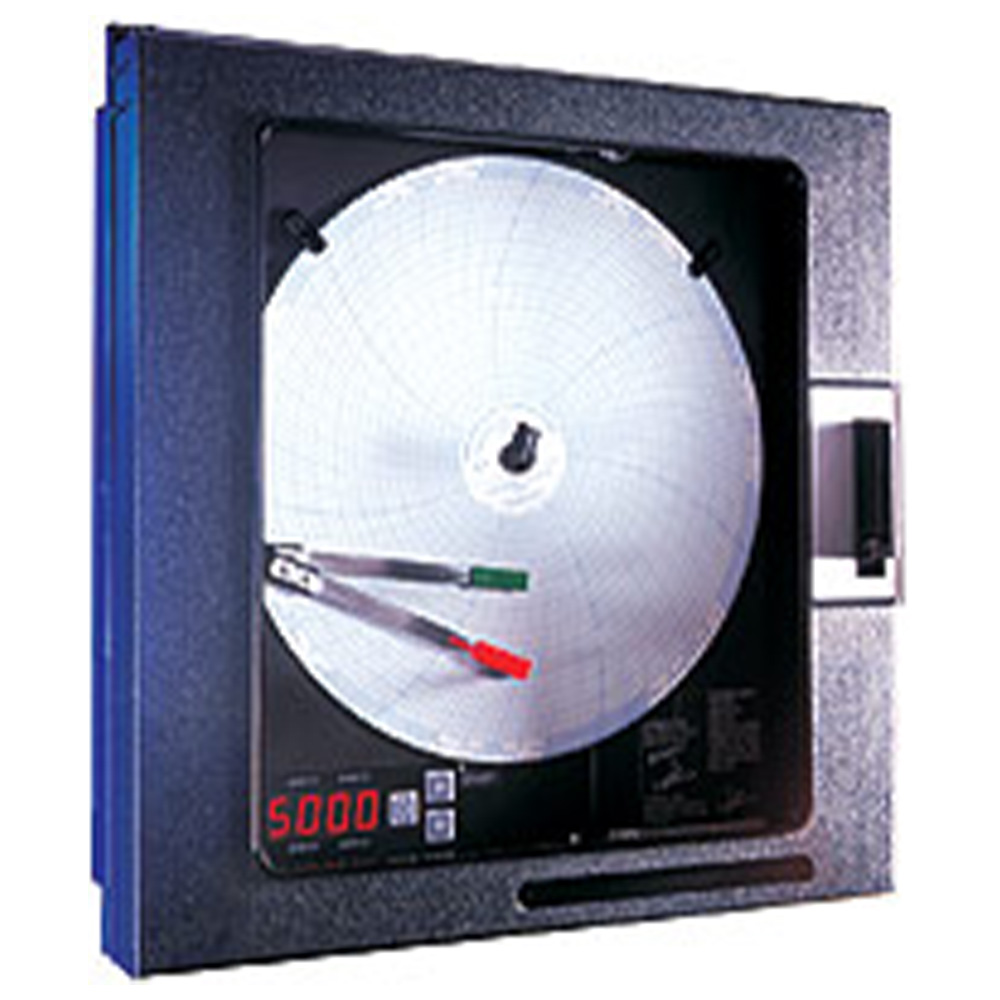

Partlow MRC 5000 Circular Chart Recorder
10-inch digital chart recorder and controller with one or two pens, first box of charts is free.
- By Partlow
-
Some models in stock. View available part numbers.
Overview
Features
- Up to two mechanical relay outputs for each pen
- RS485 communications option
- Setup/Calibration seal
- Protects the unit against unauthorized changes
- Universal inputs and power supply
- NEMA 3 (NEMA 4X optional)
- UL, C-UL, CE and FM (limit model)
- 2 year factory warranty
- Complies with Section 1065 of ARRA-09 requirements
This is a replacement for the Partlow ARC 4100 Circular Chart Recorder.
Description
The Partlow MRC 5000 circular chart recorder was designed with the latest innovations in recording technology, enclosures, and functionality. It is slim, trim, and simple. The MRC 5000 is a digital circle chart recorder capable of measuring, recording, and controlling up to two process variables from a variety of inputs. Two basic versions of the MRC5000 are available for trend recording – one or two pens.
The straightforwardness of the Partlow circular chart recorder is immediately evident just by looking at the unit's face. The operator interface, a four-digit display with three-button keypad, is made for simple daily operation and easy configuration. The MRC5000's clear prompting scheme provides rapid access to all configuration and operation data. The MRC 5000's operator interface also provides access to test and calibration facilities with a convenient dual function MODE switch.
A quick look inside the casing and at the chart itself also speaks to the straightforward, functional design of the MRC 5000. You will find just one jumper to configure each port. The two pens, each with configurable spans, are positioned smoothly without any slidewire feedback; this simplifies design and improves reliability. In addition, the 10 inch chart rotates at the speeds you select.
Finding a place to install the MRC 5000 is easy, with its compact 2.5 inch panel depth and short 1.3 inch protrusion from the front panel. And, don't worry about harsh environments – the MRC 5000 comes standard with a NEMA 3 rating.
Applications for the MRC 5000 include:
The MRC 5000 is ideal for basic digital recording applications with shallow depth panel requirements.
- Process validation
- Trend analysis
- Regulatory compliance
- Product safety
The MRC5000 can be used in industries such as oven, chamber, furnaces, heat treating, food processing, and harsh water environments.
Documents
Spec Sheets
Manuals
- Partlow MRC 5000 Circular Chart Recorder Manual PDF (684 KB)
- Partlow MRC 5000 Circular Chart Controller Manual PDF (298 KB)
Other
Links
Accessories
Accessories
Please consider these optional accessories.
Pens
Standard Zero Based Charts
Standard Non-Zero-Based Charts
Reverse Range Charts
Dual Range Charts
Charts with No Numbers on Divisions
Unique Range Charts
Applications
This product can be used in the following applications:
In Stock
| Part Number | Price | Available | |
|---|---|---|---|
|
MRC 51000011 |
$2,204.00 | 4 in stock | |
|
MRC 51100011 |
$2,931.00 | 2 in stock | |
|
MRC 52010021 |
$2,664.00 | 2 in stock | |
|
MRC 51120011 |
$3,306.00 | 1 in stock | |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 5 weeks". Click here to select options
