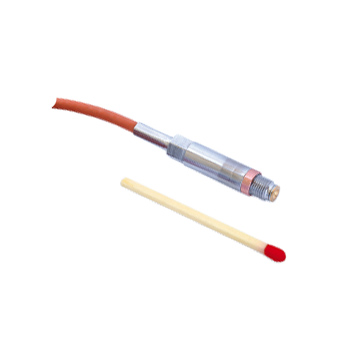

Keller Series M5 Pressure Transducer

Pressure ranges up to 30 bar absolute, M5 x 0.5 fine thread pressure connection, up to 50 kHz bandwidth.

Starting at $1,214.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 3-5 weeks
Product Specs

Features

  • Pressures ranges:
    • 0 to 3 bar absolute
    • 0 to 10 bar absolute
    • 0 to 30 bar absolute
  • -40 to 356°F (-40 to 180°C) temp range
  • M5 x 0,5 fine thread pressure connection
  • Up to 50 kHz bandwidth
  • Teflon FEP cable with IP67 ferrule
  • Insensitive to structure-borne vibration
  • Compact design

The Keller Series M5 Pressure Transducer are designed for taking measurements at close proximity in places where access is a problem and in very thin pipes. The front-flush design prevents gas bubbles interfering with fluid measurements and supports measurements up to 200°C without a cooling adapter. The extreme dynamic range of 0 to 50 kHz makes it possible to record very fast pulsations just as reliably as those associated with static pressure values. A vibration-resistant Teflon FEP cable (IP67) ensures the 80 mV output signal is routed securely out of the hot environment.
