Starting at $7,040.80
  • Call for availability

Overview

Features

  • -31 to 329°F (-35 to 165°C) temperature range
  • ±0.2 K accuracy
  • 0.1°C resolution
  • Tank dimensions: 60 x 165mm (2.36 x 5.91in)
  • approx. 0.6 litres volume
  • 5.91in (150mm) insertion depth
  • Heating time: 45 min from 68 to 320°F
  • Cooling time: 30 min from 68 to -4°F

Description

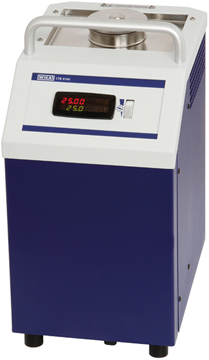

The Mensor CTB9100-165 Calibration Bath operates with temperature-controlled liquid tanks with a useable working range of 60 x 150 mm (2.36 x 5.91 in) depth. The maximum insertion depth of the test items reduces the heat conduction errors and thus leads to smaller measurement uncertainties. The calibration temperature, adjusted simply using two keys on the controller, can be very quickly controlled. The actual and set temperature can be displayed simultaneously on a large 4-digit, high-contrast LC display. Thus reading errors are virtually eliminated.

Applications for the CTB9100-165 include:

  • Calibration in the pharmaceutical industry and in the food industry
  • On-site calibration of short temperature probes
  • Simultaneous calibration of several probe
