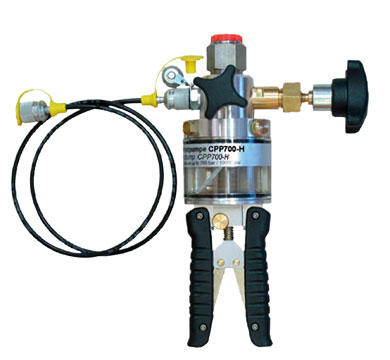

WIKA CPP700 Hydraulic Hand Pump
Test pump for pressure generation up to 700 bar (10,000 psi).
Overview
Features
- Fluid based on mineral oil or single distilled water
- Water-based hydraulic fluids are not suitable
- 200cm³ fluid reservoir
- G1/2 female thread, freely rotating pressure connection
- Fine-adjustment valve
- Anodized aluminum, brass, stainless steel, & ABS
- FKM and NBR standard sealings
- Ergonomic handling
- EAC & MTSCHS approvals
What's in the Box
- 1m Minimess test hose
- G1/4 female bulkhead connector
- Operating instructions
Description
The WIKA CPP700 hydraulic hand pump is used for generating pressure to test, adjust and calibrate mechanical and electronic pressure measuring instruments by means of comparative measurements. Testing can take place in a laboratory or workshop, or on site at the measuring point. When the device under test and a suitably accurate reference measuring instrument are connected to the test pump, after actuating the pump, the same pressure will act on both measuring instruments. Calibration or adjustment of the device under test can be carried out by comparing the two measured values at any pressure value.
