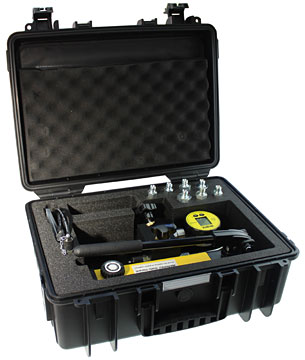

IKM PC705M IS Pressure Calibrator

Intrinsically safe pressure calibrator for hazardous areas, hydraulic pump generates test pressures up to 700 bar.

$6,281.67

View Company Reviews
Part Number
  • PC705M
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • 0 to 700 bar pressure range
  • G1/4 inch pressure connection
  • ±0.05 FS accuracy
  • RS485 interface
  • Graphical LCD display
  • Portable for on-site calibration (8kg)
  • IP65 protection
  • EEx/IS certification

What's in the Box

  • Test hose
  • Adapter fittings
  • Hard carrying case

The IKM PC705M IS pressure calibrator is compact and rugged. It was originally designed for use on offshore drilling rigs, offering reliable performance under the most severe conditions. Each unit is calibrated against precision pressure equipment which is traceable to national standards and each unit is supplied with a calibration certificate.

The PC705M features high accuracy and stability which is achieved by use of a piezoresistive transducer with a built-in temperature compensation. Unlike some other pressure calibrators, accuracy is maintained while decreasing pressure which makes the unit ideal for verification of hysteresis. All units are calibrated in positive as well as in negative direction.

You can switch the engineering units between these options: bar, mbar, hPa, kPa, MPa, PSI, kp/cm2, cmH2O, mH2O, inH2O, ftH2O, mmHg, and inHg.

Hose test kit, 1m flexible hose, 8,000 psi, 1/4 BSP female gauge adapter
Hose test kit, 1m flexible hose, 8,000 psi, 1/4 BSP female gauge adapter

$260.40
IKM Instrutek PHK-8000-3M Hose Test Kit
IKM Instrutek PHK-8000-3M Hose Test Kit

3 meter flexible hose 8000 PSI for use with PC705M.

Call for pricing

Here's how some of our customers use this product...

Calibration of Shipboard Pressure Gauges and Switches

The Background: Our customer is transportation company that maintains a small fleet of ferries and other ships. They require an effective means of calibrating shipboard gauges and pressure switches.

The Problem: Pressure calibrations aboard a ship present unique difficulties, particularly the extremely tight locations in which many of the gauges and switches are found. Additionally, calibrators need DVN approvals for shipboard use.

The Solution: We recommended the IKM PC705M, a highly compact and rugged pressure calibrator. Originally designed for use on offshore drilling rigs, the PC705M offers reliable performance under the most severe conditions and the most hard-to-reach spaces. The PC705M has DNV approval for the Marine Market.
