E+E EE244 Wireless Temperature / RH / CO2 Transmitter

Modular wireless transmitter for temperature, humidity and CO2, up to 500 transmitters, interchangeable probes.

Starting at $1,150.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Manual Product Specs

Features

  • Up to 500 transmitters in 1 wireless network
  • Interchangeable probes
  • Remote sensors at up to 10
  • Battery life of up to 3 years
  • 2.4 GHz transmission frequency
  • IEEE 802.15.4 transmission system
  • 10mW transmission power
  • 1000m radio range (in open field)

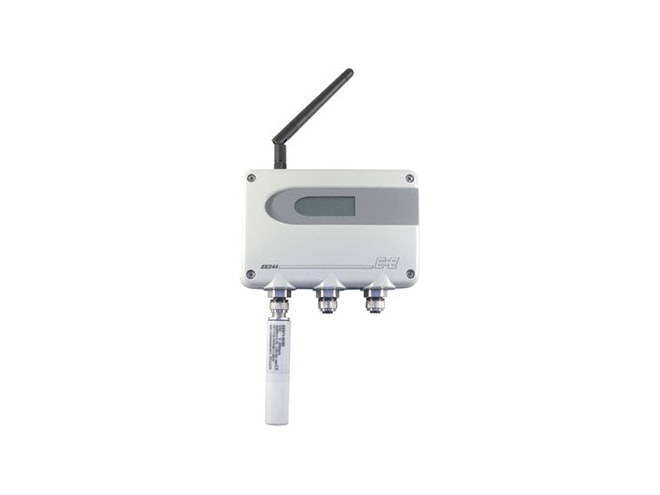

The E+E EE244 Wireless Temperature / RH / CO2 Transmitter is based on the IEEE 802.15.4 protocol with a transmission frequency of 2.4 GHz. The EE244 measures up to three physical quantities: relative humidity, temperature and CO2. The EE244 accommodates up to 3 sensing probes, which can be plugged directly into the EE244 basic unit or with a connection cable up to 10m long. The robust enclosure features an external antenna and an optional display.

The EE244 wireless transmitter is powered by four alkaline AA batteries, but can also be connected to an external power supply. Depending on the number of probes, the physical quantities measured, and the sampling and transmission rate, the batteries may last up to 3 years.

Applications for the EE244 include:

  • Pharmaceutical industry
  • Warehouses
  • Control rooms
  • Cooling chambers
  • Museums
  • HVAC systems
  • Food industry

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+E EE07 Sensor Probes
E+E EE07 Sensor Probes

Interchangeable Humidity / Temperature Probes for OEM Applications.

Starting at $331.00
E+E EE03 OEM Humidity / Temperature Module
E+E EE03 OEM Humidity / Temperature Module

OEM applications, digital two wire output, interchangeable plug-in design, traceable calibration.

$177.00

Accessories

Please consider these optional accessories.

E+E EE242 Wireless Base Station
E+E EE242 Wireless Base Station

Base station for up to 500 wireless transmitters, ethernet interface, 4-line display.

Starting at $1,997.00
E+E HA010330 Antenna Cable
E+E HA010330 Antenna Cable

Antenna cable, 6.5ft (2m).

$45.00
