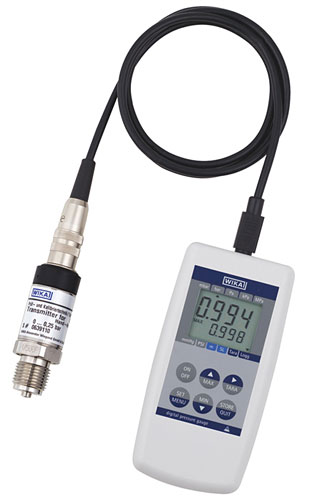

WIKA CPH6200 Pressure Indicator
Single or dual channel handheld pressure indicator for use with CPT6200 pressure sensors.
Overview
Features
- Measuring range & accuracy depend on the CPT6200 sensor
- User selectable pressure units
- bar, mbar, psi, Pa, kPa, MPa, mmHg or inHg
- Integrated data logger with discrete value & cyclic storage
- Up to 99 data points via key press
- Automatic logging of up to 10,000 values
- Cycle time is selectable from 1 second to 1 hour
- Uses 9V battery
- Mains supply or rechargeable options available
What's in the Box
- 1.1m cable (per channel)
- 9V battery
Description
The WIKA CPH6200 pressure indicator can be used for measuring both gauge and absolute pressure. Differential pressure measurement is possible with the 2-channel version and two connected CPT6200 reference pressure sensors.
An integrated data logger and various other functions such as Min, Max, Hold, Tare, zero point adjustment, alarm, power-off, peak value detection (1,000 measurements/s), average value filter, etc. ensure that the CPH6200 can be used for many different applications.
Documents
Accessories
Software
Accessories
Please consider these optional accessories.
Applications
This product can be used in the following applications:
