Fluke 438-II Power Quality & Motor Analyzer

Test electrical and mechanical performance of electric motors, and evaluate power quality with a single test tool, Fluke Connect optional.

Fluke 438-II Power Quality & Motor Analyzer

Fluke 438-II Power Quality & Motor Analyzer

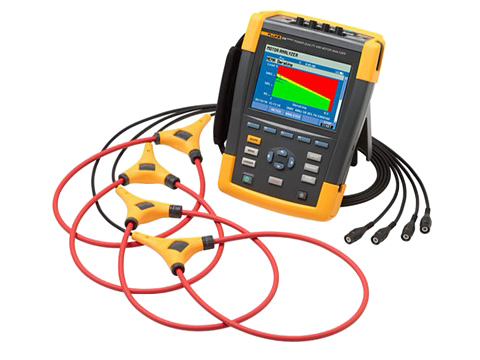

Fluke 438-II Power Quality & Motor Analyzer with Fluke Connect & Flex Probes

Retired products cannot be ordered

Please call us for a recommended replacement

View Company Reviews

Manufactured

By Fluke

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Measure key parameters on direct-on-line motors
- 1 to 1000hp (0.7 to 746kW) mechanical power
- 0 to 10,000lb/ft or Nm torque range
- 0 to 3600rpm motor speed
- 0 to 100% motor efficiency
Identify dips, swells, transients, harmonics & unbalance
Waveform capture function captures 100/120 cycles (50/60 Hz)
3 years parts & labor warranty on main instrument
600 V CAT IV/1000 V CAT III rated
CE & CSA approved

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

Test lead set
Battery
Power adapter
8GB SD card
Soft case

The Fluke 438-II power quality and motor analyzer adds key mechanical measurement capabilities for electric motors to the advanced power quality analysis functions of the Fluke 430 Series. Quickly and easily measure and analyze key electrical and mechanical performance parameters such as power, harmonics, unbalance, motor speed, torque and mechanical power without the need of mechanical sensors.

It will help locate, predict, prevent, and troubleshoot power quality problems in three-phase and single-phase power distribution systems, while giving technicians the mechanical and electrical information they need to effectively evaluate motor performance.
