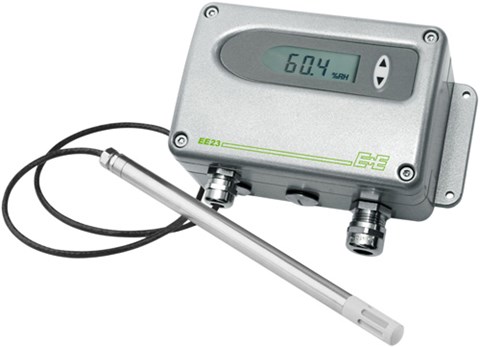

E+E EE23 Humidity / Temperature Transmitter
Measures humidity and temp, calculates dew point and frost point, designed for industrial applications up to 356°F (180°C).
Overview
Features
- Measures humidity and temperature
- Calculates dew point and frost point
- Wall, duct, remote, & miniature remote probe types
- Polycarbonate or metal enclosure
- 0 to 100% RH range
- -40 to 356°F (-40 to 180°C) temp range
- 0 to 5/10V, 0/4-20mA outputs
- Easy field adjustment
Description
The E+E EE23 Humidity / Temperature Transmitter is designed for industrial and high-end HVAC applications. Relative humidity and temperature are accurately measured and dew/frost point temperature precisely calculated.
The measurands are available on two analog outputs and an optional relay output. The optional proprietary coating protects the sensor elements against corrosive and electrically conductive pollution. Field adjustment can be easily performed with push buttons.
Applications for the EE23 include:
- High-end HVAC climate and test chambers
- Process technology
- Dryers clean rooms
- Green houses
- Storage rooms
- Meteorology
Documents
Documents
- E+E EE23 Humidity / Temperature Transmitter Scaling of the Outputs (325 KB)
- E+E EE23 Humidity / Temperature Transmitter Accessories Datasheet (4.1 MB)
- E+E EE23 Humidity / Temperature Transmitter Humidity Calibration Kit Datasheet (643 KB)
- E+E EE23 Humidity / Temperature Transmitter Declaration of Conformity (325 KB)
- E+E EE23 Humidity / Temperature Transmitter Calibration Manual (1.0 MB)
- E+E EE23 Humidity / Temperature Transmitter Calibration Kit User Guide (1.0 MB)
- E+E EE23 Humidity / Temperature Transmitter Cleaning Instructions (892 KB)
- E+E EE23 Humidity / Temperature Transmitter Datasheet PDF (716 KB)
- E+E EE23 Humidity / Temperature Transmitter Manual PDF (1.3 MB)
- All possible part numbers
