E+E EE210 Humidity / Temperature Transmitter

High accuracy measurement of relative humidity and temperature in demanding climate control applications.

Starting at $591.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 8-10 weeks
Product Manual Product Specs

Features

  • Temp measuring range: -40 to 140°F or -40 to 140°C
  • RH% measuring range: 0 to 100%
  • Accuracy: ±0.2 °C (0.34°F)
  • 0 to 5V, 0 to 10V and 4-20mA outputs available
  • Wall, duct and remote probe versions
  • IP65 / NEMA 4 enclosure
  • 1, 2 or 3 line display, user configurable

The E+E EE210 Humidity and Temperature Transmitter meets the highest requirements in demanding climate control applications. Besides highly accurate measurement of relative humidity and temperature, EE210 calculates dew point temperature, absolute humidity and mixing ratio.

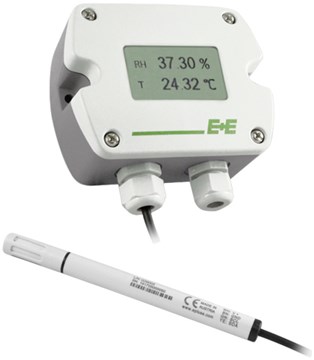

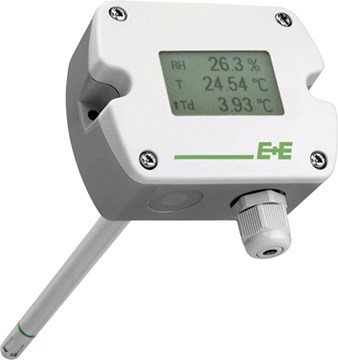

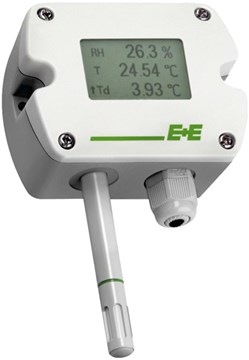

The EE210 is available as wall or duct mounted as well as with remote probe. The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation. All measured and calculated values are available on the BACnet MS/TP or Modbus RTU interface; two of the measured and calculated values are available on the analog voltage or current outputs, while up to three values can be shown simultaneously on the optional display.

Excellent performance of EE210 in polluted, aggressive environment is ensured by the combination of completely protective encapsulated measurement electronics inside the sensing probe and the long-term stable HCT01 sensor with E+E proprietary coating.

Applications for the EE210 include:

  • Agriculture
  • Stables, incubators, hatchers
  • Green houses
  • Storage rooms and cooling chambers
  • Indoor pools
  • Demanding climate control

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+E EE210P Remote Probe
E+E EE210P Remote Probe

Remote probe for the EE210 Humidity and Temperature Transmitter.

Starting at $415.00

Accessories

Please consider these optional accessories.

E+E HA010783 Protection Cap
E+E HA010783 Protection Cap

Protection cap for 12mm probe.

$13.00
E+E HA010501 Radiation Shield
E+E HA010501 Radiation Shield

Radiation shield for EE210 Outdoor (Type T13).

$340.00
E+E HA011066 USB Configuration Adapter
E+E HA011066 USB Configuration Adapter

For test and configuration with a PC, includes supply adapter.

$1,036.00
E+E V03 Power Supply
E+E V03 Power Supply

Power supply.

$267.00

This product can be used in the following applications:
