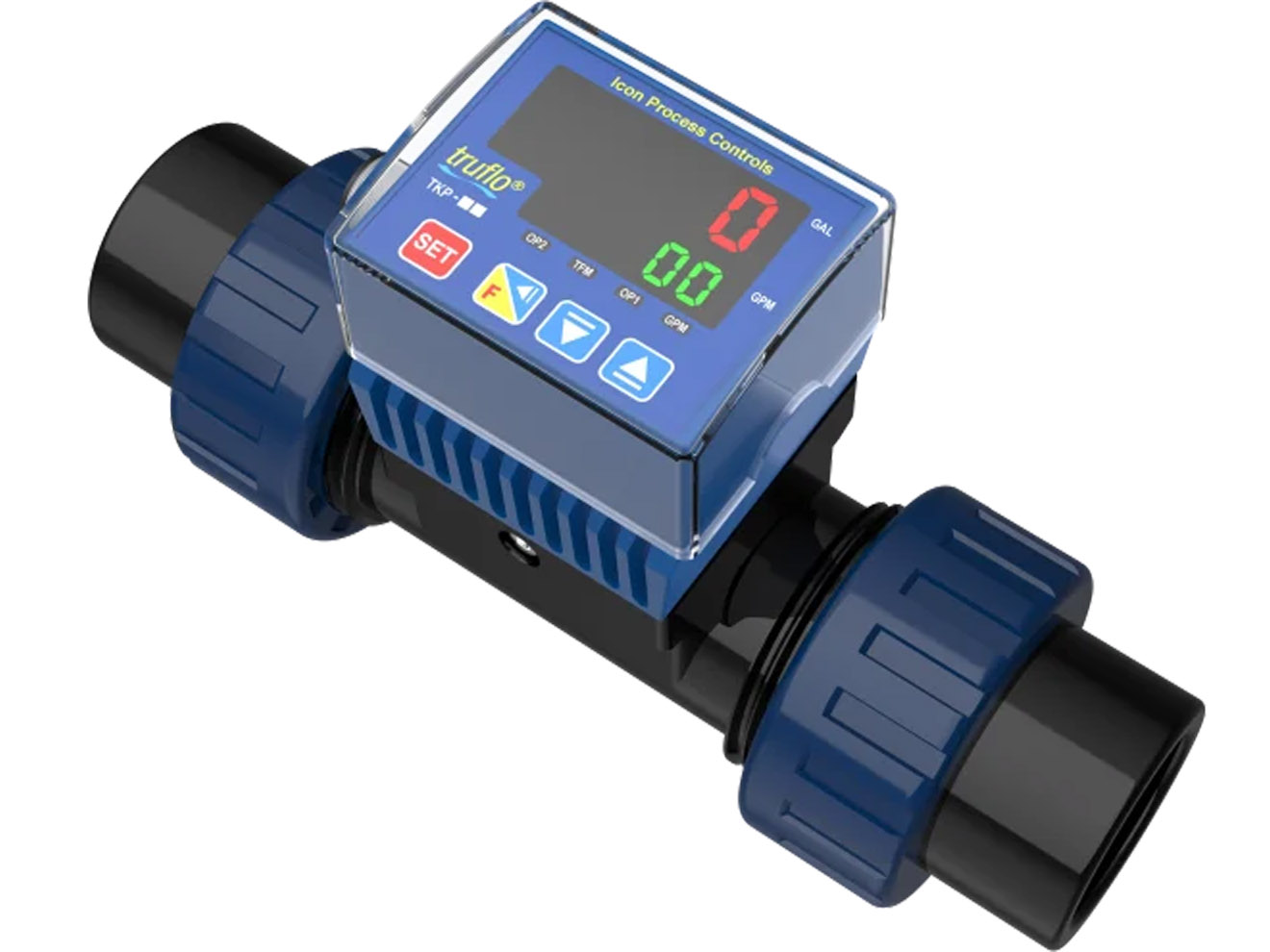

ICON Truflo TK Series Paddle Wheel Flow Meters
Designed for corrosive applications, ±0.5% accuracy, flow range: 0.3m/s to 10m/s, no programming required.
Overview
Features
- ±0.5% of FS accuracy
- 0.3m/s to 10m/s (0.98 ft/s to 32.8 ft/s) flow range
- Corrosion resistant materials PVDF/PVC/PP/316SS
- No programming
- PVC or CPVC sockets
- NPT or flanged end connectors
- Horizontal or vertical installation
- 1/2 to 4 inch size range
- Low pressure drop
Description
The ICON Truflo TK series paddle wheel flow meters provide high accuracy at a low cost and are ideal for plastic piping. The TK series consists of a rugged true union industrial design that is suitable for corrosive applications with virtually no pressure drop. The units of flow measurements are selectable between liters, gallons, and kiloliters. No mounting kits are required; it can be installed horizontally or vertically.
Available in 4 models:
- TKB: Battery powered flow/totalizer
- TKS: Flow rate with amp relay and flow rate pulse
- TKP: Flow rate/totalizer with flow rate pulse and flow totalizer pulse
- TKM: Flow rate/totalizer, 4-20mA, flow rate pulse, totalizer pulse
Documents
Spec Sheets
- ICON Truflo TKS Paddle Wheel Flow Meter Datasheet (1.1 MB)
- ICON Truflo TKP Paddle Wheel Datasheet (1.1 MB)
- ICON Truflo TKM Paddle Wheel Flow Meter Datasheet (1.1 MB)
- ICON Truflo TKB Series Paddle Wheel Flow Meter Datasheet (1.1 MB)
Manuals
- ICON Truflo TKS Paddle Wheel Flow Meter Manual (443 KB)
- ICON Truflo TKP/TKM Series Paddle Wheel Manual (2.6 MB)
- ICON Truflo TKB Paddle Wheel Flow Meter Manual (1.7 MB)
Other
Links
Accessories
Applications
This product can be used in the following applications:
