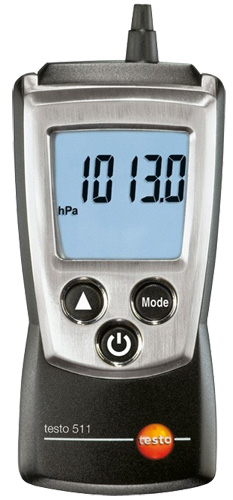

Testo 511 Digital Manometer
Pocket-sized abolute pressure measuring instrument.
Overview
Features
- Calculation of barometric air pressure
- Barometric altitude measurement
- Measuring range: 300 to 1200 hPa
- Accuracy: ±3 hPa
- Resolution: 0.1 hPa
- 8 switchable pressure units: hPa, mbar, Pa, mmH2O, mmHg, inH2O, inHg, psi
- Measuring rate: 0.5 sec
- IP40 protection rating
What's in the Box
- Protective cap
- Belt pouch
- Batteries
- Calibration protocol
Description
The Testo 511 digital manometer measures absolute pressure from 300 to 1200 hPa to an accuracy of ±3 hPa. The 511 is ideal for absolute pressure compensation during flow velocity measurements with a Pitot tube, for example. By entering the altitude above sea level, this is converted into barometric air pressure. In addition to this, a barometric pressure measurement between two points is also possible. The eight switchable pressure units offer the user highest flexibility in measurement. The 511 has an operating temperature range from 32 to 122°F. The meter operates on 2 AAA batteries with an expected battery life of 200 hrs.
