Fluke TiX500 Infrared Camera

76,800 pixels (320 x 240), -4 to 1202°F, ≤ 0.045 °C at 30 °C, built with Fluke Connect, super resolution mode.

Fluke TiX500 Infrared Camera

Fluke TiX500 Infrared Camera
Fluke TiX500 Infrared Camera
Fluke TiX500 Infrared Camera

Retired products cannot be ordered

The Fluke TiX501 PRO Thermal Camera is the recommended replacement

View Company Reviews

Part Number

FLK-TiX500 60HZ

Manufactured

By Fluke

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

-4 to 1202°F (-20 to 650°C) temp ranges
- ±2°C or 2% accuracy
320x240 (76,800 pixels)
- 640x480 (307,200 pixels) in superResolution
180° articulating lens
On-screen emissivity correction
5.7in responsive touchscreen LCD
LaserSharp auto focus
IR-Fusion technology
60Hz frame rate

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

Standard infrared lens
Ac power supply and battery charger
Two lithium-ion smart battery packs
USB cable
HDMI video cable
Bluetooth headset
Hard carrying case
Adjustable neck and hand strap

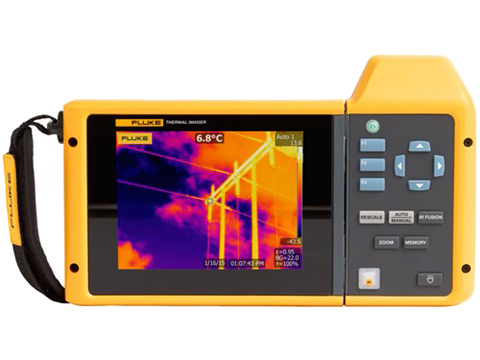

The Fluke TiX500 Infrared Camera allows you to easily navigate over, under and around objects with the 180° articulating lens and see the image before you capture it. The TiX500 provides premium in-field viewing experience with the only 5.7 inch responsive touchscreen LCD in its class. Get an in-focus image with the touch of one button. The TiX500 uses a built in laser distance meter that calculates and displays the distance to you designated target.

The Fluke TiX500 is part of the Fluke Expert Series family which offers the most flexibility of the entire Fluke infrared camera portfolio to capture spectacular images close up or from a distance. The TiX500 has a temperature range of -20 to 650°C (-4 to 1202°F) with a basic accuracy of ±2°C or 2%. The imager has a 24°H x 17°V field of view and a resolution of 320 x 240 (76,800 pixels) which can be enhanced to 640 x 480 (307,200 pixels) with SuperResolution mode.

Spec Sheets

Fluke TiX500 Infrared Camera Datasheet PDF (1.7 MB)

Manuals

Fluke TiX500 Infrared Camera Manual PDF (3.6 MB)

Software

Fluke Connect Measurements Android App

Fluke Connect Measurements Android App

Wireless cloud-based program that communicates data from your testing tool to a mobile device.

Fluke Connect Measurements iOS App

Fluke Connect Measurements iOS App

Wireless cloud-based program that communicates data from your testing tool to a mobile device.

Accessories

Please consider these optional accessories.

Fluke FLK-LNS Infrared Lenses

Fluke FLK-LNS Infrared Lenses

Wide angle or 2X telephoto IR lens.

Starting at $1,730.99

Fluke 25 Micron Macro Infrared Lens

Fluke 25 Micron Macro Infrared Lens

Smart lens with 36.1°H x 27.1°V field of view and 0.3 to 0.6in (8 to 14mm) working distance, optimal at 0.4in (10mm).

Fluke Lens Cap

Lens Cap for Fluke TiX520, TiX560, TiX500 Expert Series Infrared Cameras.

Fluke TI-Car Charger

Fluke TI-Car Charger

Thermal imager car charger.

Fluke Bluetooth Headset

Fluke Bluetooth Headset

Bluetooth headset for Fluke Infrared Cameras.

Fluke 4X Telephoto IR Lens

Fluke 4X Telephoto IR Lens

Four times magnification smart lens with 6.0°H x 4.5°V field of view and 5ft (1.5m) minimum focus distance.

Fluke FLK-TI-SBC3B Smart Battery Charger

Fluke FLK-TI-SBC3B Smart Battery Charger

Fluke Handstrap

Fluke Handstrap

Handstrap for Fluke TiX520, TiX560, TiX500 Expert Series Infrared Cameras.

Fluke HDMI Cable

Fluke HDMI Cable

HDMI cable for the Fluke TiX500, TiX520 and TiX560 series infrared cameras.

Fluke TiX5xx Neckstrap

Fluke TiX5xx Neckstrap

Neckstrap for the Fluke TiX500, TiX520 and TiX560 series infrared cameras.

Fluke Smart Battery Pack

Fluke Smart Battery Pack

Smart Battery Pack for Fluke TiX520 and TiX560 Expert Series Infrared Cameras.

Fluke Professional Tool Backpack

Fluke Professional Tool Backpack

Durable high-quality polyester, injection molded plastic bottom base, six storage compartments.

Fluke LENS/TELE2 Infrared Telephoto Lens

Fluke LENS/TELE2 Infrared Telephoto Lens

2X telephoto lens for the Ti and TiX family of thermal imagers. No calibration needed.
