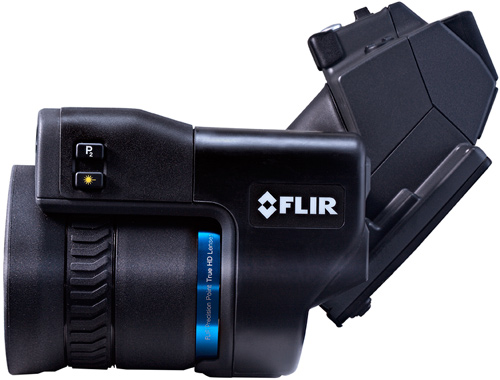

FLIR T1020 HD Thermal Imaging Camera
786,432 pixels (1024 x 768), up to 3632°F, 20mK Sensitivity & FLIR OSX high definition IR optical system.
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- -40 to 2000°C temp range
- 786,432 pixels (1024 x 768)
- 20mK Sensitivity
- MSX image enhancement
- FLIR OSX™ precision HDIR optical system
- Accuracy: ±2°C (±3.6°F) or 2%
- Continuous autofocus
- Minimum focus distance: 0.2m (0.66ft) to 0.8m (2.13ft)
- Lens choices: 12°, 28°, 45°, 3x close-up
- Unique optical path eliminates error
- 4.3" display (800 x 480 pixels)
- 2-Year full product warranty, parts & labor
- 5 years for the battery
- 10 years for the detector
- Free camera training from an Instrumart thermography engineer
What's in the Box
- Memory card
- Battery (2)
- Neck strap
- Battery charger
- Power supply (including multi-plugs)
- HDMI-HDMI cable
- USB cable
- Standard A to mini-B
- Hard transport case
- Calibration certificate
- Large eyecup
- FLIR Tools+ license card
- Lens cap
- User documentation CD-ROM
- Bluetooth headset
- Printed documentation
Description
The FLIR T1020 thermal imaging cameras are designed for thermography experts who need the highest quality without compromise. With full HD resolution, outstanding thermal sensitivity, and lenses built from the ground up, the T1020 raises the bar on performance.
The T1020 is designed to be compact, streamlined, and easy to use. FLIR's engineers focused on advancing the thermal and optics technology without adding bulk to the overall T-Series design. The result is a thermal camera that works with you. The viewfinder plus the 120° rotating optical block allow you to point the T1020 in multiple directions while maintaining a comfortable position. The glare-reducing eyecup on the high resolution viewfinder improves scanning in daylight conditions. And, the joystick and programmable buttons let you control the camera with a finger or thumb – no need to change your grip.
