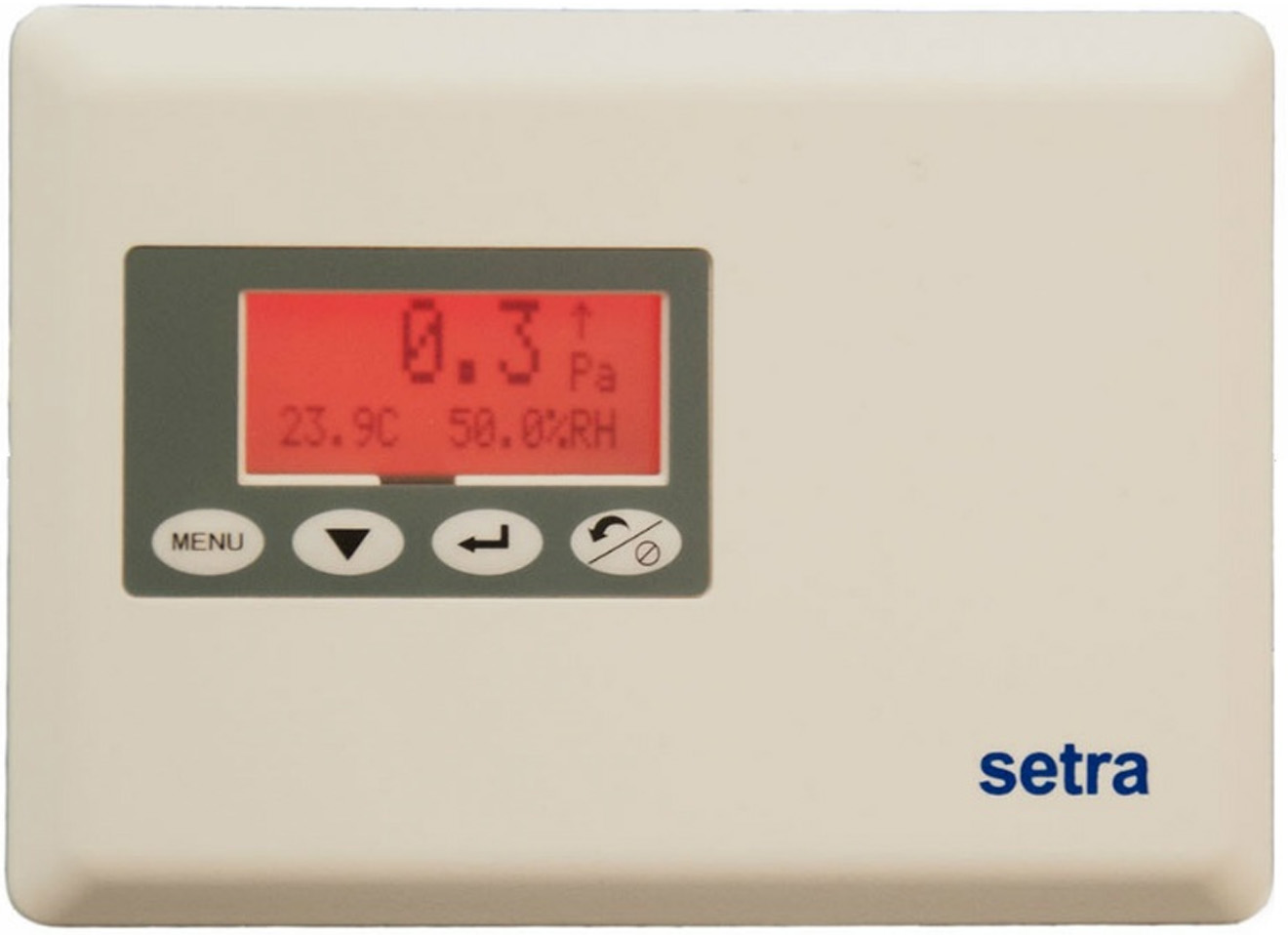

Setra SRIM2 Room Isolation Monitor
Provides visual and audible alarms for pressure, temperature, humidity and door input.
Overview
Features
- On-board sensor, choice of pressure range & accuracy
- Configurable output (0-5VDC, 0-10VDC, 4-20mA)
- 2-line, 3-color backlit LCD display
- Barbed fittings for 1/4 inch tubing
- Flush mount (51mm) & surface mount options available
- Fire retardant plastic case (UL94V-0)
- CE & RoHS certifications
Description
The Setra SRIM2 room isolation monitor is designed for use in critical environments where proper room pressurization is essential to guarantee that the space is safe and/or sterile. Setra's capacitive stainless steel design offers a very stable low differential pressure sensor, for building automation systems that do not require BACnet protocol. The SRIM2 provides audible and visual alarming for pressure, temperature and humidity to give you piece of mind in your critical environment. High and low alarm set-points for each parameter are easily configurable through a four-button membrane keypad. A digital input is also provided to show door status. The output is field configurable but it can be factory set for calibration certificates.
The three-color backlit screen allows the end user to easily view the status of the monitored space with green (normal), yellow (warning) and red (alarm) status screens. Alarms can be configured to be delayed to ensure that each SRIM2 is configured to the specific needs of the end user.
Also, save time on calibration thanks to a removable faceplate design that allows the user to remove the sensor without detaching any wiring or plumbing, attach to the Setra calibration fixture and complete the calibration in minutes.
Documents
Applications
This product can be used in the following applications:
