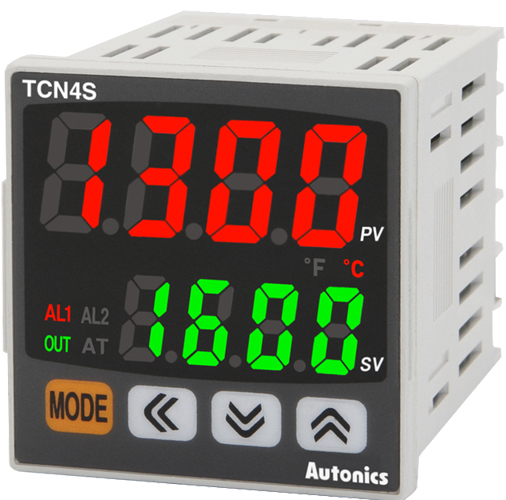

Autonics TCN Series Temperature Controllers

Economical temperature controllers with dual preset indicator display to increase user convenience.

Autonics TCN Series Temperature Controllers
Autonics TCN4S Temperature Controller

Starting at $114.00

View Company Reviews

Manufactured

By Autonics

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

Dual preset indicator displays SV & PV simultaneously
8 types of input sensors
- Thermocouple types K, J, L, T, R & S
RTD types Pt100 & Cu50
Power supply: 100-240VAC 50/60Hz or 24VAC 50/60Hz, 24-48VDC
Available in four sizes: 1/16 DIN, 1/8 DIN, 1/4 DIN and 72mm x 72mm
Compact design and large display panels for better viewing
Built-in relay output or SSRP output selectable and 2EA alarm outputs supported
SSRP output makes phase control and cycle control possible
ON/OFF and PID control
Advanced PID control algorithm and 100ms sampling speed
CE and UL approved
Approx. 38% reduced size compared with existing models (depth-based)

The Autonics TCN Series is economical temperature controllers having dual preset indicator display to increase user convenience. The series realizes ideal temperature controlling with newly developed PID control algorithm and 100ms high speed sampling; in addition, the series allows users to take advantage of economical controlling with SSRP and relay outputs. The Autonics TCN Series is also available in low voltage models for wider user options.

Single-phase, integrated heatsink type SSR, dielectric strength of 4000 VAC.

Some Models in Stock

Starting at $26.00

Part Number	Price	Available
TCN4S-24R Show Configuration	$114.00	3 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
