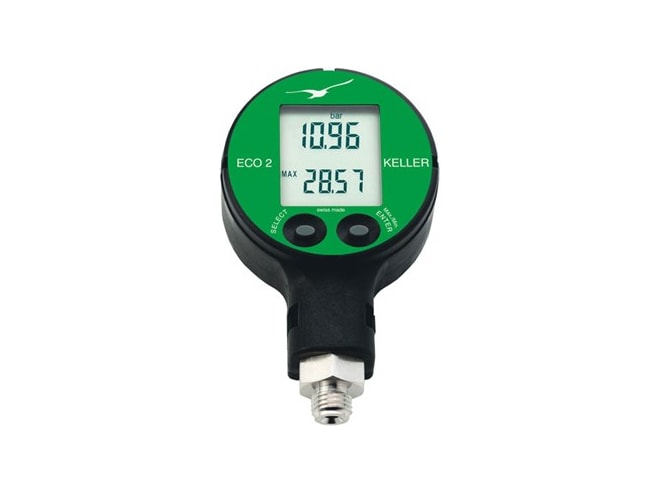

Keller ECO2 Digital Pressure Gauge

Name: Keller ECO2 Digital Pressure Gauge
Price: 179.0 USD
Availability: BackOrder

Compact and economical digital pressure gauge providing medium accuracy at high resolution and repeatability.

Starting at $179.00

View Company Reviews

Manufactured

By Keller

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 12-14 weeks

Product Manual Product Specs

Features

Piezoresistive pressure transducer
Pressure ranges:
- -1 to 30 bar or equivalent, 60 bar overpressure
- 0 to 300 bar or equivalent, 400 bar overpressure
Accuracy: ±0.5% FS
Selectable pressure units: bar, mbar/hPa, kPa, MPa, PSI, kp/cm2
IP65 rated enclosure
Measures and displays pressure 2 times per second
ZERO-function allows to set any pressure value as a zero reference
Swivel fitting allows 360° rotation
7/16”-20 UNF pressure connection with G 1/4” male adapter
3 V (type CR 2430) battery provides up to 1000 hours of continuous operation

What's in the Box

G 1/4” male adapter
3 V (type CR 24300) battery

The Keller ECO2 digital pressure gauge is a compact and economical digital gauge that provides medium accuracy at high resolution and repeatability. The piezoresistive pressure transducer as the heart of the instrument has gone through extensive pressure- and temperature tests.

The ECO2 is available in two pressure ranges: -1 to 30 bar or 0 to 300 bar, each with a standard accuracy of ±0.5% FS. Pressure can be displayed as bar, mbar/hPa, kPa, MPa, PSI, kp/cm². The pressure is measured twice per second and displayed. The top of the two-line display indicates the actual pressure while the bottom display shows the maximum or minimum pressure since the last reset.

The ECO2 has two operating keys. The left key turns on the instrument and is used to select the functions and the pressure units. The right key executes the selected function or unit. The right key is also used to switch between the Max/Min value.

The Keller ECO2 has 7/16" UNF male thread and is delivered complete with an O-ring seal swivel fitting which allows ECO 2 to be rotated 360°. Only minimal torque is needed to seal up to 300 bar. A G 1/4" male adapter is included.
