Fluke TiX520 Infrared Camera

Up to 640x480 (307,200 pixels), -20 to 850°C range, LaserSharp autofocus, & Fluke Connect.

Fluke TiX520 Infrared Camera

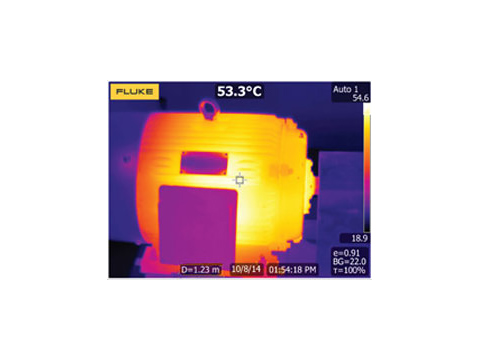

Fluke TiX520 Infrared Camera Image

Retired products cannot be ordered

The Fluke TiX501 PRO Thermal Camera is the recommended replacement

View Company Reviews

Part Number

FLK-TIX520 60HZ

Manufactured

By Fluke

Includes

FREE Ground Shipping
FREE Lifetime Tech Support
FREE Accessories Included

Product Manual Product Specs

Features

Premium Image Quality
Temperature range: -20 to 850 °C (-4 to 1562 °F)
Accuracy: ±2°C or 2%
Spatial resolution: 1.31 mRad
Resolution: 320 x 240 (76,800 pixels) and 640 x 480 (307,200 pixels) with SuperResolution Mode
Filter mode (NETD improvement): less than 0.04 °C at 30 °C target temp (40 mK)
Minimum focus distance: 15 cm
Field of view: 24° H x 17° V
Frame rate: 60 Hz
Get tough shots from any angle with a 180° rotating lens
5.7 inch responsive touchscreen LCD
LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance to your designated target with pinpoint accuracy
2x, 4x digital zoom
Streaming video via USB or WiFi
IR-Fusion® technology
Voice and text annotation
Removable micro SD memory card, on-board flash memory, save-to-USB capability, direct download via USB-to-PC connection
Connect to a large selection of wireless test and measurement tools with Fluke Connect™

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

Standard infrared lens
AC power supply & battery charger
2 Lithium ion batteries
USB cable
HDMI video cable
Rugged, hard carrying case
Adjustable neck and hand strap
Bluetooth headset
Warranty registration card
Calibration certificate
Flash drive with product manuals
SmartViewIR software

The Fluke TiX520 Infrared Camera is a professional-level thermal imager loaded with all the features needed to do the job well. The TiX520 offers premium image quality, a 180° degree rotating lens to get tough shots from any angle, LaserSharp autofocus which uses a built-in laser distance meter to focus with pinpoint accuracy, Fluke Connect which offers Bluetooth connection to a large selection of wireless test and measurement tools, and a range of accessories to customize your imager for any task.

The Fluke TiX520 is part of the Fluke Expert Series family which offers the most flexibility of the entire Fluke infrared camera portfolio to capture spectacular images close up or from a distance. The Tix520 has a temperature range of -20 to 850 °C (-4 to 1562 °F) with a basic accuracy of ±2°C or 2%. The imager has a 24° H x 17° V field of view and a resolution of 320 x 240 (76,800 pixels) which can be enhanced to 640 x 480 (307,200 pixels) with SuperResolution mode.

Images captured by the TiX520 are displayed on the large, 5.7 inch responsive touchscreen LCD. Voice and text annotations are possible. There are extensive memory options with the TiX520: a removable micro SD memory card, on-board flash memory, save-to-USB capability, or direct download via USB-to-PC connection. Streaming video is supported via USB or WiFi.
