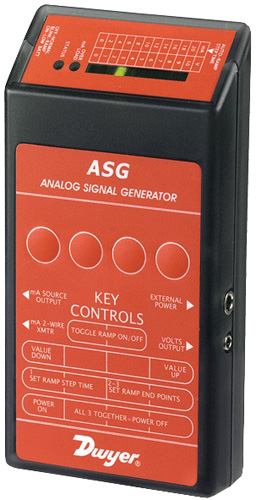

Dwyer ASG Signal Generator
Analog current and voltage signal generator includes ramp function and bar graph LED.
- ASG
Overview
Features
- Impedance
- Voltage: 1000Ω min
- Current: 300Ω max
- Output: 0 to 20 mA (2 mA increments); 0-10 VDC (1 VDC increments)
- Resolution: 1 mA (current); 1 VDC (voltage)
- Large Backlit Display
- Timed Ramp Function
- Process Display Configuration
- Transmitter Calibration
- Ramping Time Intervals: 1 to 20 sec (1 sec increments)
- Auto Power Off
- 9 V alkaline battery, user replaceable or 120 VAC
- Electrical Connections: 6 ft (1.8 m) with alligator clips
What's in the Box
- 6 ft (1.8 m) test leads with alligator clips
- 9 V alkaline battery
- 20 VAC plug-in power supply
- Carrying case
- Instruction manual
Description
The Dwyer ASG analog signal generator is a pocket-sized instrument ideal tool for troubleshooting transmitters, transducers, motors and actuators. The unit generates a 0 to 10 VDC signal in increments of 1 volt or a 4 to 20 mA signal in increments of 2 mA. An LED bar graph visually indicates analog signal level. The model ASG will also continuously ramp to user defined maximum and minimum values with user defined ramp interval timing.
