Overview

Features

  • Measurement range: 0 to 5 VDC
  • Accuracy: ±10mV ±0.3% of reading
  • Resolution: ±1.221 millivolts
  • Input impedance: 1 Megohms
  • 14 cm (5.5 inch) cable length
  • Plug-in modular connector for easy interface
  • Measurement averaging over logging interval enhances accuracy
  • Represents one data input channel

Description

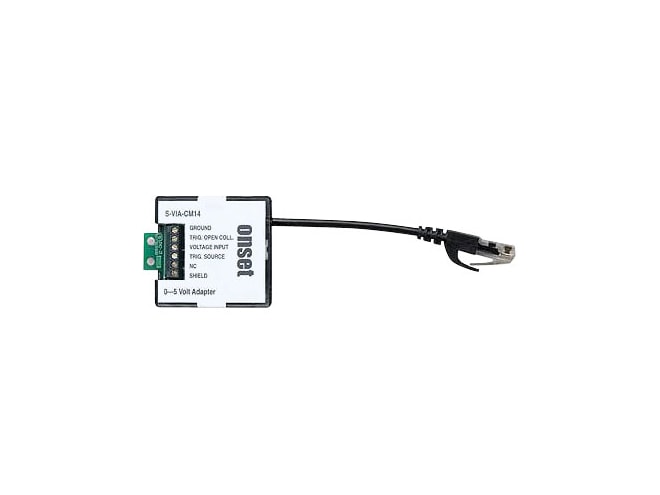

The HOBO S-VIA-CM14 Voltage Input Adapter Sensor interfaces with sensors providing 0 to 5 VDC signals to act as a smart sensor with compatible data loggers. This adapter features both a non-switched input and a battery-saving switched input that extends the life of external batteries. It also provides a trigger signal for controlling power to attached external sensors, while offering digital filtering which improves measurement accuracy with 32 readings/sample.
