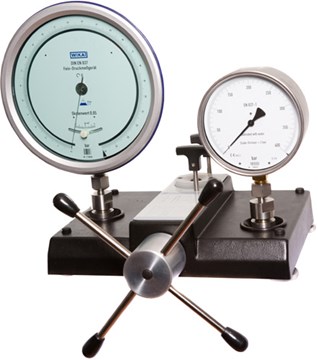

WIKA CPP1200-X Comparison Pump

Hydraulic comparison test pump generates pressure to 1200 bar.

Starting at $3,356.36

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 3-4 weeks
Product Manual Product Specs

Features

  • Simple hydraulic test pressure generation for calibrations either on-site, in the laboratory or in the workshop
  • For the testing, adjustment and calibration of all types of pressure measuring instruments
  • Hydraulic pressure generation up to 1,200 bar
  • Precisely adjustable dual-area spindle pump for filling, pressure generation and fine adjustment of pressure
  • Freely rotating test connections (i.e. measuring instruments can be orientated)
  • Proven technology
  • Compact dimensions, low weight

What's in the Box

  • Instrument base
  • Dual-area spindle pump
  • BSP Adapter set
  • Tool & maintenance kit
  • Operating instructions

The DH-Budenberg CPP1200 is a hydraulic comparison test pump for generating pressure up to 1,200 bar. Rugged yet compact in size, the CPP1200 is designed for the testing, adjustment and calibration of mechanical and electronic pressure measuring instruments through comparative measurements. These units can be used in the laboratory or workshop, or on site at the measuring point.

The DH-Budenberg CPP1200 includes an integrated, dual-area spindle pump with switching valves which enables rapid filling of the test system and smooth pressure generation. At the same time, the precisely adjustable spindle pump also serves for pressure fine adjustment. By connecting the test item and a sufficiently accurate reference pressure measuring instrument to the test pump, the same pressure will act on both measuring instruments. By comparison of the two measured values at any given pressure value, a check of the accuracy and/or adjustment of the pressure measuring instrument under test can be carried out.

The two test connections are equipped with G ½ female loose union connections. Corresponding thread adapters are available for the calibration of instruments with different connection threads.

DH-Budenberg Carry Case
DH-Budenberg Carry Case

Carry case for CPB3800 and CPP1200-X instrument base.

Call for pricing
DH-Budenberg Adapter Sets
DH-Budenberg Adapter Sets

Test connection adapters for DH-Budenberg CPB3800 deadweight tester and CPP1200-X comparison pump.

Select options for pricing
DH-Budenberg 90° Angle Connection
DH-Budenberg 90° Angle Connection

90° angle connection for test items with back mounting connection.

Call for pricing
WIKA CPP Series Sealing Gasket and O-Ring
WIKA CPP Series Sealing Gasket and O-Ring

Set of spare sealing gaskets and o-rings for the WIKA CPP120-X, CPP1200-X, and CPP4000-X pumps.

Starting at $166.11
WIKA CPP Series Hydraulic Fluid
WIKA CPP Series Hydraulic Fluid

Mineral oil-based hydraulic fluid VG22 in plastic bottle for use with WIKA CPP Series pumps.

Starting at $121.20
WIKA CPP Series Tool Kit
WIKA CPP Series Tool Kit

Kit with spanners, adapters, seals, pointer punch, and punter puller for WIKA CPP120-X and CPP1200-X pumps.

Starting at $1,074.28
WIKA CPP Series 90° Angle Connection
WIKA CPP Series 90° Angle Connection

90° angle connection for test specimens with back mounting connection, for use with WIKA CPP Series pumps.

Starting at $395.00
WIKA CPP1200-X Adapter Set
WIKA CPP1200-X Adapter Set

BSP, NPT, or metric adapter set for the WIKA CPP1200-X comparison pump.

Starting at $637.50
WIKA CPP Series Threaded Adapter
WIKA CPP Series Threaded Adapter

Multiple sizes of adapter with sealing cone or o-ring for WIKA CPP Series pumps.

Starting at $441.51
WIKA CPP1200-X Single Gauge Stand
WIKA CPP1200-X Single Gauge Stand

G 3/4 female on G 1/2 female rotating single gauge stand for the WIKA CPP1200-X comparison pump.

$416.01

This product can be used in the following applications:

Here's how some of our customers use this product...

Calibrating Pressure Sensors and Gauges in the Field

The Background: The customer, an oilfield contractor, needs the ability to calibrate pressure sensors and gauges in the field.

The Problem: The calibrator will be subject to rough handling in the field and needs to be both highly accurate and easy to operate.

The Solution: The DH-Budenberg CPP1200 comparator pump combined with the Wika CPG1500 reference gauge makes a highly accurate, portable pressure standard. The CPP1200 has two output ports. Depending on the range of pressure calibration needed, the customer can cover a wide range of pressures using just a few gauges . As the reference standard, only the CPG1500 needs periodic recalibration.
